Soco Non-Ferrous Saws

NON-FERROUS TUBE CUTTING

The new SOCO Saw Tube and Bar Cutting Line incorporates the newest technology with unparalleled functions. This revolutionary innovation brings you the unique loader ( MBLL6 ) and unloader ( CL ) – saving 70% labor and material changeover time (SOCO Global Patent). With capacity up to 80mm in solid bar and tube cutting, it is guaranteed to bring you continuous savings and production.

SOCO Manually Operated Type F Cold Saw

Manually Operated F TypeMC-275AC / MC-315AC / MC-370AC

Burr Free & Less Dust :
Self Centering vise with two sides clamping to solidly hold the work piece and ensure a smooth and burr free cutting surface. Low operation noise and low pollution working environment

Fast, Precision & Clean:
Compared to Band Sawing, Circular Sawing is much more economical, faster in cutting, more precise, and cleaner

Mitre Cutting:
The Saw Head can be swiveled either direction at various degrees for mitre cutting ( Circular Saw ), providing excellent precision in angle accuracy

Cooling System:
Equipped with electrical cooling pump and a large coolant tank to ensure excellent working temperature on the Saw Blade and the Work Piece, as well as a smooth cutting surface and longer blade life

SOCO Air Clamping Vise PV Type Cold Saw

Burr Free & Less Dust :
Self Centering vise with two sides clamping to solidly hold the work piece and ensure a smooth and burr free cutting surface. Low operation noise and low pollution working environment

Fast, Precision & Clean:
Compared to Band Sawing, Circular Sawing is much more economical, faster in cutting, more precise, and cleaner

Mitre Cutting:
The Saw Head can be swiveled either direction at various degrees for mitre cutting ( Circular Saw ), providing excellent precision in angle accuracy

Cooling System:
Equipped with electrical cooling pump and a large coolant tank to ensure excellent working temperature on the Saw Blade and the Work Piece, as well as a smooth cutting surface and longer blade life

SOCO Auto Cut & Air Clamping Vice AC Type Cold Saw

Burr Free & Less Dust :
Self Centering vise with two sides clamping to solidly hold the work piece and ensure a smooth and burr free cutting surface. Low operation noise and low pollution working environment

Fast, Precision & Clean:
Compared to Band Sawing, Circular Sawing is much more economical, faster in cutting, more precise, and cleaner

Mitre Cutting:
The Saw Head can be swiveled either direction at various degrees for mitre cutting ( Circular Saw ), providing excellent precision in angle accuracy

Cooling System:
Equipped with electrical cooling pump and a large coolant tank to ensure excellent working temperature on the Saw Blade and the Work Piece, as well as a smooth cutting surface and longer blade life.

Semi Automatic Tube-Bar Cutting NC Type

Semi Automatic Tube – Bar Cutting NC Type

Savings
25mm + a ( V type Clamping Jaw ) – The Shortest Crop Length of any machine available in the market ( SOCO Global Patent – SN Models )
With the shortest crop lengths, the FA-111NC-SN models bring maximum material savings and more production
Performance
Vertical Slide for maximum cutting power and rigidity
Standard with Speed Inverter for speeds of 22 ~ 108RPM
Electric Servo Feeding for +/- 0.05 ~ 0.1mm Cutting Length precision (per stroke)
Capacity up to 114mm in Tube and 75mm in Solid Bars
Superior Gear Box design for maximum machine life and performance
Flexible Gripper Feeding + Floating Carriage allow for maximum feeding precision even in material which is not perfectly straight
Cutting Examples
– O.D. 50mm solid bar, L = 150mm, cycle time is 28sec
– O.D. 75mm steel tube, L = 139mm, cycle time is 11.5sec

Software
Intuitive and User Friendly Interface with Touch Screen system
Ability to program multiple cutting lengths per bar
Large file storage system
Safety Covers ( optional ) for maximum operator protection and comfort
Ability to use Flat and Bundle clamps for multiple tubes cutting

SOCO DR Type Semi Automatic Cold Saw

FEATURES

Digital counter for automatic operation ( Cutting length / Quantity set up / Counter )

Display of Movements on Control Panel for Easy troubleshooting
Standard with Speed Inverter for speeds of 22 ~ 108 RPM
Fully automatic hydraulic system
Feeding lengths up to 3 strokes X 1000 mm
Patented Gearbox for both Heavy and Light Cutting of Tubes and Bars
Vertical sliding saw head ensures stable and precise cutting
Backlash eliminating device prolongs the life of saw blade
Counter Balance System for maximum stability through the entire cut
Patented floating feeding carriage for superior tube cutting length accuracy and smooth material handling
Rigid Clamping vise provides secure material holding
Automatic lubrication system maintains good work performance
Circulating cooling system results in smooth cutting surfaces and longer blade life
Electronic saw blade protection cover for safety operation
Built-in chips tray for convenient cleaning and maintenance

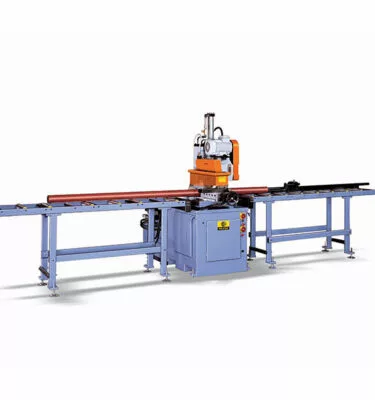

SOCO AC Type (FA Series) Cold Saw

Semi-Automatic Operation tube cutting machine
Straight or Angle tube cutting machine ( Circular Saw )
Air Lifting System for angle cut setting
Vertical sliding saw head ensures stable and precise cutting ( Tube Sawing Machines )
Backlash eliminating device prolongs the life of saw blade
Counter Balance System for maximum stability through the entire cut
Patented Floating Feeding Carriage for superior cutting length accuracy and smooth
material handling
Rigid and reliable clamping vise provides secure material holding
Automatic lubrication system maintains good work performance
Circulating cooling system results in smooth cutting surfaces and longer blade life
Electronic Saw blade protection cover for safety operation
Built-in chips tray for convenient cleaning and maintenance
