Big Machine, Big Improvements

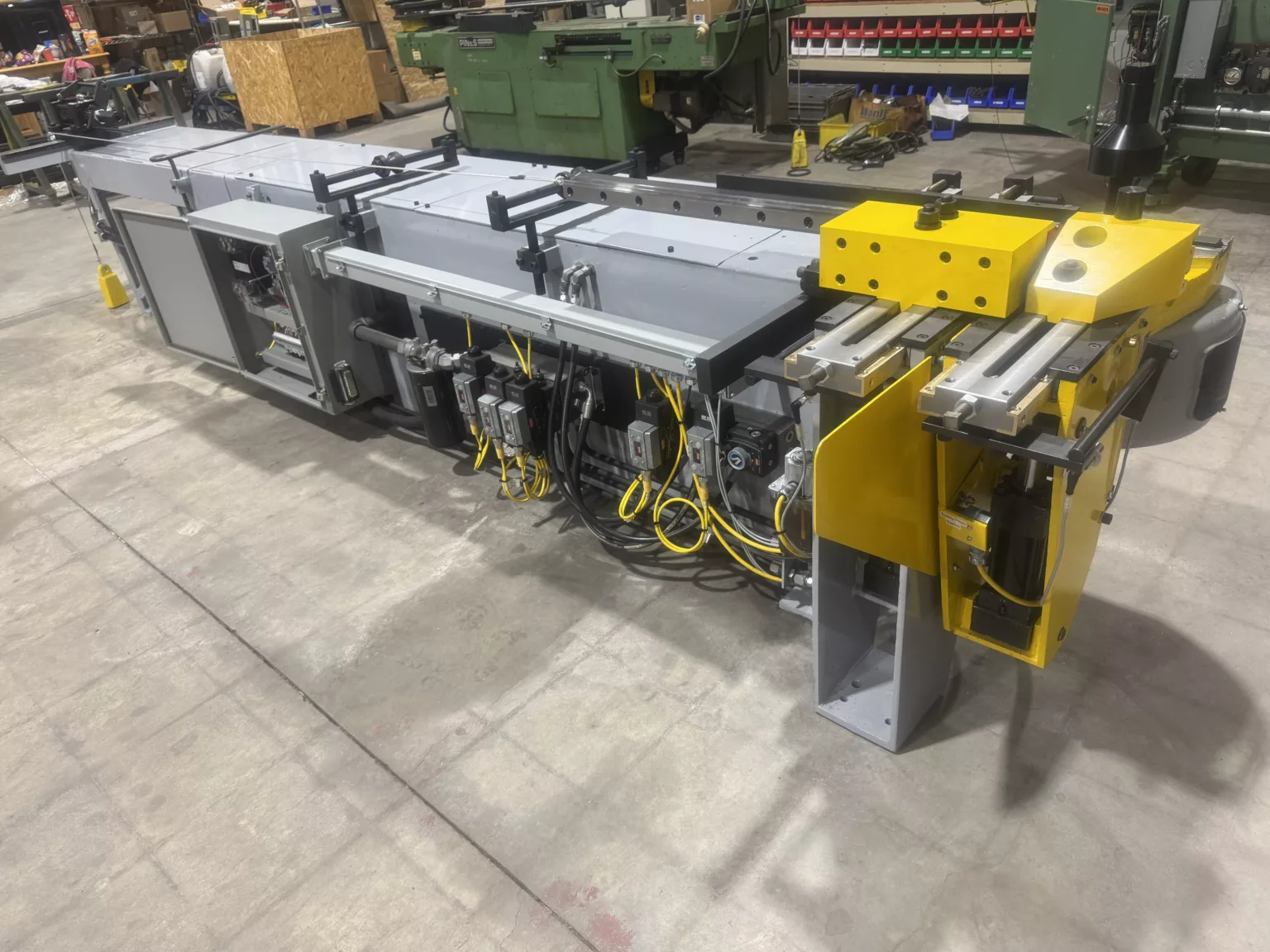

An anecdote about this rebuild. This one is fiction. Our customer called to inquire about refurbishing their Pines #2. It was a well-worn machine with years of use, but the major components were still good.
Our team performed a comprehensive tube bender evaluation, and the refurbishment included a new Comptrol Controller, Refurbished Stationary and Swing Arm, New Hydraulic and Electrical components throughout, and a thorough clean and paint job to give this machine a new lease on life.
New Comptrol Digital Controller
Bender is upgraded with a COMPTROL digital controller. The controller is by Sierra Controllers. See https://www.benderparts.com/new-equipment/tube-bender-controller/ for detailed information. The controller has a quick disconnect to the main electrical box. Specifications are listed below.
- Intuitive menu-driven part & setup screens
- Each bend parameter can be programmed specifically for each bend
- Alphanumeric part names
- Massive Part Storage & bends per part
- Integrated manual & automatic controls
- Programmable mandrel oscillation
- Early Mandrel Extraction
- (3) Return Modes (manual, semi-automatic, & automatic)
- Pressure Die Assist (Boost) delay (If bender is equipped hydraulically)
- Bend Arm deceleration (If bender is equipped hydraulically)
- Automatic parts counter
- Status line for the run mode
- Display of Bend arm angle & current part bend data
- Easy enabling & disabling of bender devices
- Easy toggling of bender inputs
- Two mandrel extractor sequences (Normal & Inhibited)
- Automatic Mandrel lube intervals (If bender is equipped)
- (4) Line x (20) character Vacuum Fluorescent Display
- Controller board covered by (2) year warranty
“The greatest improvement on this machine is the linear rail and pressure die holder with the outboard support because I can move it in and out with one hand.”
Richie, Kottler Metal Products, Ohio
Swing Arm and Stationary Arm Refurbished
The swing arm & stationary arm slides are replaced with new Steel Slides w/Bronze wear strips attached including back up bolts and nuts. The wear strips, clamp bars, gibs, rod ends, bushings in toggle links, pins, snap rings & grease zirks replaced with new. New set of slide back up blocks (2 each) 1”, 2”, 3”, 4”, 5”.
Swing Arm:
- Removed & inspected
- Repair spindle keyway (If necessary)
- Skim cut bend die mounting surface / Repair Bend Die Keyway (If necessary)
- Remove & replace New Timken cup & cone bearings
- New spanner nuts
- New spindle key
- New fasteners
- New Bend Die Key
- New Inner Locating Ring
- Use Your Existing Drive Sprocket
- New Die Stud & Larger Die Stud Nut
Stationary Arm:
- Inspected
- Replace fasteners
Hydraulic Updates
Hydraulic cylinders:
- New Bend Cylinder 5” Bore x 19” Stroke (Peninsular)
- New Clamp & Pressure Die Cylinders (Peninsular)
- New Mandrel Extractor Cylinder (Peninsular)
Hydraulics All New:
- New Manifold
- New Vickers PA5 Directional Bend Valve & Flow Control
- New Vickers PA5 Directional Clamp Valve & Flow Control
- New Vickers PA5 Directional Pressure Valve & Flow Control
- New Vickers PA5 Directional Mandrel Valve

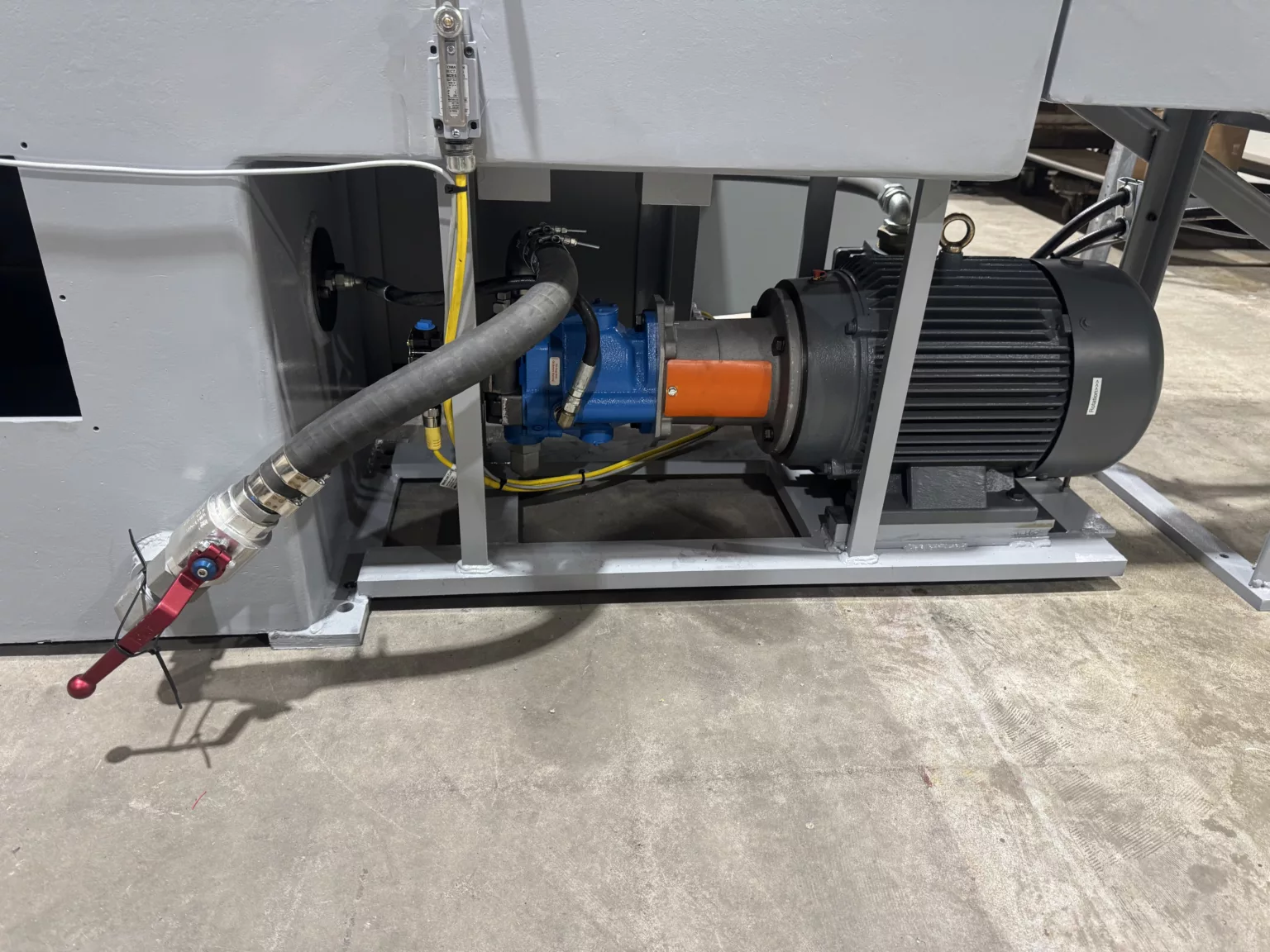

- New Vickers Piston Pump
- The suction strainer, oil sight glass & pressure gauges are replaced
- New hydraulic hoses & fitting
New gaskets on side oil tank covers
New Lube USA electronic slide lubricator. Includes new junctions, meters, line, ferrules, & fittings

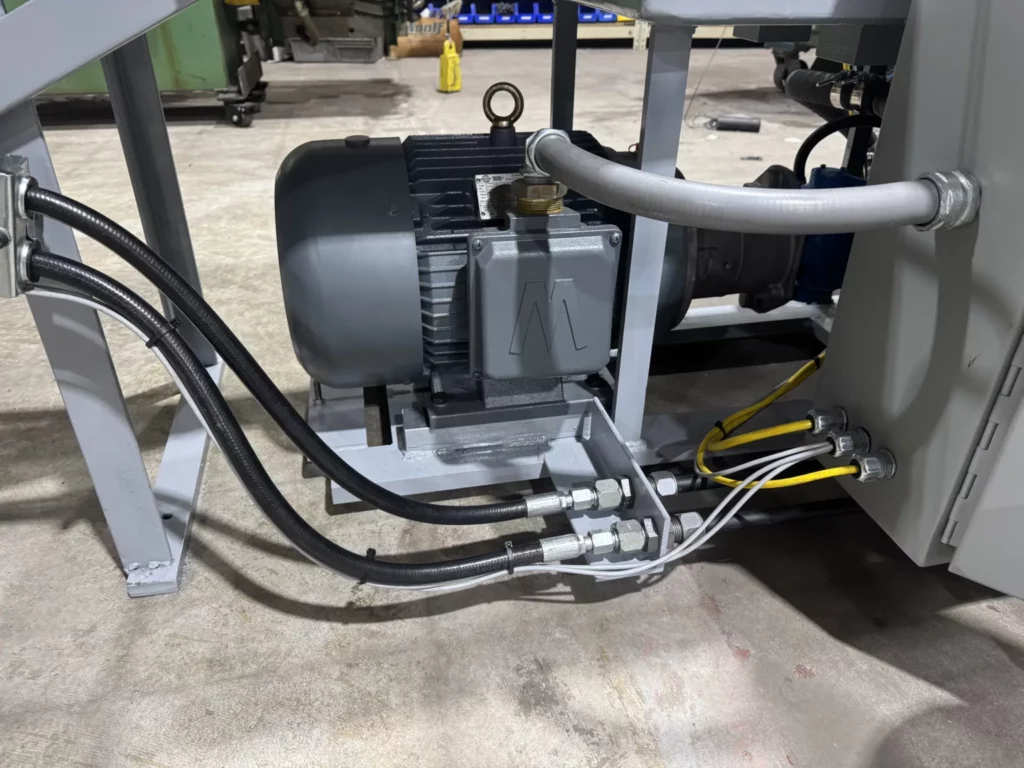

New main electric motor (TEFC) Totally Enclosed Fan Cooled C-Faced Adapted w/New Coupling

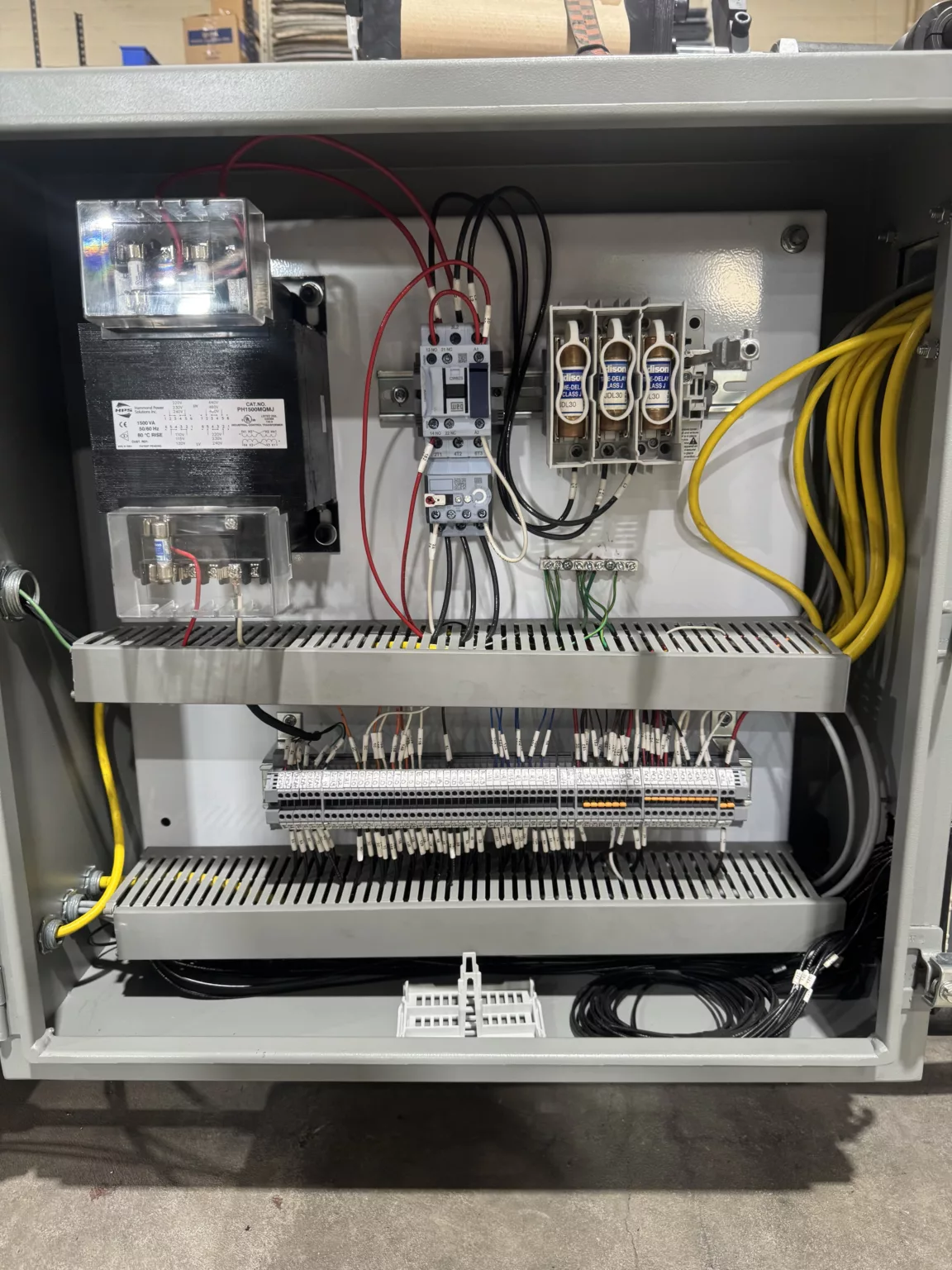

Electrical Updates
- New Main Electrical box (NEED VOLTAGE)
- New fused disconnect switch
- New motor starter
- New transformer
- New wiring
- New switches
- New fittings
- New Fuses
- Spare Controller Keypad – Included
Additional Updates
- New Linear Rail & Bearing w/ New Master Bar Assembly
- New Clamp Die holder assembly. Adjustable t-slot face style
- Machine cleaned, sanded & painted. Color YOUR CHOICE.
- New Rear Sprocket pin & bushing (Use existing Sprocket)
- New #160 Front & Rear bend chain & connecting links
- Use Existing Wiper Die Holder Assembly
- Machine cycled & tested. Sample material & a set of tooling are required to run off the bender to be provided by the customer.
