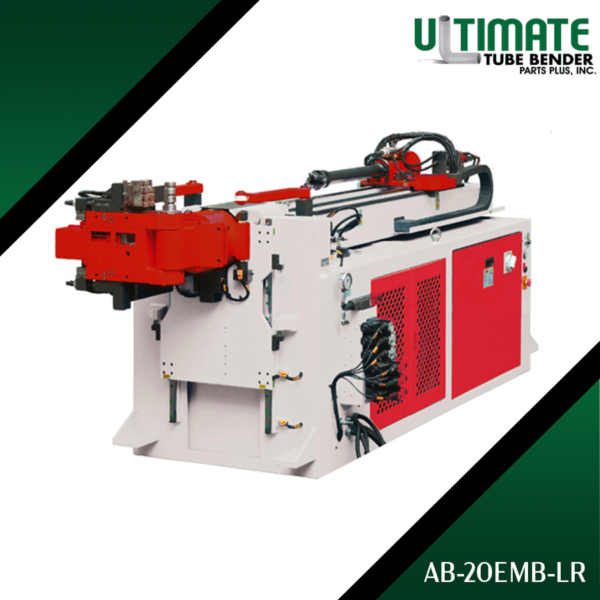

Alpine 20EMB-LR All Electric Tube Bender
The Alpine 20EMB-LR brings cutting-edge all-electric bending technology to the forefront, offering unparalleled precision for tubes up to 20mm. Designed for industries demanding high precision and environmental efficiency, this bender utilizes advanced electric servo systems to deliver accurate, repeatable bends, making it perfect for automotive, aerospace, and HVAC applications. Its eco-friendly operation marks a significant step forward in sustainable manufacturing, offering a powerful, efficient, and cleaner alternative to traditional bending processes.
Key Features:
- Advanced Electric Servos: Deliver precise control and accuracy in every bend, ensuring high-quality outcomes for all your bending needs.
- Eco-Friendly Efficiency: Significantly reduces energy consumption and eliminates the need for hydraulic fluids, supporting your green manufacturing goals.
- User-Friendly Interface: Simplifies the bending process, allowing for quick setup and operation, enhancing productivity and reducing downtime.
Brand:
Alpine
Model:
20EMB-LR
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Applications:
Ideal for a wide array of industrial applications, the Alpine 20EMB-LR excels in sectors requiring precise tube bending without compromising on environmental sustainability. Its advanced capabilities make it a prime choice for automotive, aerospace, and HVAC systems, where precision and efficiency are paramount.
Alpine 20EMB-LR: Precision and Sustainability in Every Bend
Adopt the Alpine 20EMB-LR for your tube bending processes and benefit from the best in precision and eco-friendly technology. This all-electric bender is a testament to Alpine’s commitment to innovative, sustainable manufacturing solutions, setting new industry standards in efficiency and environmental responsibility.
Standard Machine and Accessories
- Master IV Controller with 15″ color LCD Touch Screen for easy programming.
- Supports Right and Left Hand Bending and Multi Stack Tooling.
- Patented Direct Drive A/C Servo Motor Bending Head reduces interference.
- Includes tools for measuring push or roll bending radius.
- Unlimited Program Storage, Metric and Inch setting, and XYZ to YBC conversion.
- Pressure Die assist (booster not included in the 30 model) and Independent programmable speeds for Y, B, and C axes.
- Features Air Cooling System, Automatic Slide-way Lubrication, Foot Pedal Cycle Start, Wiper Die Bracket, and 3 Mandrel Rods.
- Comes with an Operation and Maintenance Manual, Tool Box with Tools, customizable Electric Specs (3 phase 208V, 220V, 480V), and a Safety Mat.
Upgrade Options
- AMRU (Anticipate Mandrel Retraction Unit) and AML (Auto Mandrel Lubrication) for enhanced performance.
- Dynamic Visual Simulation Software for collision protection.
- Options for Safety Mat Connection, CE Mark, Safety Scanner, and a Free Standing Pedestal to replace the foot pedal.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | More Info |
| 15AEMB-LR | 15 x 1.5 | 0.59 x 0.059 | Oct-55 | 0.393 - 2.16 | 1000 | 39.37 | 2700 x 800 x 1400 | 106.3 x 31.4 x 55.1 | 1400 | 2080 | More Info |
| 20EMB-LR | 20 x 1.5 | 0.78 x 0.059 | Oct-70 | 0.39 x 2.75 | 1500 | 59.05 | 3100 x 850 x 1400 | 122.0 x 33.5 x 55.1 | 1500 | 3300 | More Info |
| 30AEMR-LR | 30 x 2.0 | 1.18 x 0.079 | 15 - 90 | 0.59 - 3.541 | 2800 | 110.2 | 4400 x 850 x 1500 | 17.32 x 33.4 x 59.0 | 1400 | 3080 | More Info |
| 45AEMR-LR | 45 x 2.0 | 1.77 x 0.078 | 30 -150 | 1.18 - 5.9 | 3000 | 118.1 | 5200 x 1070 x 1650 | 204.7 x 42.1 x 64.9 | 4400 | 9680 | More Info |
| 75AEMR-LR | 76.2 x 2.0 | 3.0 x 0.079 | 40 - 230 | 1.57 - 9.05 | 3000 | 118.1 | 5000 x 1500 x 2000 | 216.5 x 59.1 x 78.74 | 7000 | 15400 | More Info |
| 50AEMR-RBE | 50.8 x 1.8 | 2.0 x 0.070 | 30 - 150 | 1.18 - 5.9 | 3200 | 125.9 | 5500 x 1500 x 1520 | 216 x 59.8 x 59 | 3100 | 6820 | More Info |
| 80AEMR-RBE | 80 x 2.0 | 3.15 x 0.079 | 40 - 230 | 1.57 - 9.05 | 4000 | 157.4 | 5000 x 1500 x 1800 | 216.5 x 59.1 x 78.74 | 7000 | 15400 | More Info |
| 100AEMR-RBE | 100 x 3.6 | 4.0 x 0.140 | 30 - 300 | 1.18 - 11.8 | 4000 | 157.4 | 7100 x 1750 x 1820 | 279.5 x 68.9 x 71.65 | 8000 | 17600 | More Info |
