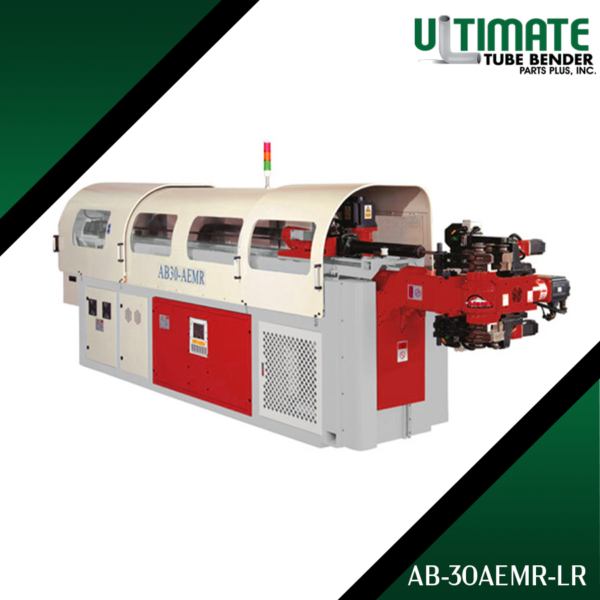

Alpine 30AEMR-LR All Electric Tube Bender
The Alpine 30AEMR-LR represents the pinnacle of large-diameter, all-electric tube bending technology. Designed to meet the needs of industries requiring the bending of tubes up to 30mm, this machine offers a combination of precision, efficiency, and eco-conscious operation that sets a new standard in the field. Equipped with advanced electric servo motors, the 30AEMR-LR delivers precise, repeatable bends, making it an indispensable asset for sectors such as construction and heavy machinery, where the demand for large diameter and precise bends is paramount.
Key Features:
- Large Diameter Precision: Specializes in accurate bending for tubes up to 30mm, catering to a broad range of industrial applications.
- Eco-Friendly Operation: Emphasizes sustainability by optimizing energy use and eliminating hydraulic fluids, aligning with green manufacturing practices.
- Advanced Control System: Features an intuitive, user-friendly interface that streamlines the bending process, facilitating ease of use and efficiency.
Brand:
Alpine
Model:
30AEMR-LR
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Applications:
The Alpine 30AEMR-LR is particularly suited for construction, heavy machinery, and other applications demanding large diameter precision bending. Its all-electric design and operational efficiency make it a valuable tool for advancing quality and sustainability in manufacturing.
Alpine 30AEMR-LR: Leading the Way in Large-Diameter Bending
Incorporate the Alpine 30AEMR-LR into your operations for unmatched bending performance that adheres to modern environmental standards. This all-electric tube bender is an investment in achieving excellence in large-diameter tube bending while embracing a commitment to sustainability.
Standard Machine and Accessories
- Master IV Controller with 15″ color LCD Touch Screen for easy programming.
- Supports Right and Left Hand Bending and Multi Stack Tooling.
- Patented Direct Drive A/C Servo Motor Bending Head reduces interference.
- Includes tools for measuring push or roll bending radius.
- Unlimited Program Storage, Metric and Inch setting, and XYZ to YBC conversion.
- Pressure Die assist (booster not included in the 30 model) and Independent programmable speeds for Y, B, and C axes.
- Features Air Cooling System, Automatic Slide-way Lubrication, Foot Pedal Cycle Start, Wiper Die Bracket, and 3 Mandrel Rods.
- Comes with an Operation and Maintenance Manual, Tool Box with Tools, customizable Electric Specs (3 phase 208V, 220V, 480V), and a Safety Mat.
Upgrade Options
- AMRU (Anticipate Mandrel Retraction Unit) and AML (Auto Mandrel Lubrication) for enhanced performance.
- Dynamic Visual Simulation Software for collision protection.
- Options for Safety Mat Connection, CE Mark, Safety Scanner, and a Free Standing Pedestal to replace the foot pedal.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | More Info |
| 15AEMB-LR | 15 x 1.5 | 0.59 x 0.059 | Oct-55 | 0.393 - 2.16 | 1000 | 39.37 | 2700 x 800 x 1400 | 106.3 x 31.4 x 55.1 | 1400 | 2080 | More Info |
| 20EMB-LR | 20 x 1.5 | 0.78 x 0.059 | Oct-70 | 0.39 x 2.75 | 1500 | 59.05 | 3100 x 850 x 1400 | 122.0 x 33.5 x 55.1 | 1500 | 3300 | More Info |
| 30AEMR-LR | 30 x 2.0 | 1.18 x 0.079 | 15 - 90 | 0.59 - 3.541 | 2800 | 110.2 | 4400 x 850 x 1500 | 17.32 x 33.4 x 59.0 | 1400 | 3080 | More Info |
| 45AEMR-LR | 45 x 2.0 | 1.77 x 0.078 | 30 -150 | 1.18 - 5.9 | 3000 | 118.1 | 5200 x 1070 x 1650 | 204.7 x 42.1 x 64.9 | 4400 | 9680 | More Info |
| 75AEMR-LR | 76.2 x 2.0 | 3.0 x 0.079 | 40 - 230 | 1.57 - 9.05 | 3000 | 118.1 | 5000 x 1500 x 2000 | 216.5 x 59.1 x 78.74 | 7000 | 15400 | More Info |
| 50AEMR-RBE | 50.8 x 1.8 | 2.0 x 0.070 | 30 - 150 | 1.18 - 5.9 | 3200 | 125.9 | 5500 x 1500 x 1520 | 216 x 59.8 x 59 | 3100 | 6820 | More Info |
| 80AEMR-RBE | 80 x 2.0 | 3.15 x 0.079 | 40 - 230 | 1.57 - 9.05 | 4000 | 157.4 | 5000 x 1500 x 1800 | 216.5 x 59.1 x 78.74 | 7000 | 15400 | More Info |
| 100AEMR-RBE | 100 x 3.6 | 4.0 x 0.140 | 30 - 300 | 1.18 - 11.8 | 4000 | 157.4 | 7100 x 1750 x 1820 | 279.5 x 68.9 x 71.65 | 8000 | 17600 | More Info |
