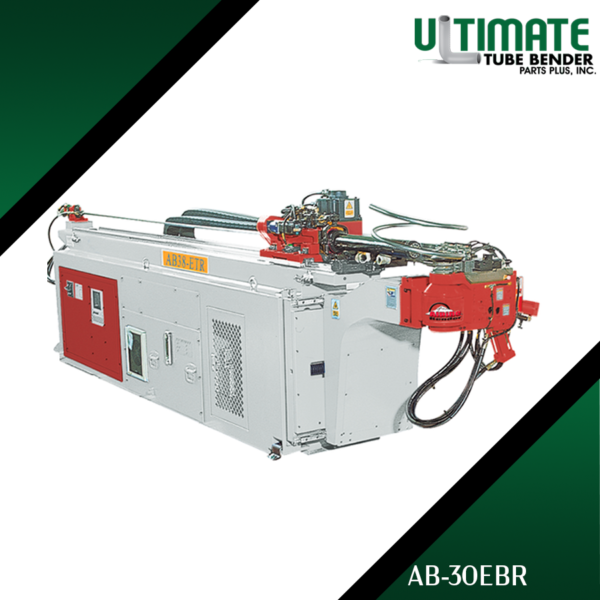

Alpine 30EBR Electric Hybrid Tube Bender
The Alpine 30EBR revolutionizes tube bending with its advanced double stack technology, providing unparalleled precision and speed for tubes up to 30mm. This model is essential for industries looking to streamline complex bending operations while maintaining high standards of quality.
Key Features:
Double Stack Flexibility: Allows complex bending operations to be performed quickly and accurately.
Hybrid Technology: Delivers the perfect balance of electric control and hydraulic power.
High-Throughput Design: Ensures rapid production capabilities without sacrificing quality.
Energy-Saving Features: Reduces electricity consumption, supporting sustainable manufacturing goals.
Brand:
Alpine
Model:
30EBR
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Features a Master IV Controller with intuitive touchscreen operation.
- Right and left-hand bending capabilities for maximum versatility.
- Enhanced with automatic safety and maintenance features.
Upgrade Options:
- Includes options for Dynamic Visual Simulation Software and enhanced mandrel retraction units (AMRU).
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | More Info |
| 25EBR | 25.4 x 1.5 | 1.0 x 0.059 | 15 - 120 | 0.59 - 4.72 | 1500 | 59.05 | 3300 x 920 x 1200 | 129.9 x 36.2 x 47.2 | 1200 | 2640 | More Info |
| 30EBR | 30 x 2.0 | 1.18 x 0.078 | 15 - 120 | 0.59 - 4.72 | 2200 | 86.61 | 4030 x 720 x 1300 | 158.6 x 28.3 x 51.2 | 1700 | 3740 | More Info |
| 38EBR | 38.1 x 1.8 | 1.5 x 0.071 | 25 - 150 | 0.98 - 5.9 | 2200 | 86.6 | 4200 x 1200 x 1500 | 165.3 x 35.4 x 55.1 | 2080 | 4576 | More Info |
| 50EBR | 50.8 x 2.0 | 2.0 x 0.079 | 30 - 220 | 1.18 - 8.66 | 2500 | 98.4 | 4650 x 1200 x 1500 | 183.1 x 47.2 x 59.0 | 3100 | 6820 | More Info |
| 65EBR | 65 x 2.0 | 2.56 x 0.079 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 6150 x 1650 x 1500 | 242.1 x 64.9 x 61.0 | 4280 | 9416 | More Info |
| 80EBR | 80 x 2.5 | 3.15 x 0.098 | 40 x 280 | 1.57 - 11.0 | 3500 | 137.8 | 6350 x 1750 x 2050 | 250 x 68.8 x 80.7 | 5890 | 12958 | More Info |
| 100EBR | 100 x 3.0 | 4.0 x 0.118 | 30 - 300 | 1.18 - 11.18 | 3500 | 137.8 | 7050 x 1550 x 1850 | 277.5 x 61.0 x 72.8 | 7500 | 16500 | More Info |
| 130EBR-RBE | 127 x 3.8 | 5.0 x 0.15 | 80 - 400 | 3.15 - 15.74 | 4000 | 157.5 | 1100 x 2000 x 2200 | 433 x 78.7 x 86.5 | 11000 | 24200 | More Info |
