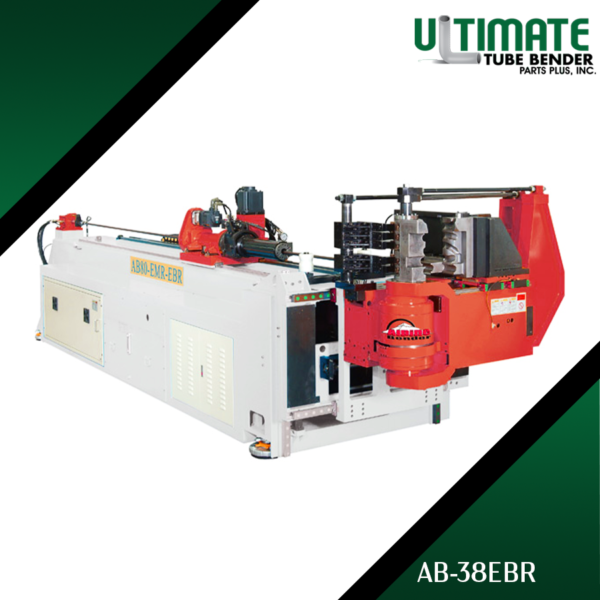

Alpine 38EBR Electric Hybrid Tube Bender
Embrace the advanced capabilities of the Alpine 38EBR, designed to handle medium to large diameter tubes with ease. This model is a perfect fit for industries that require intricate bending patterns and high operational efficiency.
Key Features:
- Double Stack Technology: Allows simultaneous bending operations, optimizing production time.
- Hybrid Efficiency: Combines precise electric movements with powerful hydraulic operations.
- Robust Design: Capable of handling demanding industrial applications.
- Energy Efficiency: Designed to reduce energy consumption while maintaining high performance.
Brand:
Alpine
Model:
38EBR
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Master IV Controller with a 15″ color LCD Touch Screen.
- Both right and left-hand bending capabilities.
- Enhanced safety features including a Safety Mat and CE Mark compliance.
Upgrade Options:
- Dynamic Visual Simulation Software for precise operation planning.
- AMRU and AML for enhanced bending efficiency and maintenance.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | More Info |
| 25EBR | 25.4 x 1.5 | 1.0 x 0.059 | 15 - 120 | 0.59 - 4.72 | 1500 | 59.05 | 3300 x 920 x 1200 | 129.9 x 36.2 x 47.2 | 1200 | 2640 | More Info |
| 30EBR | 30 x 2.0 | 1.18 x 0.078 | 15 - 120 | 0.59 - 4.72 | 2200 | 86.61 | 4030 x 720 x 1300 | 158.6 x 28.3 x 51.2 | 1700 | 3740 | More Info |
| 38EBR | 38.1 x 1.8 | 1.5 x 0.071 | 25 - 150 | 0.98 - 5.9 | 2200 | 86.6 | 4200 x 1200 x 1500 | 165.3 x 35.4 x 55.1 | 2080 | 4576 | More Info |
| 50EBR | 50.8 x 2.0 | 2.0 x 0.079 | 30 - 220 | 1.18 - 8.66 | 2500 | 98.4 | 4650 x 1200 x 1500 | 183.1 x 47.2 x 59.0 | 3100 | 6820 | More Info |
| 65EBR | 65 x 2.0 | 2.56 x 0.079 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 6150 x 1650 x 1500 | 242.1 x 64.9 x 61.0 | 4280 | 9416 | More Info |
| 80EBR | 80 x 2.5 | 3.15 x 0.098 | 40 x 280 | 1.57 - 11.0 | 3500 | 137.8 | 6350 x 1750 x 2050 | 250 x 68.8 x 80.7 | 5890 | 12958 | More Info |
| 100EBR | 100 x 3.0 | 4.0 x 0.118 | 30 - 300 | 1.18 - 11.18 | 3500 | 137.8 | 7050 x 1550 x 1850 | 277.5 x 61.0 x 72.8 | 7500 | 16500 | More Info |
| 130EBR-RBE | 127 x 3.8 | 5.0 x 0.15 | 80 - 400 | 3.15 - 15.74 | 4000 | 157.5 | 1100 x 2000 x 2200 | 433 x 78.7 x 86.5 | 11000 | 24200 | More Info |
