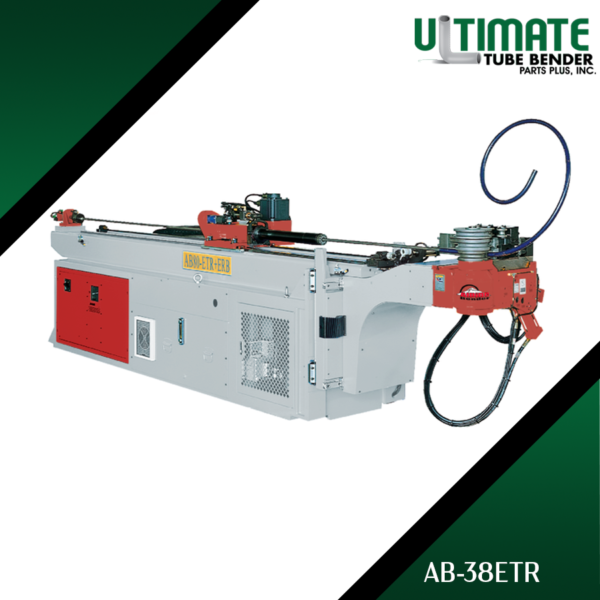

Alpine 38ETR Electric Hybrid Tube Bender
Maximize your bending capabilities with the Alpine 38ETR, featuring advanced triple stack technology. This machine is specifically built to handle demanding industrial applications, offering fast, accurate,and versatile bending operations.
Key Features:
- Triple Stack Capability: Allows for simultaneous bending of multiple radii,enhancing productivity.
- Hybrid System: Delivers optimal bending force and precision, utilizing both electric and hydraulic components.
- High Capacity: Capable of handling tubes up to 38mm, ideal for a variety of industrial uses.
- Energy Efficiency: Designed to operate with reduced energy consumption without sacrificing performance.
Brand:
Alpine
Model:
38ETR
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Master IV Controller with advanced programming features.
- Comprehensive safety systems including a Safety Mat and CE Mark compliance.
- High-performance hydraulic components complemented by precise electric servomotors.
Upgrade Options:
- Dynamic Visual Simulation Software for better planning and collision prevention.
- Anticipate Mandrel Retraction Unit (AMRU) and Auto Mandrel Lubrication (AML)to enhance operational efficiency and maintenance.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | |
| 25ETR | 25.4 x 1.5 | 1.0 x 0.059 | 15 - 120 | 0.59 - 4.72 | 1500 | 59.05 | 3300 x 920 x 1200 | 129.9 x 36.2 x 47.2 | 1200 | 2640 | More Info |
| 30ETR | 30 x 2.0 | 1.18 x 0.079 | 15 - 120 | 0.59 - 4.72 | 2200 | 86.61 | 4030 x 720 x 1300 | 158.6 x 28.3 x 51.2 | 1700 | 3740 | More Info |
| 38ETR | 38.1 x 1.8 | 1.5 x 0.071 | 25 - 150 | 0.98 - 5.9 | 2200 | 86.6 | 4200 x 900 x 1400 | 165.3 x 35.4 x 55.1 | 2080 | 4576 | More Info |
| 50ETR | 50.8 x 2.0 | 2.0 x 0.079 | 30 - 220 | 1.18 - 8.66 | 2500 | 98.4 | 4850 x 1200 x 1500 | 183.1 x 47.2 x 59.0 | 3100 | 6820 | More Info |
| 65ETR | 65 x 2.0 | 2.56 x 0.079 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 6150 x 1650 x 1500 | 242.1 x 64.9 x 61.0 | 4280 | 9416 | More Info |
| 80ETR | 80 x 2.5 | 3.15 x 0.098 | 40 - 280 | 1.57 - 11.0 | 3500 | 137.8 | 6350 x 1750 x 2050 | 250 x 68.8 x 80.7 | 5890 | 12958 | More Info |
| 100ETR | 100 x 3.0 | 4.0 x 0.118 | 30 - 300 | 1.18 - 11.8 | 3500 | 137.8 | 7050 x 1550 x 1850 | 277.5 x 61.0 x 72.8 | 7500 | 16500 | More Info |
