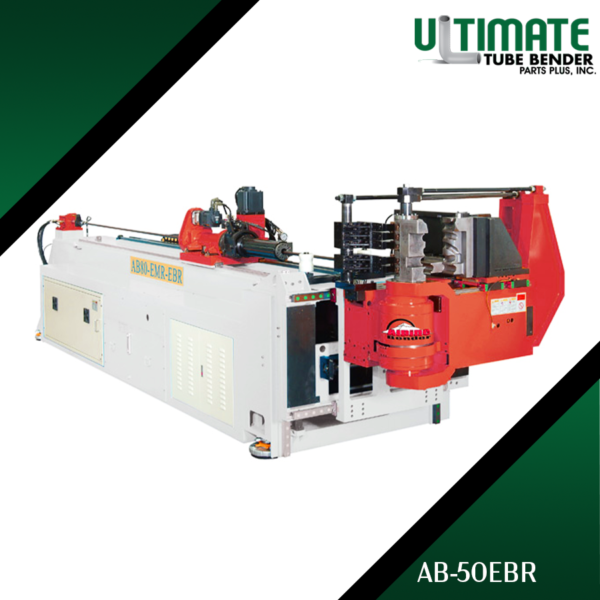

Alpine 50EBR Electric Hybrid Tube Bender
The Alpine 50EBR provides exceptional bending capabilities, designed to efficiently manage larger diameter tubes with complex bending requirements. This machine ensures high productivity and accuracy for heavy-duty industrial use.
Key Features:
- Large Diameter Bending: Ideal for tubes up to 50mm, suitable for heavy industrial applications.
- Double Stack Flexibility: Enables complex bending patterns to increase operational efficiency.
- Hybrid Drive System: Ensures powerful bending with meticulous control.
- Sustainable Operation: Reduces energy use, enhancing eco-friendliness and operational cost-effectiveness.
Brand:
Alpine
Model:
50EBR
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Equipped with advanced operational features for ease of use and safety.
- Comprehensive hydraulic and electric systems for robust performance.
Upgrade Options:
- Optional Dynamic Visual Simulation Software for better planning and safety.
- Enhanced mandrel retraction and lubrication systems for optimal performance.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | More Info |
| 25EBR | 25.4 x 1.5 | 1.0 x 0.059 | 15 - 120 | 0.59 - 4.72 | 1500 | 59.05 | 3300 x 920 x 1200 | 129.9 x 36.2 x 47.2 | 1200 | 2640 | More Info |
| 30EBR | 30 x 2.0 | 1.18 x 0.078 | 15 - 120 | 0.59 - 4.72 | 2200 | 86.61 | 4030 x 720 x 1300 | 158.6 x 28.3 x 51.2 | 1700 | 3740 | More Info |
| 38EBR | 38.1 x 1.8 | 1.5 x 0.071 | 25 - 150 | 0.98 - 5.9 | 2200 | 86.6 | 4200 x 1200 x 1500 | 165.3 x 35.4 x 55.1 | 2080 | 4576 | More Info |
| 50EBR | 50.8 x 2.0 | 2.0 x 0.079 | 30 - 220 | 1.18 - 8.66 | 2500 | 98.4 | 4650 x 1200 x 1500 | 183.1 x 47.2 x 59.0 | 3100 | 6820 | More Info |
| 65EBR | 65 x 2.0 | 2.56 x 0.079 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 6150 x 1650 x 1500 | 242.1 x 64.9 x 61.0 | 4280 | 9416 | More Info |
| 80EBR | 80 x 2.5 | 3.15 x 0.098 | 40 x 280 | 1.57 - 11.0 | 3500 | 137.8 | 6350 x 1750 x 2050 | 250 x 68.8 x 80.7 | 5890 | 12958 | More Info |
| 100EBR | 100 x 3.0 | 4.0 x 0.118 | 30 - 300 | 1.18 - 11.18 | 3500 | 137.8 | 7050 x 1550 x 1850 | 277.5 x 61.0 x 72.8 | 7500 | 16500 | More Info |
| 130EBR-RBE | 127 x 3.8 | 5.0 x 0.15 | 80 - 400 | 3.15 - 15.74 | 4000 | 157.5 | 1100 x 2000 x 2200 | 433 x 78.7 x 86.5 | 11000 | 24200 | More Info |
