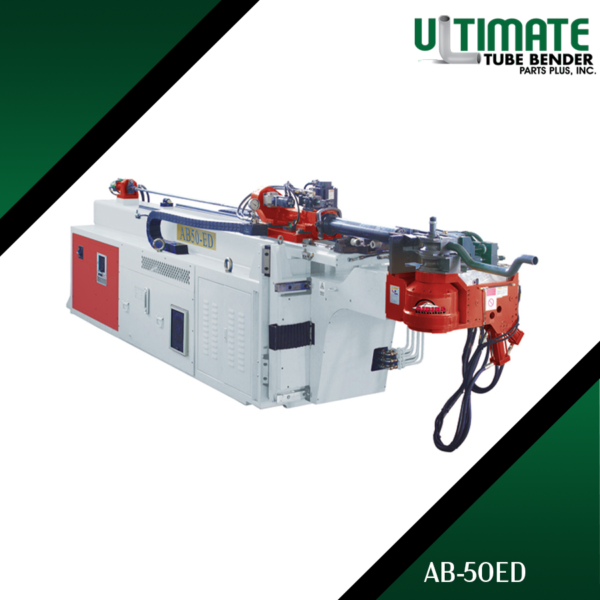

Alpine 50ED Electric Hybrid Tube Bender
The Alpine 50ED is a powerhouse in the tube bending industry, designed to handle large diameter tubes with precision and speed. Its double stack capabilities make it highly suitable for complex industrial bending tasks in sectors like infrastructure and heavy machinery.
Key Features:
- Large Diameter Bending: Specialized for tubes up to 50mm, tailored for heavy-duty applications.
- Double Stack Flexibility: Reduces cycle times by enabling multiple bends in one pass.
- Hybrid Technology: Integrates electric precision with hydraulic power for enhanced control and force.
- Efficient Operation: Designed to optimize energy use and increase production rates.
Brand:
Alpine
Model:
50ED
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Equipped with a Master IV Controller for intuitive operation.
- Features comprehensive safety systems for secure and reliable operation.
Upgrade Options:
- Dynamic Visual Simulation Software to enhance operational planning and safety.
- AMRU and AML for better maintenance and performance.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | |
| 12ED | 12 x 1.0 | 0.5 x 0.039 | Dec-55 | 0.47 - 2.16 | 1000 | 39.37 | 3700 x 1100 x 1300 | 145.6 x 43.3 x 51.1 | 1400 | 3080 | More Info |
| 18ED | 18 x 1.6 | 0.71 x 0.062 | Oct-80 | 0.39 - 3.15 | 1200 | 47.24 | 4030 x 1200 x 1350 | 158.6 x 47.2 x 53.1 | 2500 | 5500 | More Info |
| 25ED | 25.4 x 1.5 | 1.0 x 0.059 | 15 - 120 | 0.59 - 4.72 | 1500 | 59.05 | 4800 x 1400 x 1350 | 168.9 x 55.1 x 53.1 | 3000 | 6600 | More Info |
| 30ED | 30 x 2.0 | 1.18 x 0.079 | 15 - 120 | 0.59 - 4.72 | 2200 | 86.61 | 5500 x 1500 x 1500 | 216.5 x 59.1 x 59.1 | 4000 | 8800 | More Info |
| 38ED | 38.1 x 1.8 | 1.5 x 0.071 | 25 - 150 | 0.98 - 5.9 | 2200 | 86.61 | 4200 x 900 x 1400 | 165.3 x 35.4 x 55.1 | 2080 | 4576 | More Info |
| 50ED | 50.8 x 2.0 | 2.0 x 0.079 | 30 - 220 | 1.18 - 8.66 | 2500 | 98.43 | 4650 x 1200 x 1500 | 183.1 x 47.2 x 59.0 | 3100 | 6820 | More Info |
| 65ED | 65 x 2.0 | 2.56 x 0.079 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 6150 x 1650 x 1500 | 242.1 x 64.9 x 61.0 | 3800 | 8360 | More Info |
| 80ED | 80 x 2.5 | 3.15 x 0.098 | 40 - 280 | 1.57 - 11.0 | 3500 | 137.8 | 6350 x 1750 x 2050 | 250 x 68.8 x 80.7 | 5600 | 12320 | More Info |
| 100ED | 100 x 3.0 | 4.0 x 0.118 | 30 - 300 | 1.18 - 11.18 | 3500 | 137.8 | 7050 x 1550 x 1750 | 277.6 x 61.0 x 68.9 | 7500 | 16500 | More Info |
