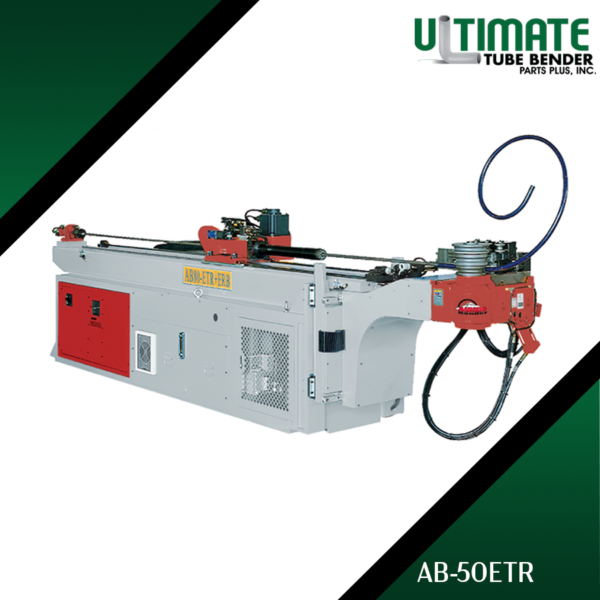

Alpine 50ETR Electric Hybrid Tube Bender
The Alpine 50ETR brings unprecedented precision and power to large diameter tube bending. Its triple stack capability and hybrid technology allow for complex bending operations that are both efficient and highly accurate.
Key Features:
- Large Diameter Bending: Specializes in tubes up to 50mm for high-demand applications.
- Triple Stack Flexibility: Enhances operational efficiency with multiple bending configurations in a single setup.
- Robust Hybrid Technology: Combines the best aspects of electric precision and hydraulic strength.
- Sustainable Performance: Operates with an emphasis on reducing environmental impact while maximizing output.
Brand:
Alpine
Model:
50ETR
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Equipped with a user-friendly Master IV Controller for ease of use.
- Safety features such as automatic slide-way lubrication and customized electrical specifications for various markets.
Upgrade Options:
- Optional Dynamic Visual Simulation Software and safety systems to improve overall safety and efficiency.
- Enhanced maintenance features such as AMRU and AML for better longevity and performance.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | |
| 25ETR | 25.4 x 1.5 | 1.0 x 0.059 | 15 - 120 | 0.59 - 4.72 | 1500 | 59.05 | 3300 x 920 x 1200 | 129.9 x 36.2 x 47.2 | 1200 | 2640 | More Info |
| 30ETR | 30 x 2.0 | 1.18 x 0.079 | 15 - 120 | 0.59 - 4.72 | 2200 | 86.61 | 4030 x 720 x 1300 | 158.6 x 28.3 x 51.2 | 1700 | 3740 | More Info |
| 38ETR | 38.1 x 1.8 | 1.5 x 0.071 | 25 - 150 | 0.98 - 5.9 | 2200 | 86.6 | 4200 x 900 x 1400 | 165.3 x 35.4 x 55.1 | 2080 | 4576 | More Info |
| 50ETR | 50.8 x 2.0 | 2.0 x 0.079 | 30 - 220 | 1.18 - 8.66 | 2500 | 98.4 | 4850 x 1200 x 1500 | 183.1 x 47.2 x 59.0 | 3100 | 6820 | More Info |
| 65ETR | 65 x 2.0 | 2.56 x 0.079 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 6150 x 1650 x 1500 | 242.1 x 64.9 x 61.0 | 4280 | 9416 | More Info |
| 80ETR | 80 x 2.5 | 3.15 x 0.098 | 40 - 280 | 1.57 - 11.0 | 3500 | 137.8 | 6350 x 1750 x 2050 | 250 x 68.8 x 80.7 | 5890 | 12958 | More Info |
| 100ETR | 100 x 3.0 | 4.0 x 0.118 | 30 - 300 | 1.18 - 11.8 | 3500 | 137.8 | 7050 x 1550 x 1850 | 277.5 x 61.0 x 72.8 | 7500 | 16500 | More Info |
