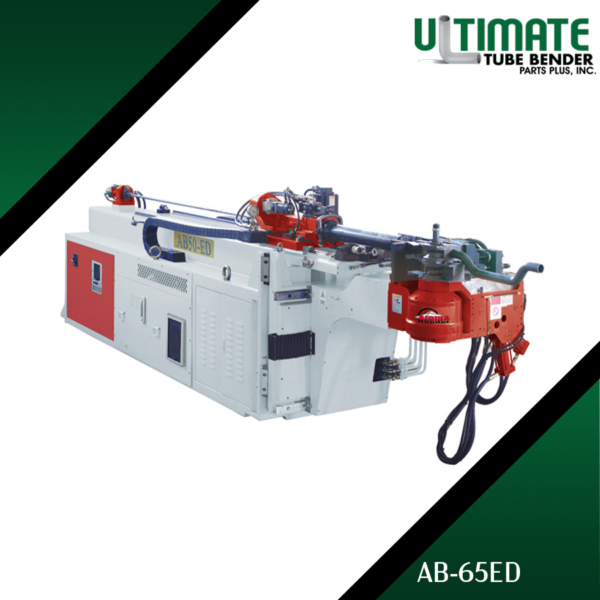

Alpine 65ED Electric Hybrid Tube Bender
Maximize your industrial bending operations with the Alpine 65ED Tube Bender, tailored for heavy-duty tasks requiring precision and durability. This bender combines the flexibility of double stack technology with the strength and accuracy of hybrid systems, making it an invaluable asset in demanding environments.
Key Features:
- Double Stack Technology: Enables multiple bending operations simultaneously, enhancing workflow efficiency.
- Large Diameter Handling: Ideal for tubes up to 65mm, meeting the needs of high-demand industries.
- Hybrid Drive System: Provides a combination of electric precision and hydraulic power for superior bending performance.
- Energy Efficiency: Optimized to reduce energy consumption while maintaining high output.
Brand:
Alpine
Model:
60ED
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Master IV Controller with a 15″ color LCD Touch Screen for simplified operation.
- Comprehensive safety features including a Safety Mat, CE Mark compliance, and robust construction.
- Right and left-hand bending capabilities for operational versatility.
Upgrade Options:
- Dynamic Visual Simulation Software for accurate setup and collision avoidance.
- AMRU (Anticipate Mandrel Retraction Unit) and AML (Auto Mandrel Lubrication)to enhance operational efficiency and maintenance.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | |
| 12ED | 12 x 1.0 | 0.5 x 0.039 | Dec-55 | 0.47 - 2.16 | 1000 | 39.37 | 3700 x 1100 x 1300 | 145.6 x 43.3 x 51.1 | 1400 | 3080 | More Info |
| 18ED | 18 x 1.6 | 0.71 x 0.062 | Oct-80 | 0.39 - 3.15 | 1200 | 47.24 | 4030 x 1200 x 1350 | 158.6 x 47.2 x 53.1 | 2500 | 5500 | More Info |
| 25ED | 25.4 x 1.5 | 1.0 x 0.059 | 15 - 120 | 0.59 - 4.72 | 1500 | 59.05 | 4800 x 1400 x 1350 | 168.9 x 55.1 x 53.1 | 3000 | 6600 | More Info |
| 30ED | 30 x 2.0 | 1.18 x 0.079 | 15 - 120 | 0.59 - 4.72 | 2200 | 86.61 | 5500 x 1500 x 1500 | 216.5 x 59.1 x 59.1 | 4000 | 8800 | More Info |
| 38ED | 38.1 x 1.8 | 1.5 x 0.071 | 25 - 150 | 0.98 - 5.9 | 2200 | 86.61 | 4200 x 900 x 1400 | 165.3 x 35.4 x 55.1 | 2080 | 4576 | More Info |
| 50ED | 50.8 x 2.0 | 2.0 x 0.079 | 30 - 220 | 1.18 - 8.66 | 2500 | 98.43 | 4650 x 1200 x 1500 | 183.1 x 47.2 x 59.0 | 3100 | 6820 | More Info |
| 65ED | 65 x 2.0 | 2.56 x 0.079 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 6150 x 1650 x 1500 | 242.1 x 64.9 x 61.0 | 3800 | 8360 | More Info |
| 80ED | 80 x 2.5 | 3.15 x 0.098 | 40 - 280 | 1.57 - 11.0 | 3500 | 137.8 | 6350 x 1750 x 2050 | 250 x 68.8 x 80.7 | 5600 | 12320 | More Info |
| 100ED | 100 x 3.0 | 4.0 x 0.118 | 30 - 300 | 1.18 - 11.18 | 3500 | 137.8 | 7050 x 1550 x 1750 | 277.6 x 61.0 x 68.9 | 7500 | 16500 | More Info |
