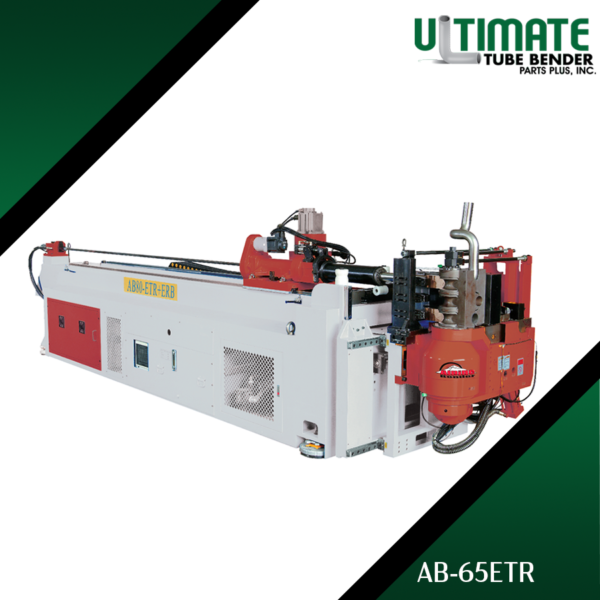

Alpine 65ETR Electric Hybrid Tube Bender
Capitalize on the advanced capabilities of the Alpine 65ETR, designed for high-stakes bending operations that require exacting precision and efficiency. This model’s triple stack feature enables intricate bending operations without compromising on speed or quality.
Key Features:
- Triple Stack Capability: Enhances flexibility and productivity by enabling multiple bends in one operational sequence.
- High Capacity Bending: Accommodates tubes up to 65mm, suitable for industrial applications.
- Hybrid Technology: Provides optimal control with a combination of electric and hydraulic systems.
- Energy-Efficient Design: Reduces energy consumption, aligning with eco-friendly manufacturing goals.
Brand:
Alpine
Model:
65ETR
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories & Upgrade Options:
- Includes advanced safety and operational features to support high-volume production environments.
- Optional upgrades like Dynamic Visual Simulation Software and enhanced maintenance systems like AMRU and AML.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | |
| 25ETR | 25.4 x 1.5 | 1.0 x 0.059 | 15 - 120 | 0.59 - 4.72 | 1500 | 59.05 | 3300 x 920 x 1200 | 129.9 x 36.2 x 47.2 | 1200 | 2640 | More Info |
| 30ETR | 30 x 2.0 | 1.18 x 0.079 | 15 - 120 | 0.59 - 4.72 | 2200 | 86.61 | 4030 x 720 x 1300 | 158.6 x 28.3 x 51.2 | 1700 | 3740 | More Info |
| 38ETR | 38.1 x 1.8 | 1.5 x 0.071 | 25 - 150 | 0.98 - 5.9 | 2200 | 86.6 | 4200 x 900 x 1400 | 165.3 x 35.4 x 55.1 | 2080 | 4576 | More Info |
| 50ETR | 50.8 x 2.0 | 2.0 x 0.079 | 30 - 220 | 1.18 - 8.66 | 2500 | 98.4 | 4850 x 1200 x 1500 | 183.1 x 47.2 x 59.0 | 3100 | 6820 | More Info |
| 65ETR | 65 x 2.0 | 2.56 x 0.079 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 6150 x 1650 x 1500 | 242.1 x 64.9 x 61.0 | 4280 | 9416 | More Info |
| 80ETR | 80 x 2.5 | 3.15 x 0.098 | 40 - 280 | 1.57 - 11.0 | 3500 | 137.8 | 6350 x 1750 x 2050 | 250 x 68.8 x 80.7 | 5890 | 12958 | More Info |
| 100ETR | 100 x 3.0 | 4.0 x 0.118 | 30 - 300 | 1.18 - 11.8 | 3500 | 137.8 | 7050 x 1550 x 1850 | 277.5 x 61.0 x 72.8 | 7500 | 16500 | More Info |
