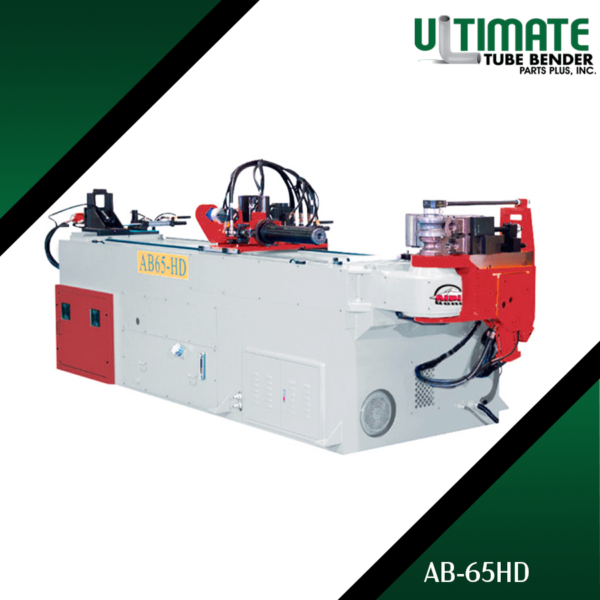

Alpine 65HD Hydraulic Tube Bender
The Alpine 65HD introduces advanced hydraulic bending capabilities for large tubes, providing enhanced productivity and reliability for your most demanding projects. Its robust design and powerful hydraulic system make it a standout choice for high-volume, precision bending.
Key Features:
- High Diameter Capability: Effectively bends tubes up to 65mm.
- Double Stack Configuration: Maximizes efficiency by enabling multiple bends in a single operation.
- Powerful Hydraulic Drive: Delivers consistent force for accurate bends.
- Built for Durability: Designed to withstand intense industrial use.
Brand:
Alpine
Model:
65HD
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Comes equipped with state-of-the-art safety features and an intuitive control panel.
- Includes a range of dies and accessories to suit various tube sizes and shapes.
Upgrade Options:
- Additional customization for control systems to meet specific production requirements.
- Expanded tooling sets for specialized bending operations.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | |
| 38HD | 38.1 x 3.0 | 1.5 x 0.118 | 25 - 150 | 0.98 - 5.91 | 2200 | 86.6 | 4000 x 1100 x 1300 | 157.4 x 43.3 x 51.1 | 1700 | 3740 | More Info |
| 50HD | 50.8 x 3.0 | 2.0 x 0.118 | 30 - 220 | 1.18 - 8.66 | 2200 | 86.6 | 4200 x 1200 x 1350 | 165.3 x 47.2 x 53.1 | 2800 | 6160 | More Info |
| 65HD | 65 x 3.0 | 2.56 x 0.118 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 4800 x 1500 x 1600 | 188.9 x 59.0 x 63.0 | 3500 | 7700 | More Info |
| 80HD | 80 x 4.5 | 3.15 x 0.177 | 40 - 280 | 1.57 - 11.02 | 3000 | 118.1 | 5600 x 1700 x 1800 | 220.4 x 66.9 x 62.9 | 5000 | 11000 | More Info |
| 100HD | 101.6 x 5.5 | 4.0 x 0.216 | 60 - 400 | 2.36 - 15.75 | 3600 | 141.7 | 7000 x 1700 x 1800 | 275.5 x 66.9 x 70.8 | 6000 | 13200 | More Info |
| 120HD | 120 x 5.5 | 5.0 x 0.216 | 80 - 400 | 3.15 - 15.7 | 5000 | 196.8 | 6500 x 2150 x 1750 | 334.6 x 84.6 x 68.8 | 12500 | 27500 | More Info |
| 130HM-V | 130 x 4.5 | 5.12 x 0.177 | 80 - 300 | 3.15 - 11.81 | 5000 | 196.8 | 10200 x 2310 x 2300 | 401.5 x 90.9 x 90.5 | 18400 | 40480 | More Info |
| 150HM-V | 152.4 x 7.0 | 6 x 0.275 | 90 -400 | 3.54 - 23.6 | 6000 | 236.2 | 9500 x 2500 x 2500 | 374 x 98.4 x 98.4 | 19400 | 42680 | More Info |
