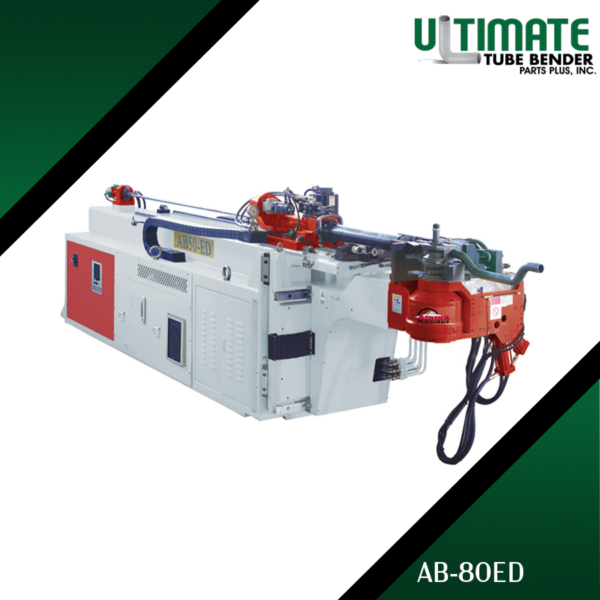

Alpine 80ED Electric Hybrid Tube Bender
Elevate your bending capabilities with the Alpine 80ED Tube Bender, a machine that brings unparalleled strength and accuracy to large diameter tube bending. This model is designed to tackle the most challenging bending operations with ease, ensuring high productivity and consistency.
Key Features:
- Advanced Double Stack Capabilities: Allows complex bending operations for enhanced productivity and minimal downtime.
- High-Capacity Bending: Specialized for tubes up to 80mm, ideal for heavy industrial use.
- Hybrid Technology: Blends electric servo accuracy with hydraulic power for dynamic bending force.
- Optimized Energy Use: Focuses on energy efficiency, reducing operational costs while maintaining performance.
Brand:
Alpine
Model:
80ED
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Features a user-friendly Master IV Controller for optimal control.
- Enhanced safety protocols and durable construction to withstand rigorous industrial environments.
Upgrade Options:
- Dynamic Visual Simulation Software for precise and safe bending operations.
- Additional upgrades like AMRU and AML for improved maintenance and bending speed.
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | |
| 12ED | 12 x 1.0 | 0.5 x 0.039 | Dec-55 | 0.47 - 2.16 | 1000 | 39.37 | 3700 x 1100 x 1300 | 145.6 x 43.3 x 51.1 | 1400 | 3080 | More Info |
| 18ED | 18 x 1.6 | 0.71 x 0.062 | Oct-80 | 0.39 - 3.15 | 1200 | 47.24 | 4030 x 1200 x 1350 | 158.6 x 47.2 x 53.1 | 2500 | 5500 | More Info |
| 25ED | 25.4 x 1.5 | 1.0 x 0.059 | 15 - 120 | 0.59 - 4.72 | 1500 | 59.05 | 4800 x 1400 x 1350 | 168.9 x 55.1 x 53.1 | 3000 | 6600 | More Info |
| 30ED | 30 x 2.0 | 1.18 x 0.079 | 15 - 120 | 0.59 - 4.72 | 2200 | 86.61 | 5500 x 1500 x 1500 | 216.5 x 59.1 x 59.1 | 4000 | 8800 | More Info |
| 38ED | 38.1 x 1.8 | 1.5 x 0.071 | 25 - 150 | 0.98 - 5.9 | 2200 | 86.61 | 4200 x 900 x 1400 | 165.3 x 35.4 x 55.1 | 2080 | 4576 | More Info |
| 50ED | 50.8 x 2.0 | 2.0 x 0.079 | 30 - 220 | 1.18 - 8.66 | 2500 | 98.43 | 4650 x 1200 x 1500 | 183.1 x 47.2 x 59.0 | 3100 | 6820 | More Info |
| 65ED | 65 x 2.0 | 2.56 x 0.079 | 35 - 250 | 1.38 - 9.84 | 2500 | 98.4 | 6150 x 1650 x 1500 | 242.1 x 64.9 x 61.0 | 3800 | 8360 | More Info |
| 80ED | 80 x 2.5 | 3.15 x 0.098 | 40 - 280 | 1.57 - 11.0 | 3500 | 137.8 | 6350 x 1750 x 2050 | 250 x 68.8 x 80.7 | 5600 | 12320 | More Info |
| 100ED | 100 x 3.0 | 4.0 x 0.118 | 30 - 300 | 1.18 - 11.18 | 3500 | 137.8 | 7050 x 1550 x 1750 | 277.6 x 61.0 x 68.9 | 7500 | 16500 | More Info |
