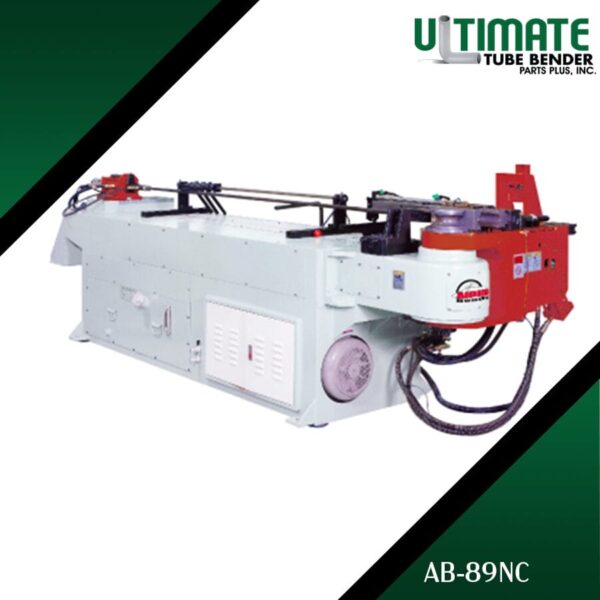

Alpine 89NC Hydraulic Tube Bender
Alpine 89NC: Power and Precision for Heavy-Duty Bending
The Alpine 89NC Hydraulic Tube Bender represents the pinnacle of bending power and accuracy. It is the ideal choice for businesses looking to enhance their capacity for large diameter tube bending with a machine that combines reliability, safety, and precision.
Key Features:
- Enhanced Capability: Perfect for heavy-duty tasks, the 89NC handles tubes up to 89mm, providing the power needed for large diameter bending operations.
- Superior Accuracy: This model boasts precise bending capabilities, ensuring every bend is executed flawlessly for high-quality results.
- Durable Construction: Built to withstand industrial wear and tear, the 89NC offers unmatched durability and reliability.
- Safety Features: Prioritizing operator safety, it is equipped with comprehensive safety systems to prevent accidents during use.
Brand:
Alpine
Model:
AB-89NC
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Applications:
Perfect for applications demanding large diameter bending such as petrochemical, power generation, and large-scale construction projects.
Standard Machine and Accessories
- Master I Controller
- PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
- Right Hand Bending
- ANC- Single Stack Tooling for Draw Bending
- Y, B Axes — Manual Feeding and Rotation
- C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
- 100 sets of Program Storage
- With Metric and Inch setting conversion
- Booster Device of Pressure Die
- With Independent programmable speeds Y and B axes (10×8)
- Water Cooling System
- One shot Slide-way Lubrication for bend arm to reduce maintenance time
- Foot Pedal Cycle start
- Wiper die Bracket
- 3 Mandrel Rods
- Operation and Maintenance Manual
- Tool Box with Adjusted Tools
- Electric: As required (3 phase 208V or 220V or 480V)
Upgrade Options
- AMRU — Anticipate Mandrel Retraction Unit
- AML — Auto Mandrel Lubrication
- Upgrade to 1000 sets of Program Storage
- Safety Mat Connection Ready (without CE Mark)
- CE Mark
- Safety Mat
- Safety Scanner
- Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | More Info |
| AB38NC | 38.1 x 3.0 | 1.5 x 0.118 | 25 -170 | 0.98 - 6.6 | 1900 | 74.8 | 2600 x 900 x 1100 | 102.4 x 35.4 x 43.3 | 850 | 1870 | More Info |
| AB50NC | 50.8 x 3.0 | 2.0 x 0.118 | 30 - 250 | 1.18 - 11.81 | 2200 | 86.6 | 3000 x 900 x 1200 | 118.1 x 35.4 x 47.2 | 950 | 2090 | More Info |
| AB75NC | 76.2 x 3.0 | 3.0 x 0.118 | 40 - 300 | 1.57 - 11.81 | 2600 | 102.4 | 3600 x 1200 x 1200 | 141.7 x 47.2 x 47.2 | 1900 | 4180 | More Info |
| AB89NC | 88.9 x 2.5 | 3.5 x 0.157 | 40 - 350 | 1.57 - 13.77 | 2600 | 102.4 | 3700 x 1200 x 1200 | 145.7 x 47.2 x 47.2 | 2200 | 4840 | More Info |
| AB100NC | 101.6 x 5.5 | 4.0 x 0.217 | 60 - 400 | 2.3 - 15.7 | 3600 | 141.7 | 4800 x 1500 x 1400 | 188.9 x 59.1 x 55.1 | 4500 | 9900 | More Info |
| AB120NC | 127 x 3.5 | 5.0 x 0.217 | 80 - 450 | 3.15 - 19.68 | 5200 | 204.7 | 7000 x 1700 x 1600 | 275.5 x 66.9 x 63.0 | 7200 | 15840 | More Info |
| AB150NC | 152.4 x 7.0 | 6.0 x 0.275 | 90 - 550 | 3.5 - 21.6 | 6000 | 236.2 | 8100 x 2100 x 1700 | 318.8 x 82.6 x 66.9 | 9000 | 19800 | More Info |
| AB180NC | 180 x 9.0 | 7.0 x 0.275 | 100 - 600 | 3.93 - 23.6 | 6000 | 236.2 | 8100 x 2300 x 1700 | 318.8 x 90.6 x 66.9 | 9800 | 21560 | More Info |
| AB220NC | 220 x 8.0 | 8.6 x 0.275 | 100 - 700 | 4.72 - 34.6 | 6000 | 236.2 | 10000 x 2300 x 1900 | 393.7 x 90.6 x 74.8 | 16500 | 36300 | More Info |
