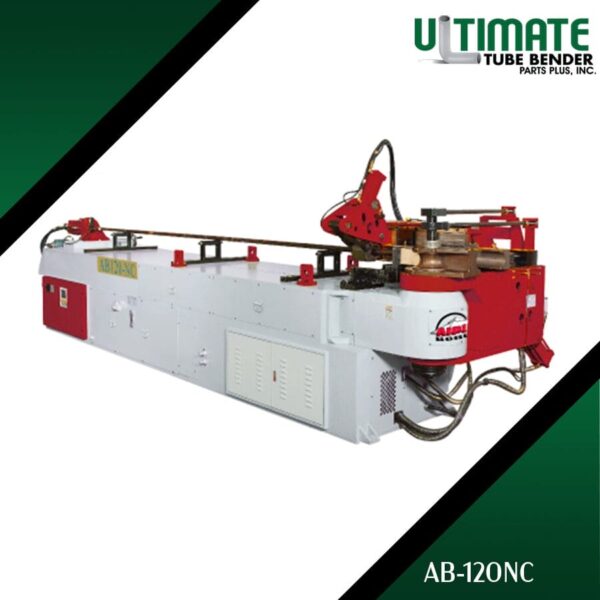

Alpine AB-120NC Hydraulic Tube Bender
Alpine AB120NC: A Giant in Precision Bending
The Alpine AB120NC Hydraulic Tube Bender is a powerhouse designed for the most challenging bending operations. It’s the go-to machine for businesses that require both large capacity and precision to meet the demands of large-scale projects efficiently.
Key Features:
- Exceptional Capacity: The AB120NC brings extraordinary bending capacity to your workshop, handling tubes up to 120mm in diameter for the most demanding projects.
- Unmatched Precision: Delivers precise bends time after time, making it a reliable tool for critical applications where accuracy is paramount.
- Durability: Its robust design ensures long-term reliability and performance, even in the toughest industrial environments.
- Safety Oriented: Features top-tier safety protocols to protect operators, reinforcing its role as a key asset in any safety-conscious operation.
Brand:
Alpine
Model:
AB-120NC
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Applications:
Ideal for maritime, large-scale metal fabrication, and heavy machinery manufacturing, where size and precision matter.
Standard Machine and Accessories
- Master I Controller
- PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
- Right Hand Bending
- ANC- Single Stack Tooling for Draw Bending
- Y, B Axes — Manual Feeding and Rotation
- C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
- 100 sets of Program Storage
- With Metric and Inch setting conversion
- Booster Device of Pressure Die
- With Independent programmable speeds Y and B axes (10×8)
- Water Cooling System
- One shot Slide-way Lubrication for bend arm to reduce maintenance time
- Foot Pedal Cycle start
- Wiper die Bracket
- 3 Mandrel Rods
- Operation and Maintenance Manual
- Tool Box with Adjusted Tools
- Electric: As required (3 phase 208V or 220V or 480V)
Upgrade Options
- AMRU — Anticipate Mandrel Retraction Unit
- AML — Auto Mandrel Lubrication
- Upgrade to 1000 sets of Program Storage
- Safety Mat Connection Ready (without CE Mark)
- CE Mark
- Safety Mat
- Safety Scanner
- Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | More Info |
| AB38NC | 38.1 x 3.0 | 1.5 x 0.118 | 25 -170 | 0.98 - 6.6 | 1900 | 74.8 | 2600 x 900 x 1100 | 102.4 x 35.4 x 43.3 | 850 | 1870 | More Info |
| AB50NC | 50.8 x 3.0 | 2.0 x 0.118 | 30 - 250 | 1.18 - 11.81 | 2200 | 86.6 | 3000 x 900 x 1200 | 118.1 x 35.4 x 47.2 | 950 | 2090 | More Info |
| AB75NC | 76.2 x 3.0 | 3.0 x 0.118 | 40 - 300 | 1.57 - 11.81 | 2600 | 102.4 | 3600 x 1200 x 1200 | 141.7 x 47.2 x 47.2 | 1900 | 4180 | More Info |
| AB89NC | 88.9 x 2.5 | 3.5 x 0.157 | 40 - 350 | 1.57 - 13.77 | 2600 | 102.4 | 3700 x 1200 x 1200 | 145.7 x 47.2 x 47.2 | 2200 | 4840 | More Info |
| AB100NC | 101.6 x 5.5 | 4.0 x 0.217 | 60 - 400 | 2.3 - 15.7 | 3600 | 141.7 | 4800 x 1500 x 1400 | 188.9 x 59.1 x 55.1 | 4500 | 9900 | More Info |
| AB120NC | 127 x 3.5 | 5.0 x 0.217 | 80 - 450 | 3.15 - 19.68 | 5200 | 204.7 | 7000 x 1700 x 1600 | 275.5 x 66.9 x 63.0 | 7200 | 15840 | More Info |
| AB150NC | 152.4 x 7.0 | 6.0 x 0.275 | 90 - 550 | 3.5 - 21.6 | 6000 | 236.2 | 8100 x 2100 x 1700 | 318.8 x 82.6 x 66.9 | 9000 | 19800 | More Info |
| AB180NC | 180 x 9.0 | 7.0 x 0.275 | 100 - 600 | 3.93 - 23.6 | 6000 | 236.2 | 8100 x 2300 x 1700 | 318.8 x 90.6 x 66.9 | 9800 | 21560 | More Info |
| AB220NC | 220 x 8.0 | 8.6 x 0.275 | 100 - 700 | 4.72 - 34.6 | 6000 | 236.2 | 10000 x 2300 x 1900 | 393.7 x 90.6 x 74.8 | 16500 | 36300 | More Info |
