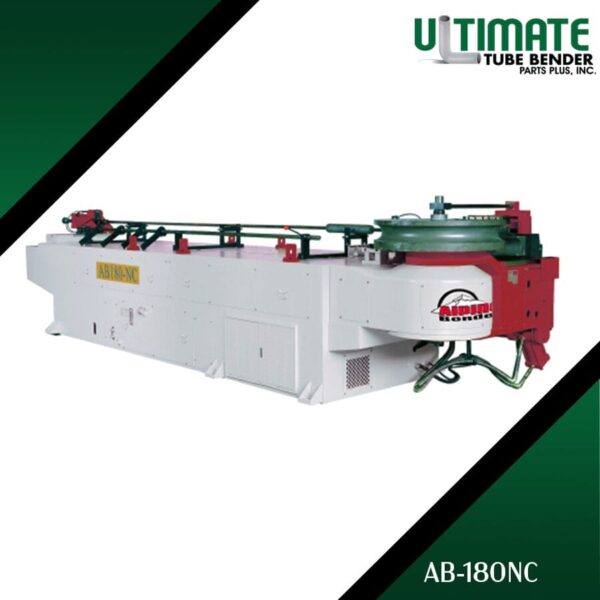

Alpine AB-180NC Hydraulic Tube Bender
Alpine AB180NC: The Ultimate in Bending Capacity and Precision
The Alpine AB180NC Hydraulic Tube Bender is unparalleled in its ability to handle the most demanding bending operations with ease and accuracy. For businesses that require the best in terms of capacity and precision, the AB180NC is the definitive choice.
Key Features:
- Maximum Bending Capacity: The pinnacle of the NC series, the AB180NC handles tubes up to 180mm, supporting the widest range of industrial bending tasks.
- Precision Engineering: Delivers consistently accurate bends, making it a cornerstone for industries where precision is critical.
- Built for the Long Haul: Its construction is designed to endure, providing reliable service through years of heavy use.
- Operator Safety: Emphasizes safety with comprehensive protective features, ensuring a secure workplace for all users.
Brand:
Alpine
Model:
AB-180NC
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Applications:
The ultimate choice for energy, manufacturing, and any sector requiring large diameter pipe bending.
Standard Machine and Accessories
- Master I Controller
- PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
- Right Hand Bending
- ANC- Single Stack Tooling for Draw Bending
- Y, B Axes — Manual Feeding and Rotation
- C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
- 100 sets of Program Storage
- With Metric and Inch setting conversion
- Booster Device of Pressure Die
- With Independent programmable speeds Y and B axes (10×8)
- Water Cooling System
- One shot Slide-way Lubrication for bend arm to reduce maintenance time
- Foot Pedal Cycle start
- Wiper die Bracket
- 3 Mandrel Rods
- Operation and Maintenance Manual
- Tool Box with Adjusted Tools
- Electric: As required (3 phase 208V or 220V or 480V)
Upgrade Options
- AMRU — Anticipate Mandrel Retraction Unit
- AML — Auto Mandrel Lubrication
- Upgrade to 1000 sets of Program Storage
- Safety Mat Connection Ready (without CE Mark)
- CE Mark
- Safety Mat
- Safety Scanner
- Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | More Info |
| AB38NC | 38.1 x 3.0 | 1.5 x 0.118 | 25 -170 | 0.98 - 6.6 | 1900 | 74.8 | 2600 x 900 x 1100 | 102.4 x 35.4 x 43.3 | 850 | 1870 | More Info |
| AB50NC | 50.8 x 3.0 | 2.0 x 0.118 | 30 - 250 | 1.18 - 11.81 | 2200 | 86.6 | 3000 x 900 x 1200 | 118.1 x 35.4 x 47.2 | 950 | 2090 | More Info |
| AB75NC | 76.2 x 3.0 | 3.0 x 0.118 | 40 - 300 | 1.57 - 11.81 | 2600 | 102.4 | 3600 x 1200 x 1200 | 141.7 x 47.2 x 47.2 | 1900 | 4180 | More Info |
| AB89NC | 88.9 x 2.5 | 3.5 x 0.157 | 40 - 350 | 1.57 - 13.77 | 2600 | 102.4 | 3700 x 1200 x 1200 | 145.7 x 47.2 x 47.2 | 2200 | 4840 | More Info |
| AB100NC | 101.6 x 5.5 | 4.0 x 0.217 | 60 - 400 | 2.3 - 15.7 | 3600 | 141.7 | 4800 x 1500 x 1400 | 188.9 x 59.1 x 55.1 | 4500 | 9900 | More Info |
| AB120NC | 127 x 3.5 | 5.0 x 0.217 | 80 - 450 | 3.15 - 19.68 | 5200 | 204.7 | 7000 x 1700 x 1600 | 275.5 x 66.9 x 63.0 | 7200 | 15840 | More Info |
| AB150NC | 152.4 x 7.0 | 6.0 x 0.275 | 90 - 550 | 3.5 - 21.6 | 6000 | 236.2 | 8100 x 2100 x 1700 | 318.8 x 82.6 x 66.9 | 9000 | 19800 | More Info |
| AB180NC | 180 x 9.0 | 7.0 x 0.275 | 100 - 600 | 3.93 - 23.6 | 6000 | 236.2 | 8100 x 2300 x 1700 | 318.8 x 90.6 x 66.9 | 9800 | 21560 | More Info |
| AB220NC | 220 x 8.0 | 8.6 x 0.275 | 100 - 700 | 4.72 - 34.6 | 6000 | 236.2 | 10000 x 2300 x 1900 | 393.7 x 90.6 x 74.8 | 16500 | 36300 | More Info |
