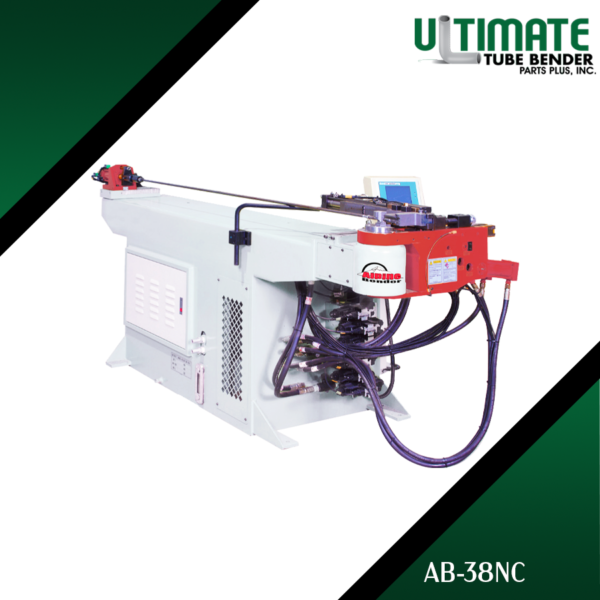

Alpine AB-38NC Hydraulic Tube Bender
Alpine AB38NC: A Tool of Precision and Efficiency
Choosing the Alpine AB38NC means investing in a machine that will not only meet your current bending needs but also adapt to your future projects. Its combination of power, precision, and ease of use makes it an essential tool for businesses aiming to enhance their productivity and expand their capabilities.
Key Features:
- Precision Bending: Utilize the AB38NC’s advanced hydraulic system and programmable logic controller (PLC) to achieve bends with unparalleled accuracy. Its precision bending capability ensures that each curve is consistent, meeting the highest standards of quality.
- Versatile Operation: With its capacity to bend tubes up to 38mm in diameter, this machine handles a wide range of tube sizes and materials, including mild steel, stainless steel, aluminum, and more, making it a versatile tool for any workshop.
- User-Friendly Interface: The AB38NC is designed with the operator in mind. Its intuitive control panel simplifies the setup and operation processes, allowing for quick adjustments and minimal downtime.
- Durability: Built to last, the AB38NC’s sturdy construction guarantees years of reliable service. Its heavy-duty structure withstands the toughest workshop conditions, ensuring your investment continues to pay dividends.
- Safety Features: Equipped with multiple safety features, the AB38NC prioritizes operator safety. From emergency stop functions to protective guards, every aspect of the machine is designed to provide a safe working environment.
Brand:
Alpine
Model:
AB-38NC
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Applications:
Whether you’re bending tubes for automotive parts, constructing frames for bicycles, or crafting piping for HVAC systems, the Alpine AB38NC Hydraulic Tube Bender delivers the performance and reliability your projects demand.
Standard Machine and Accessories
- Master I Controller
- PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
- Right Hand Bending
- ANC- Single Stack Tooling for Draw Bending
- Y, B Axes — Manual Feeding and Rotation
- C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
- 100 sets of Program Storage
- With Metric and Inch setting conversion
- Booster Device of Pressure Die
- With Independent programmable speeds Y and B axes (10×8)
- Water Cooling System
- One shot Slide-way Lubrication for bend arm to reduce maintenance time
- Foot Pedal Cycle start
- Wiper die Bracket
- 3 Mandrel Rods
- Operation and Maintenance Manual
- Tool Box with Adjusted Tools
- Electric: As required (3 phase 208V or 220V or 480V)
Upgrade Options
- AMRU — Anticipate Mandrel Retraction Unit
- AML — Auto Mandrel Lubrication
- Upgrade to 1000 sets of Program Storage
- Safety Mat Connection Ready (without CE Mark)
- CE Mark
- Safety Mat
- Safety Scanner
- Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MAX LENGTH OVER MANDREL | OVERALL L X W X H | TOTAL WEIGHT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | mm | inch | mm | inch | kg | lbs | More Info |
| AB38NC | 38.1 x 3.0 | 1.5 x 0.118 | 25 -170 | 0.98 - 6.6 | 1900 | 74.8 | 2600 x 900 x 1100 | 102.4 x 35.4 x 43.3 | 850 | 1870 | More Info |
| AB50NC | 50.8 x 3.0 | 2.0 x 0.118 | 30 - 250 | 1.18 - 11.81 | 2200 | 86.6 | 3000 x 900 x 1200 | 118.1 x 35.4 x 47.2 | 950 | 2090 | More Info |
| AB75NC | 76.2 x 3.0 | 3.0 x 0.118 | 40 - 300 | 1.57 - 11.81 | 2600 | 102.4 | 3600 x 1200 x 1200 | 141.7 x 47.2 x 47.2 | 1900 | 4180 | More Info |
| AB89NC | 88.9 x 2.5 | 3.5 x 0.157 | 40 - 350 | 1.57 - 13.77 | 2600 | 102.4 | 3700 x 1200 x 1200 | 145.7 x 47.2 x 47.2 | 2200 | 4840 | More Info |
| AB100NC | 101.6 x 5.5 | 4.0 x 0.217 | 60 - 400 | 2.3 - 15.7 | 3600 | 141.7 | 4800 x 1500 x 1400 | 188.9 x 59.1 x 55.1 | 4500 | 9900 | More Info |
| AB120NC | 127 x 3.5 | 5.0 x 0.217 | 80 - 450 | 3.15 - 19.68 | 5200 | 204.7 | 7000 x 1700 x 1600 | 275.5 x 66.9 x 63.0 | 7200 | 15840 | More Info |
| AB150NC | 152.4 x 7.0 | 6.0 x 0.275 | 90 - 550 | 3.5 - 21.6 | 6000 | 236.2 | 8100 x 2100 x 1700 | 318.8 x 82.6 x 66.9 | 9000 | 19800 | More Info |
| AB180NC | 180 x 9.0 | 7.0 x 0.275 | 100 - 600 | 3.93 - 23.6 | 6000 | 236.2 | 8100 x 2300 x 1700 | 318.8 x 90.6 x 66.9 | 9800 | 21560 | More Info |
| AB220NC | 220 x 8.0 | 8.6 x 0.275 | 100 - 700 | 4.72 - 34.6 | 6000 | 236.2 | 10000 x 2300 x 1900 | 393.7 x 90.6 x 74.8 | 16500 | 36300 | More Info |
