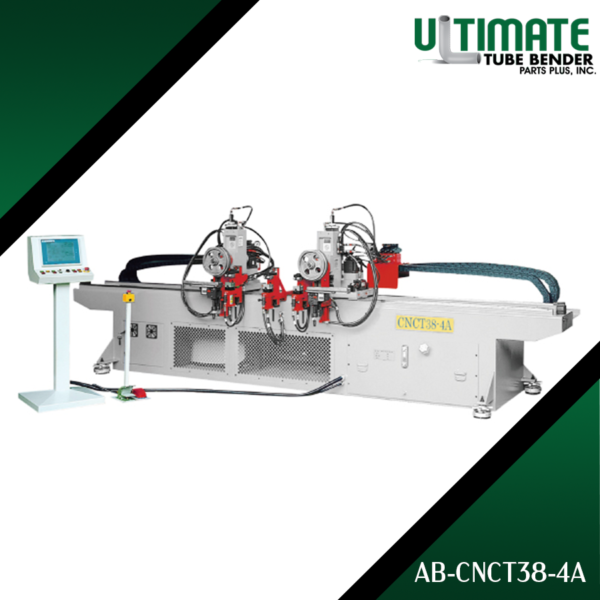

Alpine CNC T38-4A Twin Head Tube Bender
The Alpine CNC T38-4A Hydraulic Twin Head Tube Bender offers exceptional performance for bending symmetric tube parts up to 38mm, integrating advanced automation and precision. Designed for complex applications, it ensures accurate and repeatable bends with robust hydraulic operation.
Key Features:
- High-Tech Precision: Handles tubes up to 38mm with advanced hydraulic compression technology.
- Advanced Control System: Provides precise control and repeatable results.
- Durable and Reliable: Built to withstand heavy-duty industrial use.
- User-Friendly Interface: Features intuitive controls for easy operation.
Brand:
Alpine
Model:
CNC T38-4A
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Standard Machine and Accessories:
- Master IV Controller with 15″ color LCD Touch Screen: Easy programming and operation.
- Symmetric Bending Capability: Right and left-hand bending and multi-stack tooling.
- Patented Direct Drive A/C Servo Motor Bending Head: Minimizes interference and enhances accuracy.
- Tools for Measuring Push or Roll Bending Radius
- Unlimited Program Storage, Metric and Inch Setting, and XYZ to YBC Conversion
- Air Cooling System, Automatic Slide-way Lubrication, Foot Pedal Cycle Start, Wiper Die Bracket, and 3 Mandrel Rods
- Operation and Maintenance Manual, Tool Box with Tools, Customizable Electric Specs (3 phase 208V, 220V, 480V), and a Safety Mat
Upgrade Options:
- AMRU (Anticipate Mandrel Retraction Unit) and AML (Auto Mandrel Lubrication): For enhanced performance.
- Dynamic Visual Simulation Software: Provides collision protection.
- Safety Mat Connection, CE Mark, Safety Scanner, and a Free Standing Pedestal: Replaces the foot pedal.
[table “AlpineTSeries” not found /]
| MODEL | MAX TUBE O.D. | MAX BENDING RADIUS | MULTI TUBE BENDING - OD 3/4" | MULTI TUBE BENDING - OD 7/8" | MULTI TUBE BENDING - OD 1" | MULTI TUBE BENDING - OD 1-1/2" | OVERALL L X W X H | TOTAL WEIGHT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | mm | inch | pc | pc | pc | pc | mm | inch | kg | lbs | |
| T38 | 38.1 x 2.5 | 1.5 x 0.098 | 38 - 180 | 0..8 - 6.6 | 3600 | 4-Mar | 3-Feb | 2-Jan | 1900 x 1000 x 1500 | 174.8 x 39.4 x 59.1 | 1000 | 2200 | More Info |
| T50 | 50 x 2.0 | 2.0 x 0.063 | 40 - 250 | 1.57 - 9.84 | 5000 | 5-Apr | 4-Mar | 3-Feb | 2800 x 1400 x 1800 | 110.2 x 55.1 x 70.8 | 1800 | 3960 | More Info |
| T38-90 | 38.1 x 2.5 | 1.5 x 0.098 | 38 - 180 | 0.98 - 6.6 | 5000 | 4-Mar | 3-Feb | 1 | 1900 x 1000 x 1500 | 174.8 x 39.4 x 59.1 | 1000 | 2200 | More Info |
| CNCT38-4A | 38 x 2.5 | 1.5 x 0.098 | 38 - 180 | 1.5 - 6.6 | 6000 | 4-Mar | 3-Feb | 1 | 7000 x 1200 x 1500 | 275.6 x 47.2 x 59.1 | 2100 | 4620 | More Info |
| CNCT38-5A | 38 x 2.5 | 1.5 x 0.098 | 38 - 180 | 1.5 - 6.6 | 6000 | 4-Mar | 3-Feb | 1 | 7000 x 1200 x 1500 | 275.6 x 47.2 x 59.1 | 2200 | 4840 | More Info |
