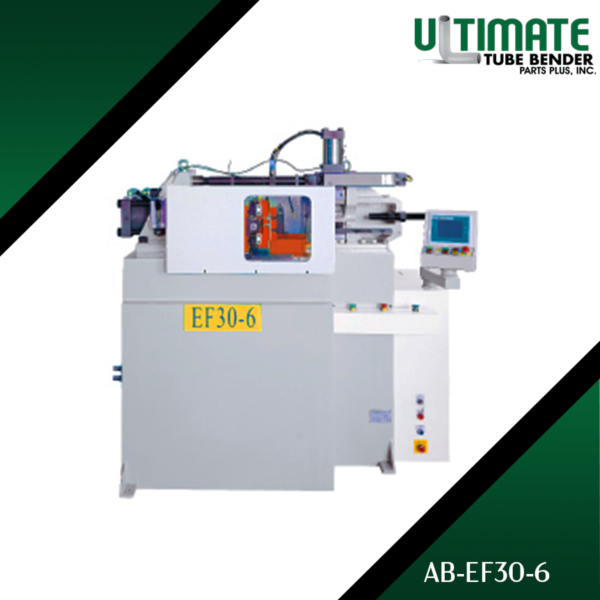

Alpine EF30-6 End Forming Machine
The Alpine EF30-6 End Forming Machine delivers superior performance in tube end forming, equipped with 6 forming stations and PLC control. Its robust construction and efficient feeding systems ensure accurate and reliable end forming for various industrial applications.
Key Features:
- High-Efficiency Forming: Features 6 forming stations for efficient tube end forming.
- Advanced PLC Control: Provides high accuracy and efficiency in forming operations.
- Compact and Robust Design: High rigidity construction minimizes ground space occupied.
- Efficient Feeding System: Driven by an AC Servo Motor with patented planetary gear design.
- Durable Cutting Head: Compact and rigid design extends saw life and reduces costs.
- Unique Clamping System: Prevents damage to tube surfaces and ensures no sliding.
- Versatile Operation: Can be operated manually, semi-automatically, or fully automatically.
Brand:
Alpine
Model:
EF30-6
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!
Machine Specifications:
- Vertical Movement: Linear rail on cutting head for precise movement.
- Overload Protection: Programmable cutting motor overload protection.
- Cost-Saving Features: Patented end compensation feeding device (optional).
- Monitoring and Safety: Automatic monitoring, limit switch protection, and multiple protection devices.
- Adjustable Lengths: Set up to 5 different lengths in the same program.
- Air Cooling System: Ensures stable machine operation.
- Foot Pedal Control: Movable foot pedal control with emergency stopper for safety.
| MODEL | MAX TUBE O.D. | NUMBER OF FORMING STATION | FORM STOKE LENGTH | FORM PITCH | OVERALL L X W X H | TOTAL WEIGHT | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNIT | mm | inch | hits | inch | pc | pc | pc | pc | mm | inch | kg | lbs | |
| EF30-3 | 30 | 1.18 | 3 | 3 | 100 | 3.94 | 55 | 2.17 | 1850 x 1100 x 1700 | 72.83 x 43.3 x 66.9 | 1100 | 2420 | More Info |
| EF30-6 | 30 | 1.18 | 6 | 6 | 100 | 3.94 | 55 | 2.17 | 1850 x 1100 x 1700 | 72.83 x 43.3 x 66.9 | 1100 | 2420 | More Info |
| EF50-6 | 50 | 1.97 | 6 | 6 | 100 | 3.94 | 55 | 2.17 | 2200 x 1160 x 1800 | 85.6 x 45.7 x 70.8 | 2000 | 4400 | More Info |
