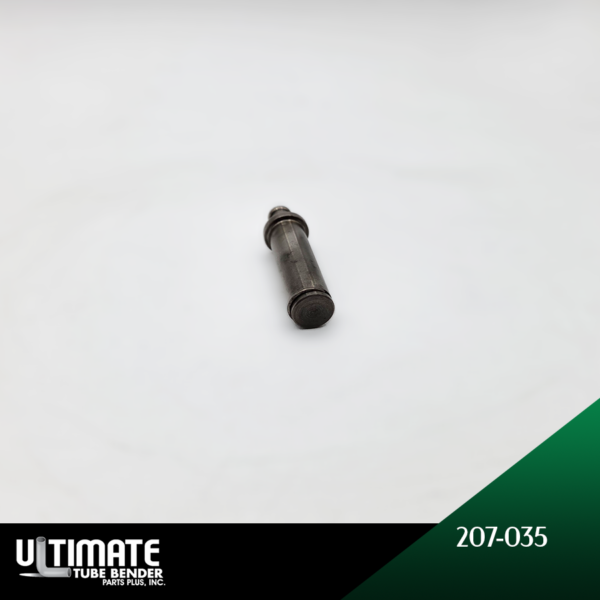

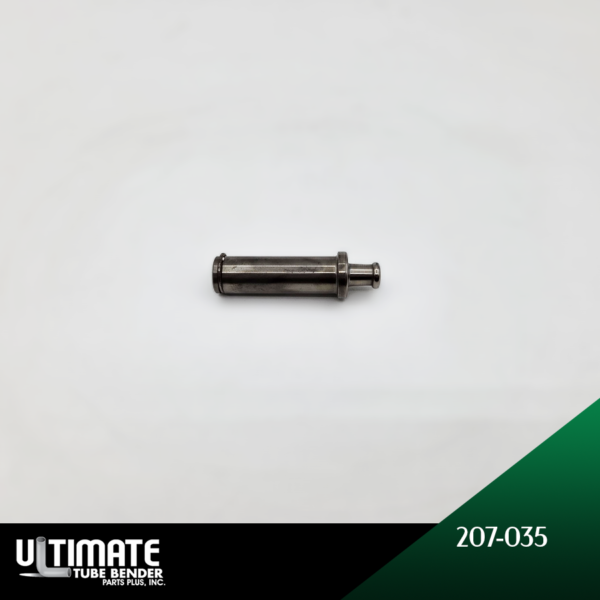

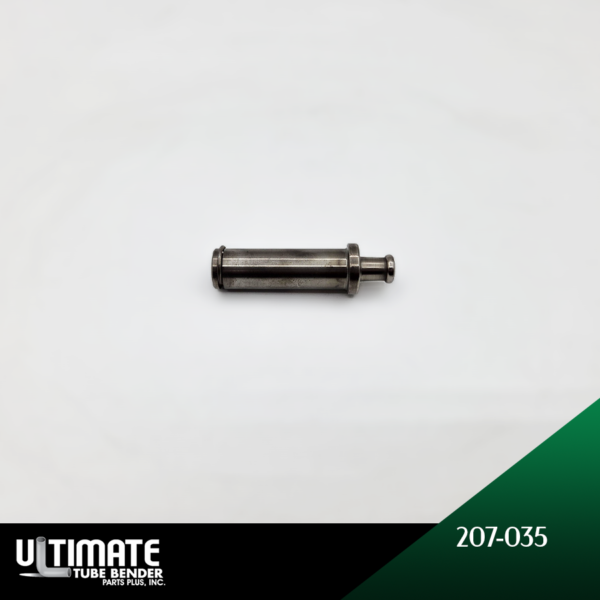

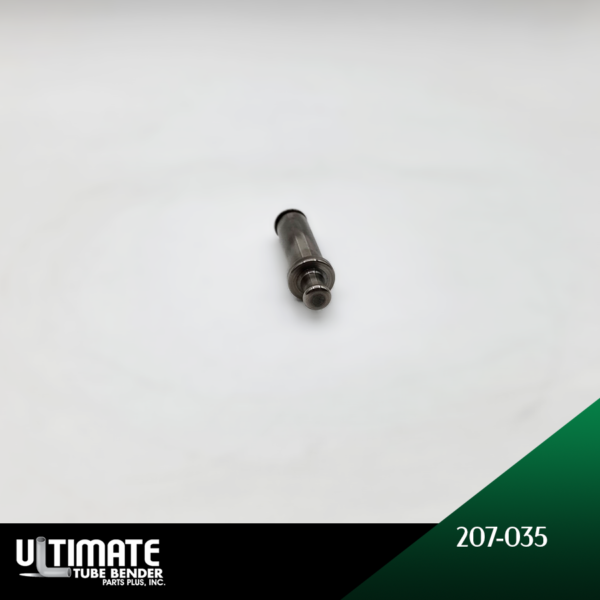

Bead Arbor – 200 Series – 207-035 | 0.4375 TOD x .035 Wall
Bead Arbor that rolls a clean retaining bead into 7/16″ (0.438″ decimal) tubing, 035 wall for secure hose connections.
In stock
Brand:
Various
Model:
200 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Arbor shapes 7/16″ (0.438″ decimal) tube, around 035 wall thickness, into a raised bead that keeps hose from sliding off the tube end during service. It is designed to run alongside its matching arbor or die on the beading head, forming the bead in a single pass. Reliable, repeatable bead geometry makes this tool a staple in end finisher tooling inventories. It is part of the 200 series; compatible with 2C, 2CP, 2CPV, 3CPV tube end forming machines, and is a good fit for shops standardizing their hydraulic end-forming tooling.
Series: 200
Tube Outside Diameter (TOD) -Fractional Inches: 7/16″
Tube Outside Diameter (TOD) – Decimal Inches: 0.438
Tip No: 207
Wall Thickness: 035
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV
