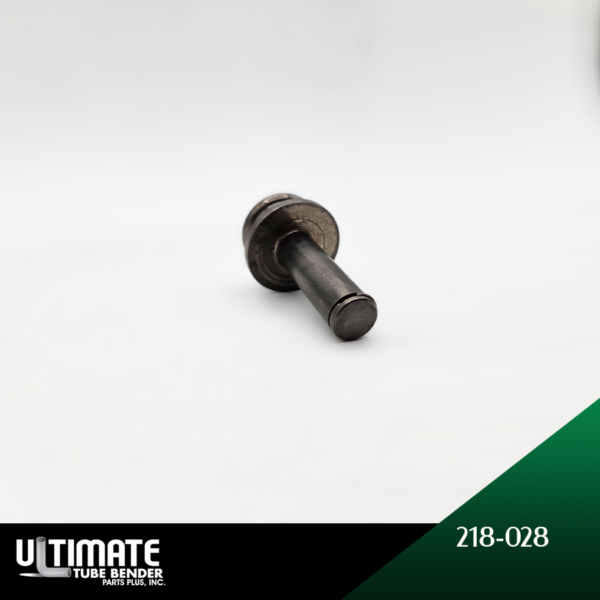

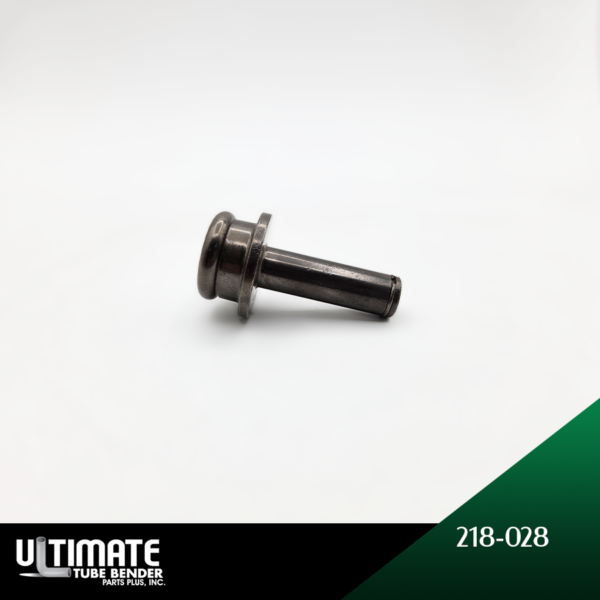

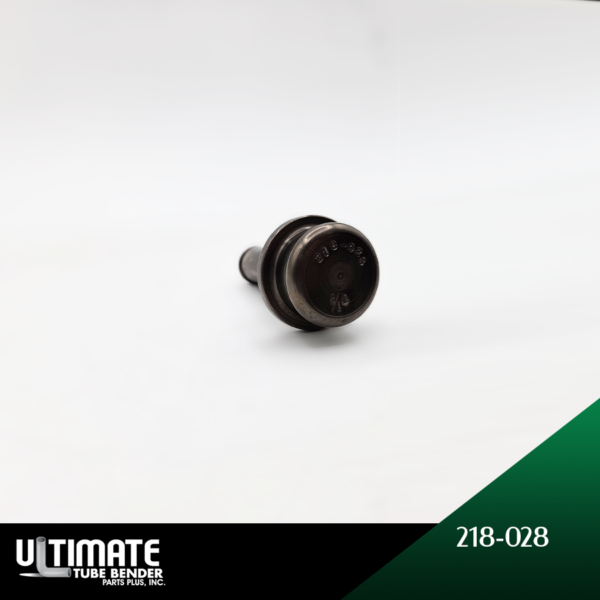

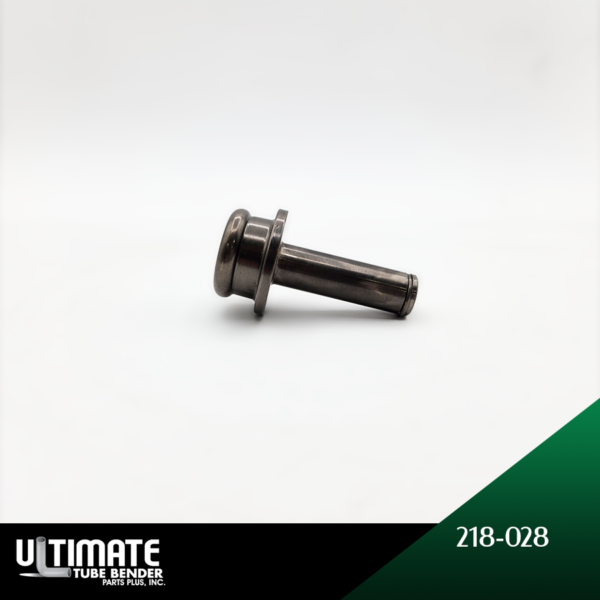

Bead Arbor – 200 Series – 218-028 | 1.125 TOD x .028 Wall
Precision Bead Arbor for 1-1/8″ (1.125″ decimal) tube, 028 wall, built for consistent tube end finishing bead work.
In stock
Brand:
Various
Model:
200 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
Sized for 1-1/8″ (1.125″ decimal) tube, around 028 wall thickness, this Bead Arbor forms a clean, even bead used to lock hose or coupling connections in place. Because the bead height directly affects hose retention, this tool is machined to hold tight dimensional control from part to part. It is a core component in tube end finishing setups for automotive, HVAC, and industrial hose assemblies. It is part of the 200 series; compatible with 2C, 2CP, 2CPV, 3CPV tube end forming machines, and is a good fit for shops standardizing their tube end finishing tooling.
Series: 200
Tube Outside Diameter (TOD) -Fractional Inches: 1-1/8″
Tube Outside Diameter (TOD) – Decimal Inches: 1.125
Tip No: 218
Wall Thickness: 028
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV
