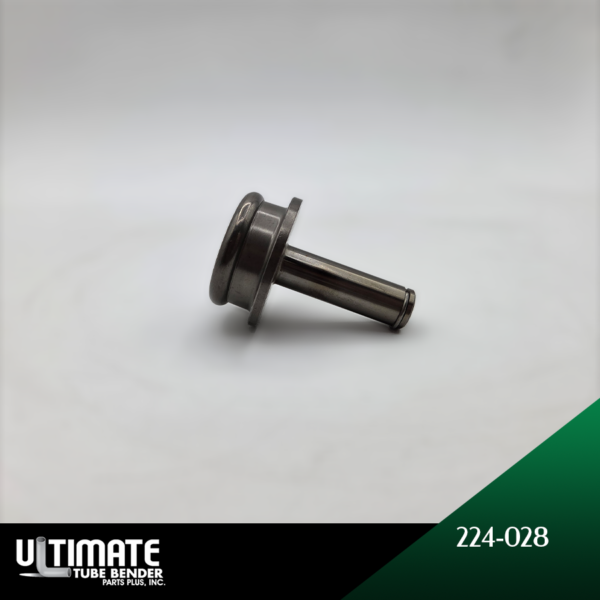

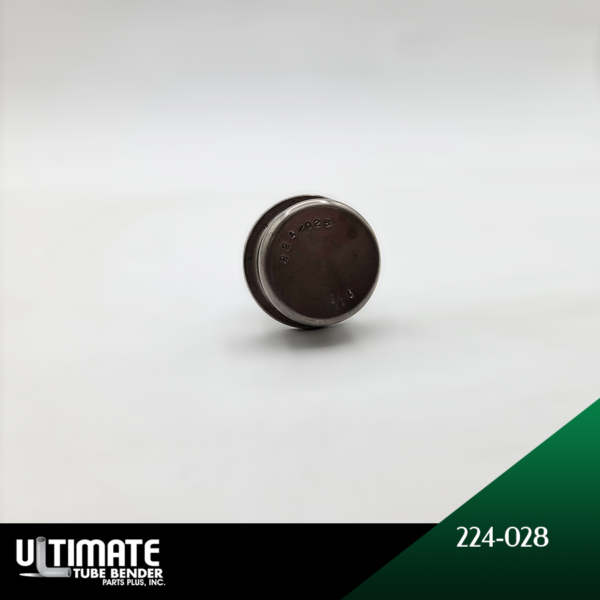

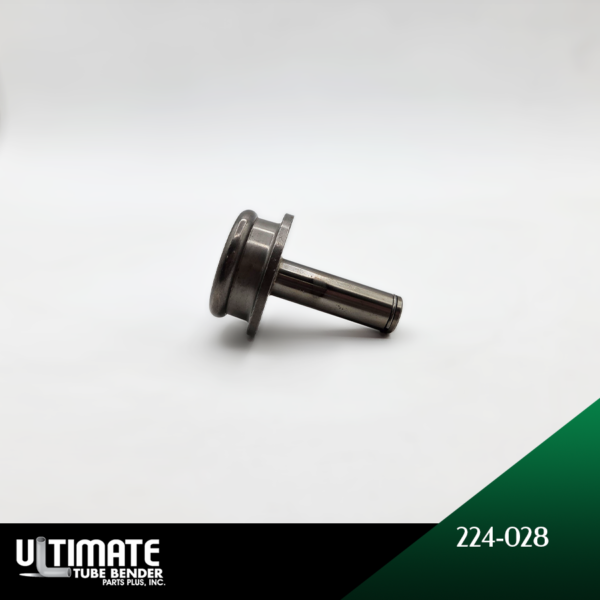

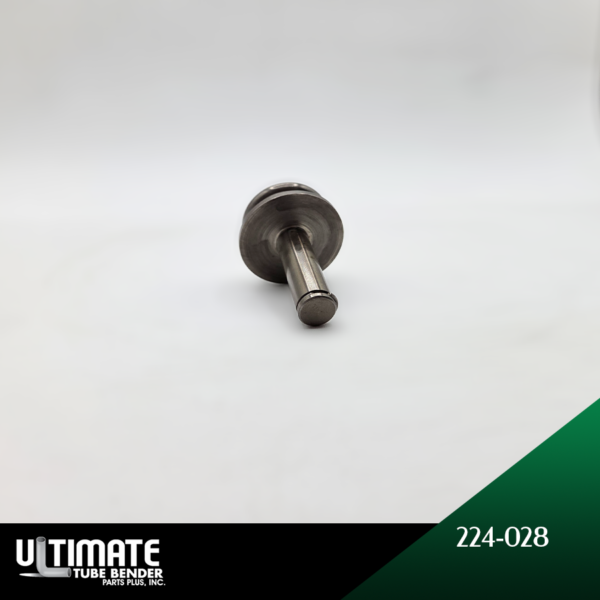

Bead Arbor – 200 Series – 224-028 | 1.5 TOD x .028 Wall
Bead Arbor sized for 1-1/2″ (1.500″ decimal) OD tube, 028 wall, forming a uniform bead for hose-clamp retention.
In stock
Brand:
Various
Model:
200 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Arbor shapes 1-1/2″ (1.500″ decimal) tube, around 028 wall thickness, into a raised bead that keeps hose from sliding off the tube end during service. It is designed to run alongside its matching arbor or die on the beading head, forming the bead in a single pass. Reliable, repeatable bead geometry makes this tool a staple in tube and pipe end-forming tooling inventories. It is part of the 200 series; compatible with 2C, 2CP, 2CPV, 3CPV tube end forming machines, and is a good fit for shops standardizing their hydraulic end-forming tooling.
Series: 200
Tube Outside Diameter (TOD) -Fractional Inches: 1-1/2″
Tube Outside Diameter (TOD) – Decimal Inches: 1.500
Tip No: 224
Wall Thickness: 028
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV
