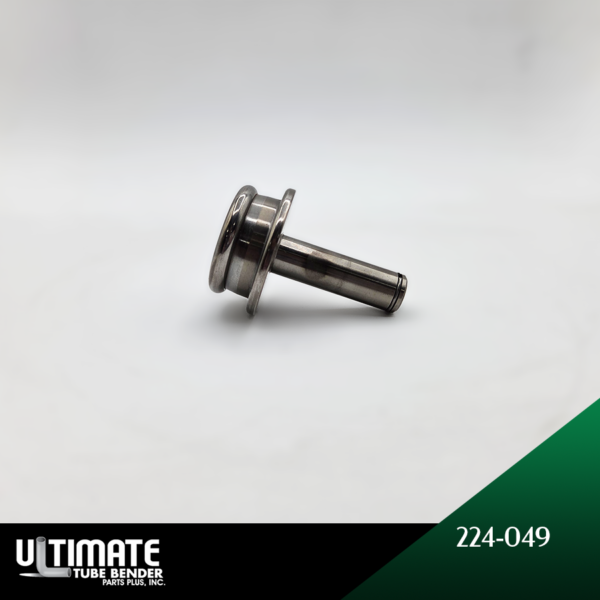

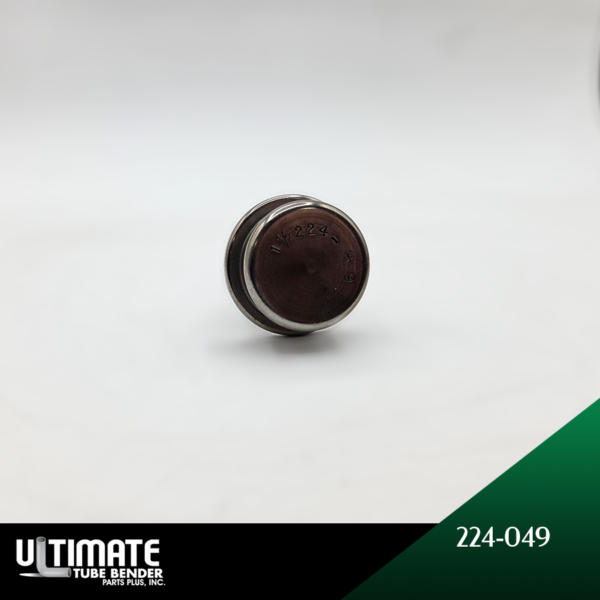

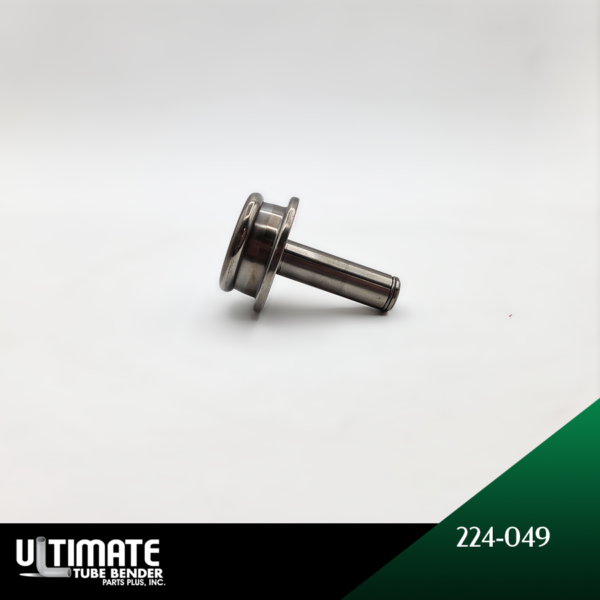

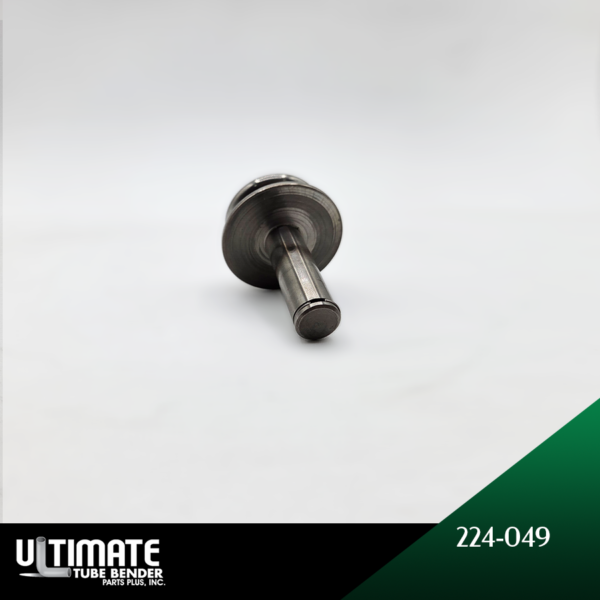

Bead Arbor – 200 Series – 224-049 | 1.5 TOD x .049 Wall
Bead Arbor that rolls a clean retaining bead into 1-1/2″ (1.500″ decimal) tubing, 049 wall for secure hose connections.
In stock
Brand:
Various
Model:
200 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
Sized for 1-1/2″ (1.500″ decimal) tube, around 049 wall thickness, this Bead Arbor forms a clean, even bead used to lock hose or coupling connections in place. Because the bead height directly affects hose retention, this tool is machined to hold tight dimensional control from part to part. It is a core component in tube and pipe end-forming setups for automotive, HVAC, and industrial hose assemblies. It is part of the 200 series; compatible with 2C, 2CP, 2CPV, 3CPV tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 200
Tube Outside Diameter (TOD) -Fractional Inches: 1-1/2″
Tube Outside Diameter (TOD) – Decimal Inches: 1.500
Tip No: 224
Wall Thickness: 049
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV
