Bead Die 2100 Series – 2105 | 0.3125 TOD

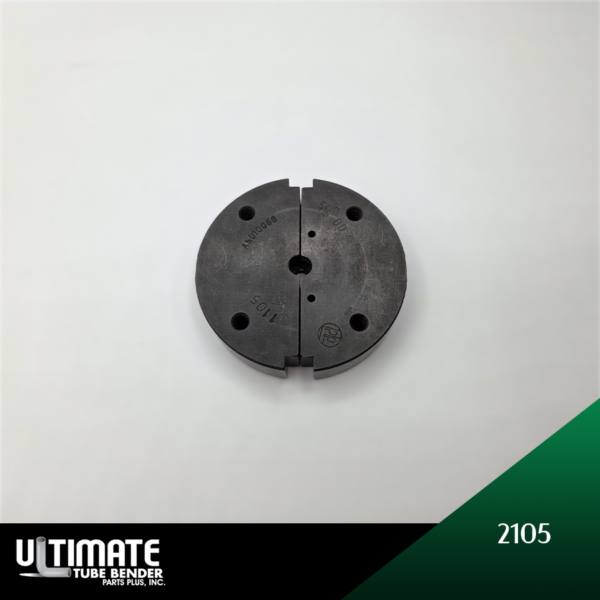

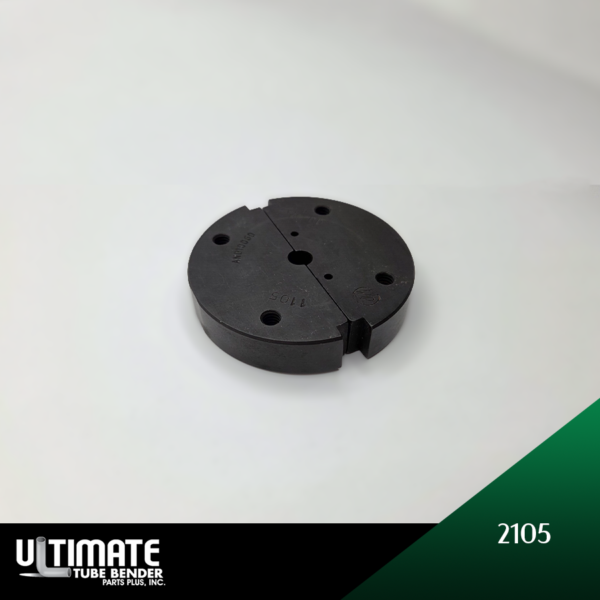

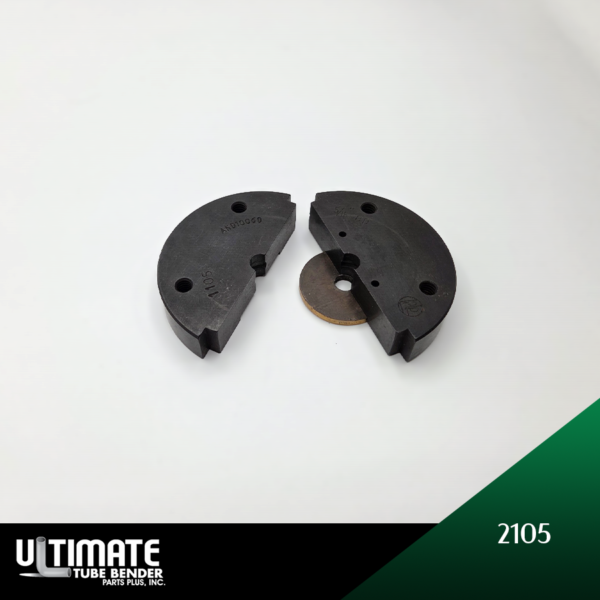

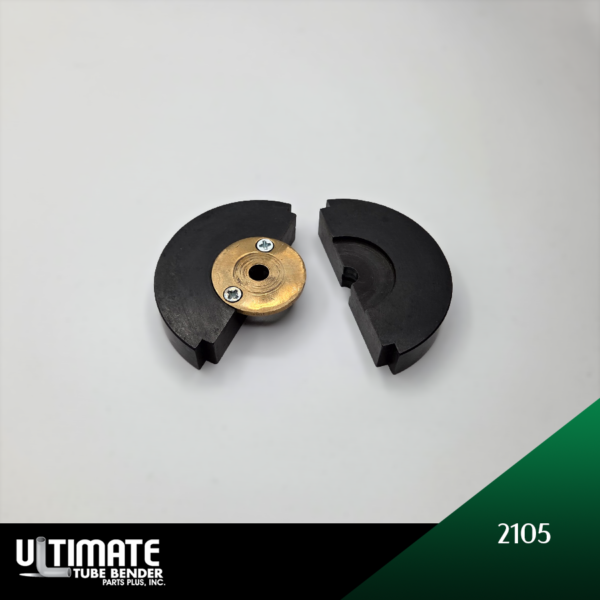

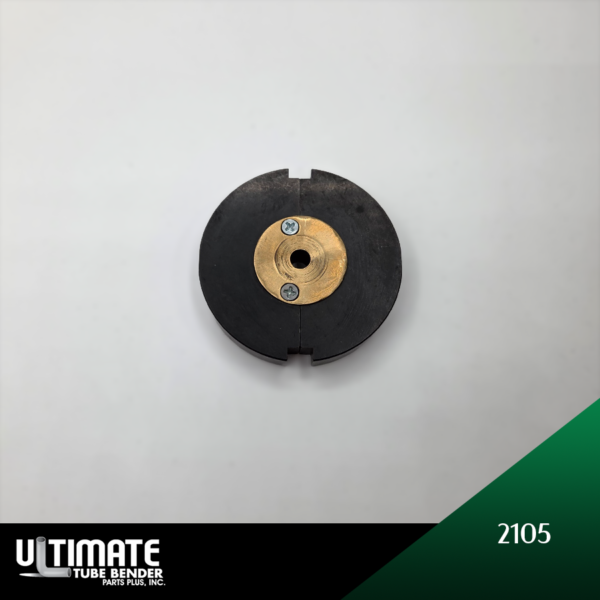

Bead Die sized for 5/16″ (0.313″ decimal) OD tube, forming a uniform bead for hose-clamp retention.
In stock
Brand:
Various
Model:
2100 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Die rolls a uniform retaining bead into 5/16″ (0.313″ decimal) tubing giving hose or sleeve connections a positive stop that resists blow-off under pressure. The bead profile is sized to match standard hose-clamp geometry, so parts come off the machine ready for assembly without secondary work. It is built for hydraulic end-forming production where bead height and location need to stay consistent across large batches. It is part of the 2100 series; compatible with 2C, 2CP, 2CPV, 3CPV w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube end finishing tooling.
Series: 2100
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 5/16″
Tube Outside Diameter (TOD) – Decimal Inches: 0.313
Grip (G) Fractional Inches: 1/2″
Grip (G) Decimal Inches: 0.500
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV w/ die adaptor
| Tool Diameter | Tube Outside Diameter (TOD) - Inches | Tube Outside Diameter (TOD) - Decimal | Degrees | Thickness (T) | Grip (G) - Inches | Grip (G) - Decimal | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool | Machine Compatibility |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 1/4" | 0.25 | 0 | 0 | 1/2" | 0.5 | 2104 | CL2104 | 202104 | 2104 | DEW 2104 | 2C, 2CP, 3CP w/ die adaptor |
| 3" | 5/16" | 0.3125 | 0 | 0 | 1/2" | 0.5 | 2105 | CL2105 | 202105 | 2105 | DEW 2105 | 2C, 2CP, 3CP w/ die adaptor |
| 3" | 3/8" | 0.375 | 0 | 0 | 1/2" | 0.5 | 2106 | CL2106 | 202106 | 2106 | DEW 2106 | 2C, 2CP, 3CP w/ die adaptor |
