Bead Die 2200 Series – 2222 | 1.375 TOD
Bead Die sized for 1-3/8″ (1.375″ decimal) OD tube, forming a uniform bead for hose-clamp retention.
Only 1 left in stock
Brand:
Various
Model:
2200 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!

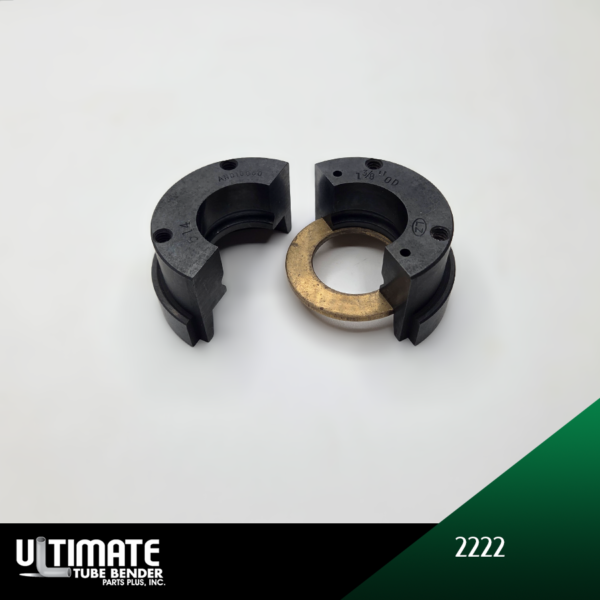

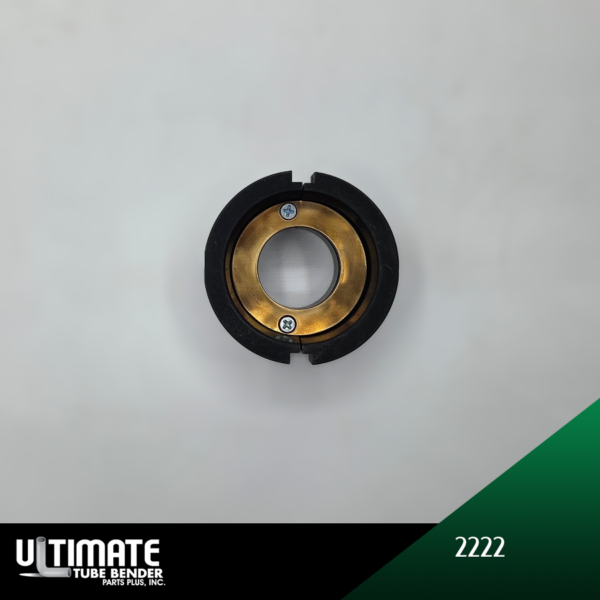

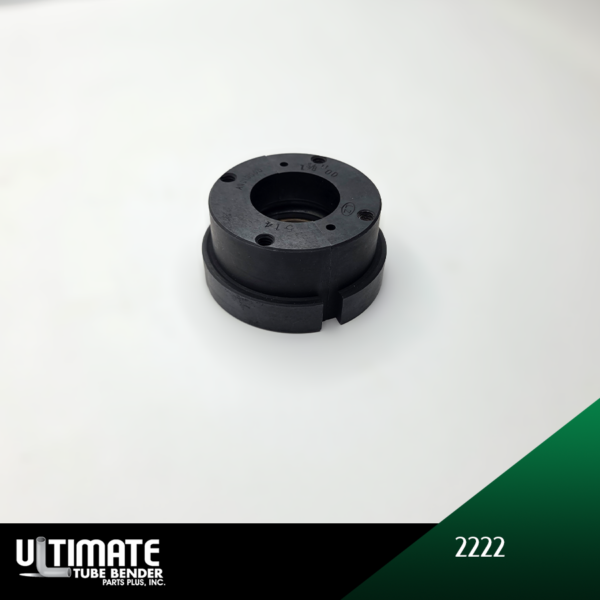

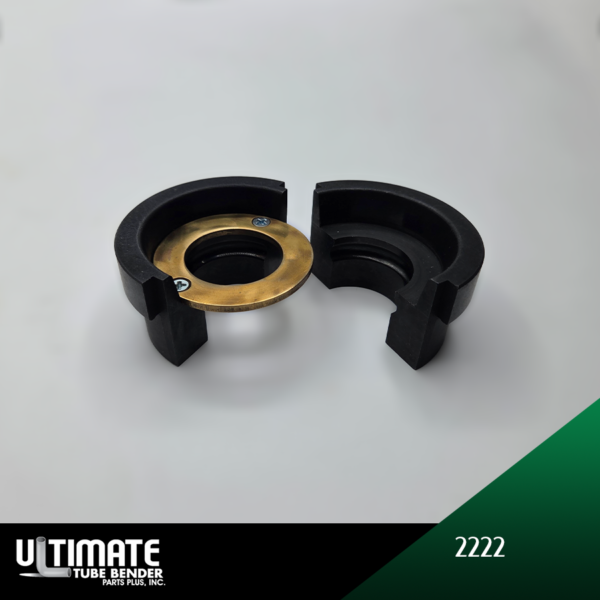

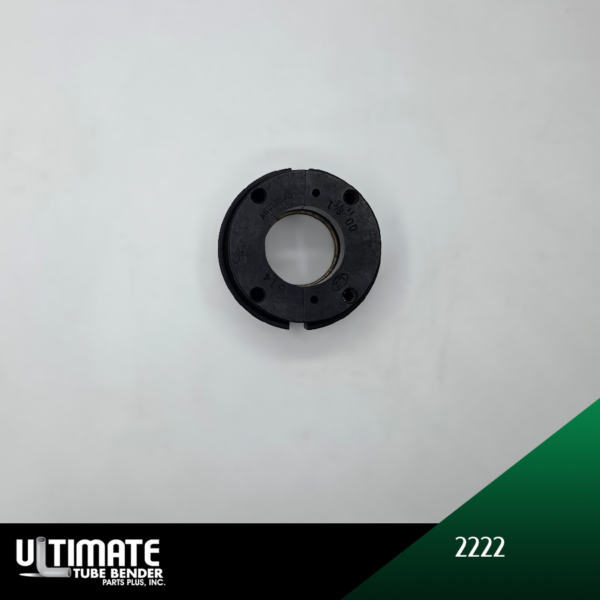

This Bead Die rolls a uniform retaining bead into 1-3/8″ (1.375″ decimal) tubing giving hose or sleeve connections a positive stop that resists blow-off under pressure. The bead profile is sized to match standard hose-clamp geometry, so parts come off the machine ready for assembly without secondary work. It is built for tube end forming production where bead height and location need to stay consistent across large batches. It is part of the 2200 series; compatible with 2C, 2CP, 2CPV, 3CPV w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 2200
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 1-3/8″
Tube Outside Diameter (TOD) – Decimal Inches: 1.375
Grip (G) Fractional Inches: 1″
Grip (G) Decimal Inches: 1.000
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV w/ die adaptor
| Tool Diameter | Tube Outside Diameter (TOD) - Inches | Tube Outside Diameter (TOD) - Decimal | Degrees | Thickness (T) | Grip (G) | G Decimal | D | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool | Machine Compatibility | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 7/16" | 0.4375 | 0 | 0 | 1" | 1 | 0 | 2207 | CL2207 | 202107 | 2207 | DEW 2207 | 2C, 2CP, 3CP w/ die adaptor | ||
| 3" | 1/2" | 0.5 | 0 | 0 | 1" | 1 | 0 | 2208 | CL2208 | 202108 | 2208 | DEW 2208 | 2C, 2CP, 3CP w/ die adaptor | ||
| 3" | 5/8" | 0.625 | 0 | 0 | 1" | 1 | 0 | 2210 | CL2210 | 202110 | 2210 | DEW 2210 | 2C, 2CP, 3CP w/ die adaptor | ||
| 3" | 3/4" | 0.75 | 0 | 0 | 1" | 1 | 0 | 2212 | CL2212 | 202112 | 2212 | DEW 2212 | 2C, 2CP, 3CP w/ die adaptor | ||
| 3" | 7/8" | 0.875 | 0 | 0 | 1" | 1 | 0 | 2214 | CL2214 | 202114 | 2214 | DEW 2214 | 2C, 2CP, 3CP w/ die adaptor | ||
| 3" | 1" | 1 | 0 | 0 | 1" | 1 | 0 | 2216 | CL2216 | 202116 | 2216 | DEW 2216 | 2C, 2CP, 3CP w/ die adaptor | ||
| 3" | 1 1/8" | 1.125 | 0 | 0 | 1" | 1 | 0 | 2218 | CL2218 | 202118 | 2218 | DEW 2218 | 2C, 2CP, 3CP w/ die adaptor | ||
| 3" | 1 1/4" | 1.25 | 0 | 0 | 1" | 1 | 0 | 2220 | CL2220 | 202120 | 2220 | DEW 2220 | 2C, 2CP, 3CP w/ die adaptor | ||
| 3" | 1 3/8" | 1.375 | 0 | 0 | 1" | 1 | 0 | 2222 | CL2222 | 202122 | 2222 | DEW 2222 | 2C, 2CP, 3CP w/ die adaptor | ||
| 3" | 1 1/2" | 1.5 | 0 | 0 | 1" | 1 | 0 | 2224 | CL2224 | 202124 | 2224 | DEW 2224 | 2C, 2CP, 3CP w/ die adaptor |
