Bead Die 2200 Series – 2224 | 1.5 TOD

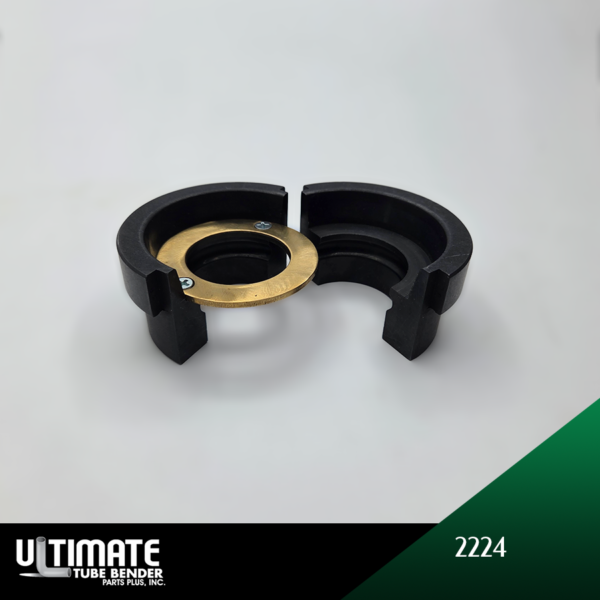

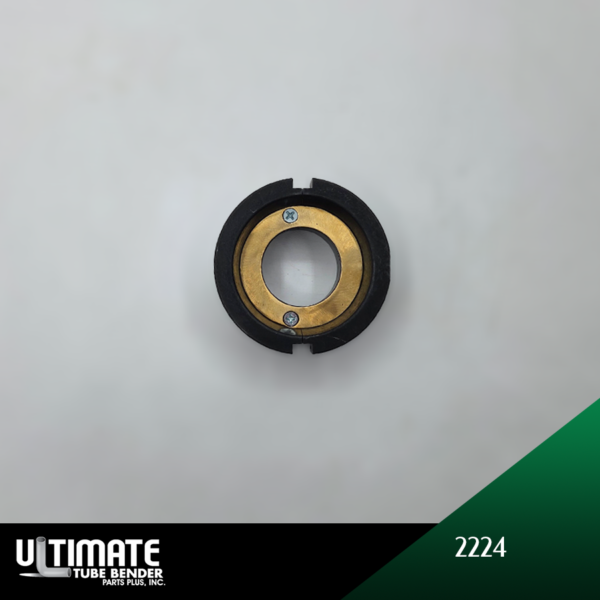

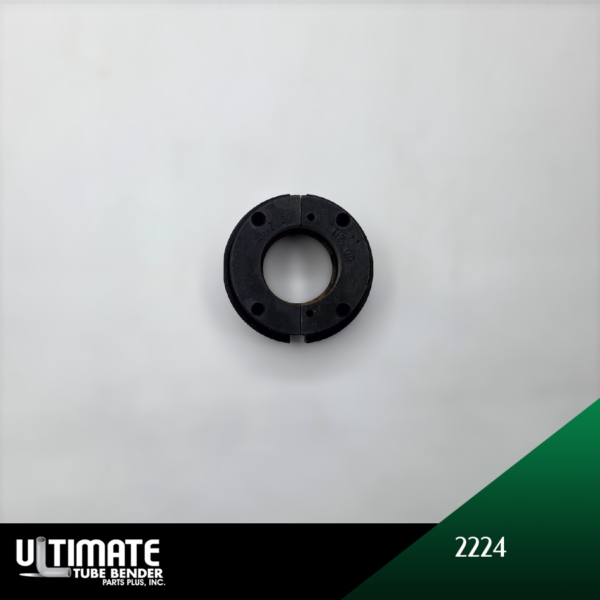

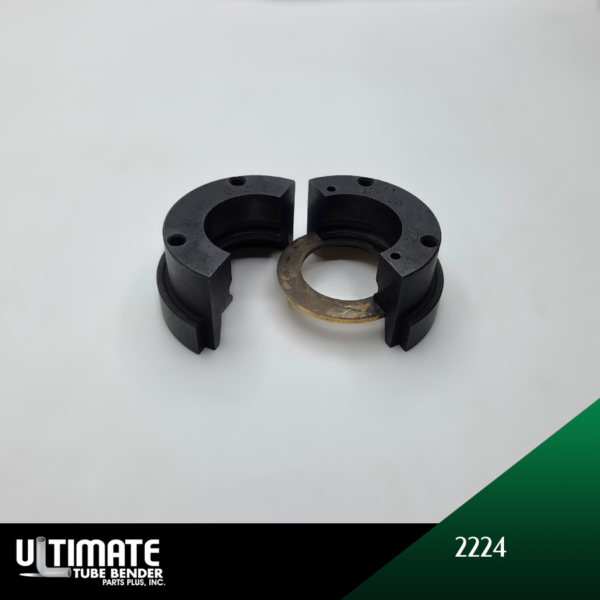

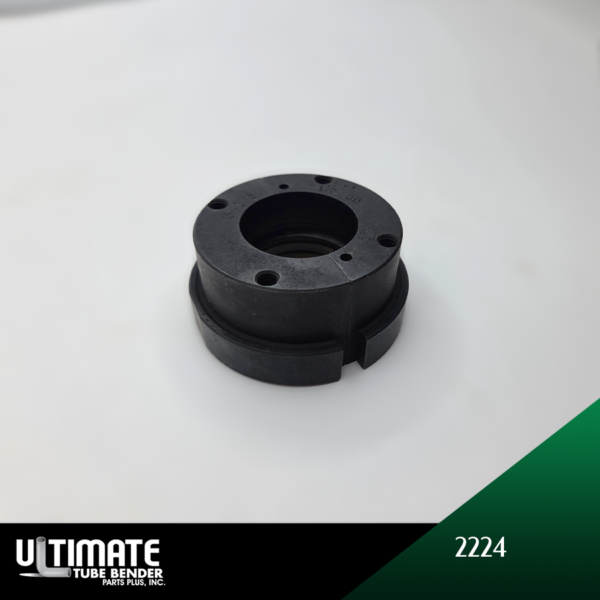

Bead Die that shapes a raised bead on 1-1/2″ (1.500″ decimal) tubing to keep hose from slipping off the end.
In stock
Brand:
Various
Model:
2200 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Die shapes 1-1/2″ (1.500″ decimal) tube into a raised bead that keeps hose from sliding off the tube end during service. It is designed to run alongside its matching arbor or die on the beading head, forming the bead in a single pass. Reliable, repeatable bead geometry makes this tool a staple in pipe end finishing tooling inventories. It is part of the 2200 series; compatible with 2C, 2CP, 2CPV, 3CPV w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 2200
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 1-1/2″
Tube Outside Diameter (TOD) – Decimal Inches: 1.500
Grip (G) Fractional Inches: 1″
Grip (G) Decimal Inches: 1.000
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV w/ die adaptor
| Tool Diameter | Tube Outside Diameter (TOD) - Inches | Tube Outside Diameter (TOD) - Decimal | Degrees | Thickness (T) | Grip (G) | G Decimal | D | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool | Machine Compatibility | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
