Bead Die 3400 Series – 3440 | 2.5 TOD

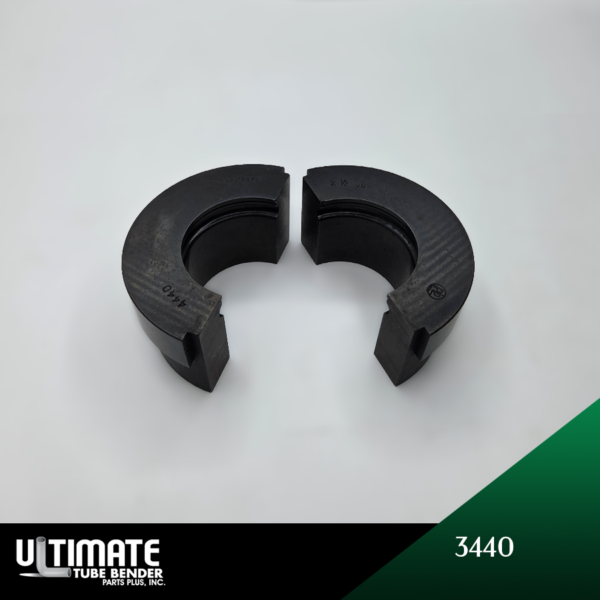

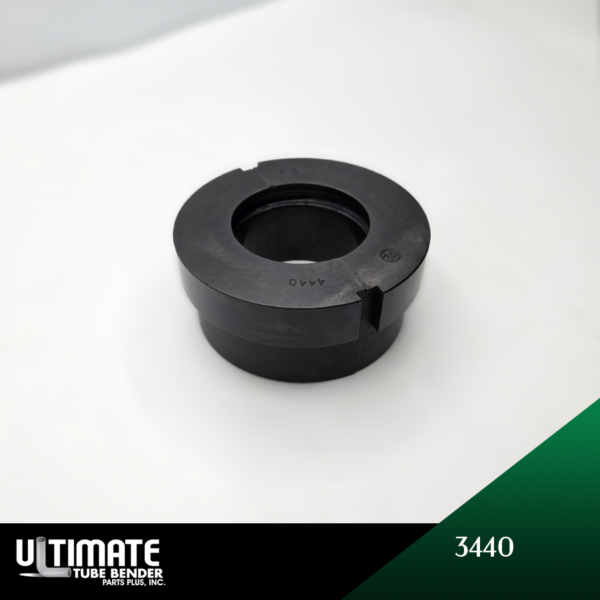

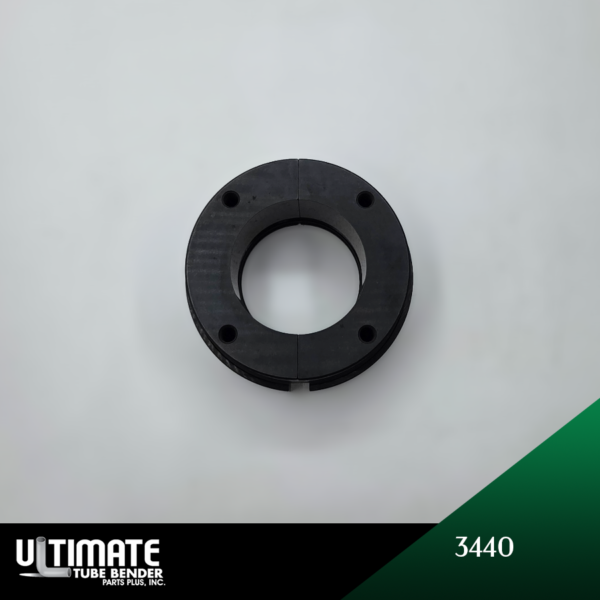

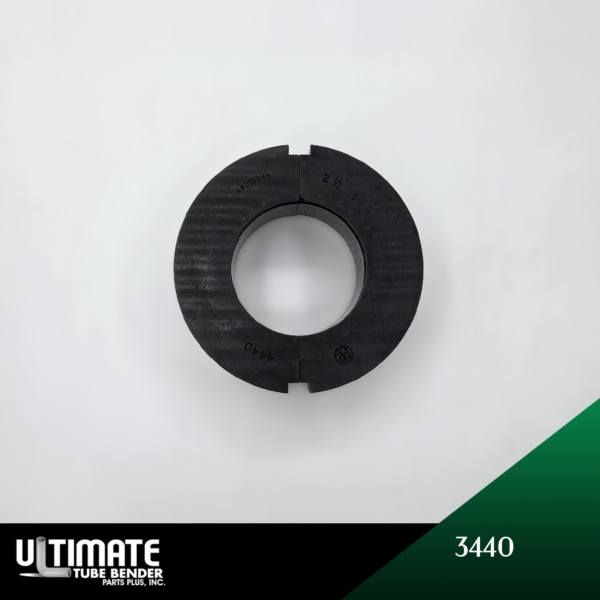

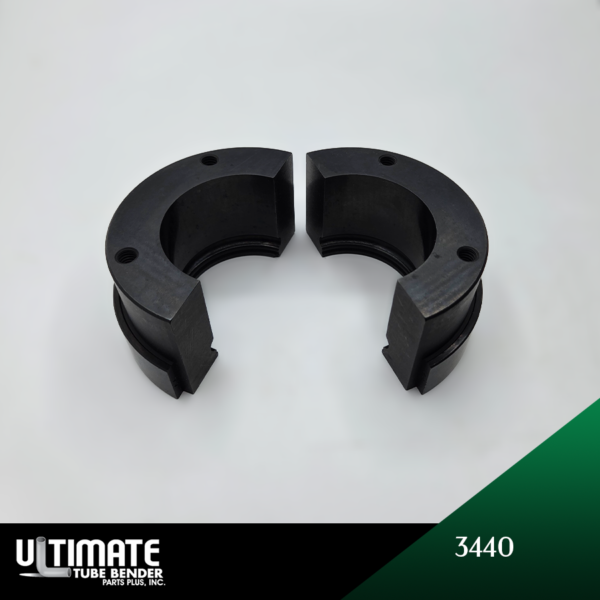

Bead Die that rolls a clean retaining bead into 2-1/2″ (2.500″ decimal) tubing for secure hose connections.
In stock
Brand:
Various
Model:
3400 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
Sized for 2-1/2″ (2.500″ decimal) tube this Bead Die forms a clean, even bead used to lock hose or coupling connections in place. Because the bead height directly affects hose retention, this tool is machined to hold tight dimensional control from part to part. It is a core component in tube end finishing setups for automotive, HVAC, and industrial hose assemblies. It is part of the 3400 series; compatible with 3CPV tube end forming machines, and is a good fit for shops standardizing their tube end finishing tooling.
Series: 3400
Tool Diameter – H: 4.5″
Tube Outside Diameter (TOD) -Fractional Inches: 2-1/2″
Tube Outside Diameter (TOD) – Decimal Inches: 2.500
Grip (G) Fractional Inches: 1.9″
Grip (G) Decimal Inches: 1.900
Machine Compatibility: 3CPV
| Tool Diameter | Tube Outside Diameter (TOD) - Inches | Tube Outside Diameter (TOD) - Decimal | Degrees | Thickness (T) | Grip (G) | G Decimal | D | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool | Machine Compatibility | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.5" | 1 5/8" | 1.625 | 0 | 0 | 1.9" | 1.9 | 0 | 3426 | CL3426 | 109430-001 | 3426 | DEW3426 | 3CP | ||
| 4.5" | 1 3/4" | 1.75 | 0 | 0 | 1.9" | 1.9 | 0 | 3428 | CL3428 | 109430-002 | 3428 | DEW 3428 | 3CP | ||
| 4.5" | 1-7/8" | 1.875 | 0 | 0 | 1.9" | 1.9 | 0 | 3430 | CL3430 | 109430-003 | 3430 | DEW3430 | 3CP | ||
| 4.5" | 2" | 2 | 0 | 0 | 1.9" | 1.9 | 0 | 3432 | CL3432 | 109430-004 | 3432 | DEW 3432 | 3CP | ||
| 4.5" | 2 1/4" | 2.25 | 0 | 0 | 1.9" | 1.9 | 0 | 3436 | CL3436 | 109430-005 | 3436 | DEW 3436 | 3CP | ||
| 4.5" | 2 1/2" | 2.5 | 0 | 0 | 1.9" | 1.9 | 0 | 3440 | CL3440 | 109430-007 | 3440 | DEW 3440 | 3CP | ||
| 4.5" | 2 3/4" | 2.75 | 0 | 0 | 1.9" | 1.9 | 0 | 3444 | CL3444 | 109430-008 | 3444 | DEW 3444 | 3CP | ||
| 4.5" | 3" | 3 | 0 | 0 | 1.9" | 1.9 | 0 | 3448 | CL3448 | 109430-009 | 3448 | DEW 3448 | 3CP |
