Bead Die 3500 Series – 3524 | 1.5 TOD

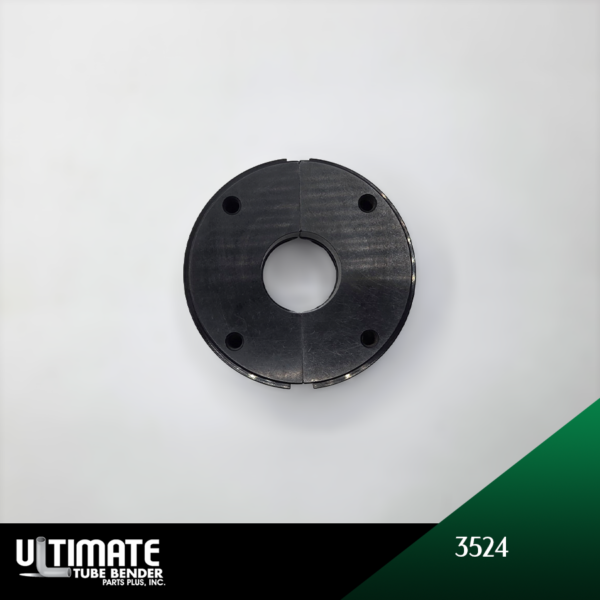

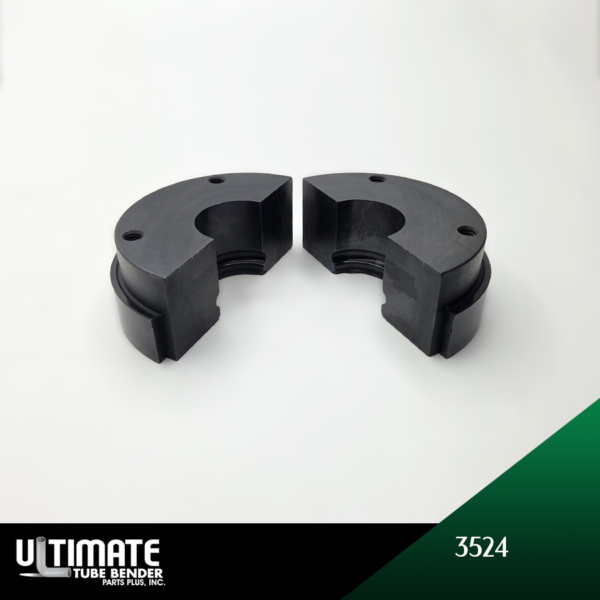

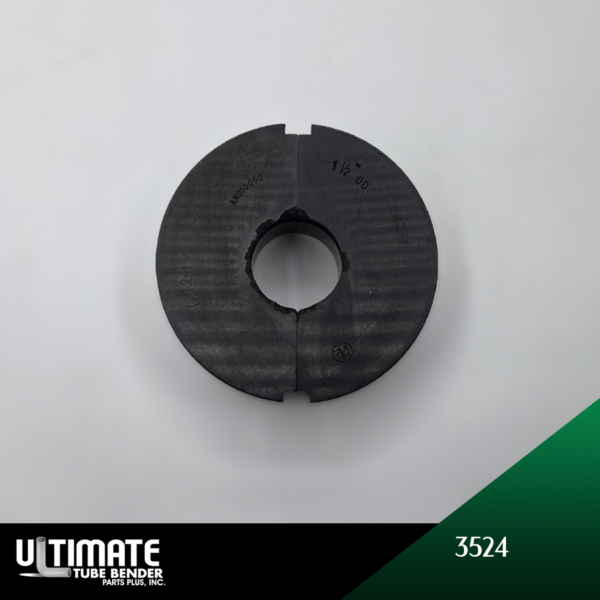

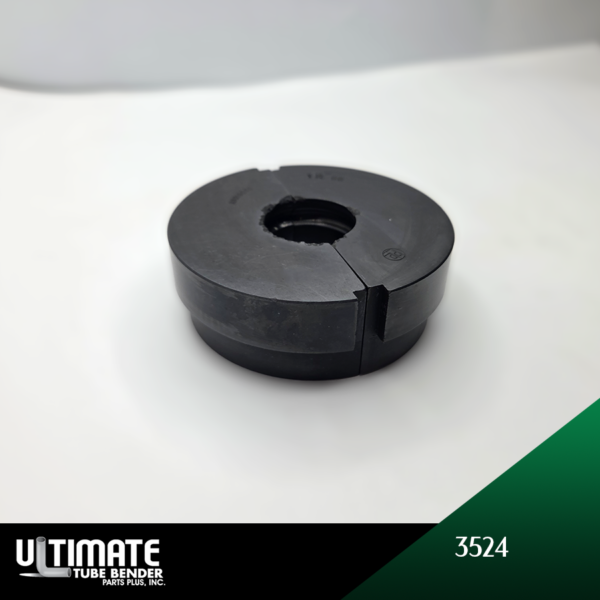

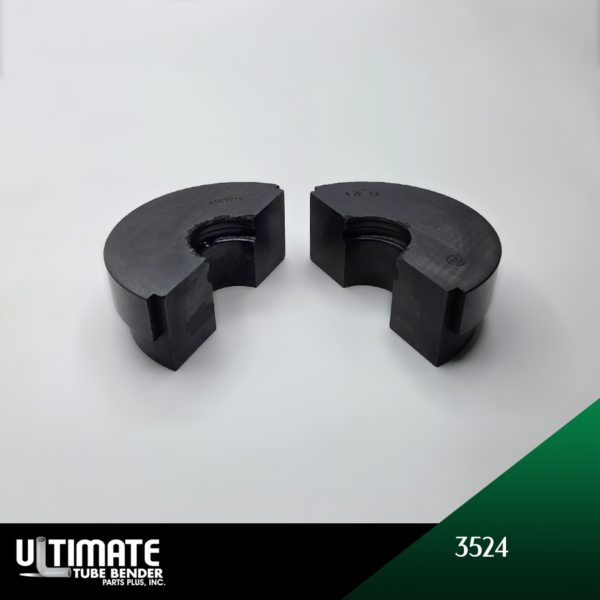

Bead Die sized for 1-1/2″ (1.500″ decimal) OD tube, forming a uniform bead for hose-clamp retention.
Only 1 left in stock
Brand:
Various
Model:
3500 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Die rolls a uniform retaining bead into 1-1/2″ (1.500″ decimal) tubing giving hose or sleeve connections a positive stop that resists blow-off under pressure. The bead profile is sized to match standard hose-clamp geometry, so parts come off the machine ready for assembly without secondary work. It is built for tube end forming production where bead height and location need to stay consistent across large batches. It is part of the 3500 series; compatible with 8CP w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 3500
Tool Diameter – H: 4.5″
Tube Outside Diameter (TOD) -Fractional Inches: 1-1/2″
Tube Outside Diameter (TOD) – Decimal Inches: 1.500
Thickness (T): 1.9″
Machine Compatibility: 8CP w/ die adaptor
| Tool Diameter | Tube Outside Diameter (TOD) - Inches | Tube Outside Diameter (TOD) - Decimal | Grip (G) | G Decimal | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool | Machine Compatibility |
|---|---|---|---|---|---|---|---|---|---|---|
| 4.5" | 1-1/4" | 1.25 | 1.9" | 1.9 | 3520 | CL3520 | 109467-020 | 3520 | DEW3520 | 8CP w/ die adaptor |
| 4.5" | 1 3/8" | 1.375 | 1.9" | 1.9 | 3522 | CL3522 | 109467-022 | 3522 | DEW3522 | 8CP w/ die adaptor |
| 4.5" | 1-1/2" | 1.5 | 1.9" | 1.9 | 3524 | CL3524 | 109467-024 | 3524 | DEW3524 | 8CP w/ die adaptor |
| 4.5" | 1 5/8" | 1.625 | 1.9" | 1.9 | 3526 | CL3426 | 109467-026 | 3426 | DEW 3426 | 8CP w/ die adaptor |
| 4.5" | 1 3/4" | 1.75 | 1.9" | 1.9 | 3528 | CL3528 | 109467-028 | 3528 | DEW3528 | 8CP w/ die adaptor |
