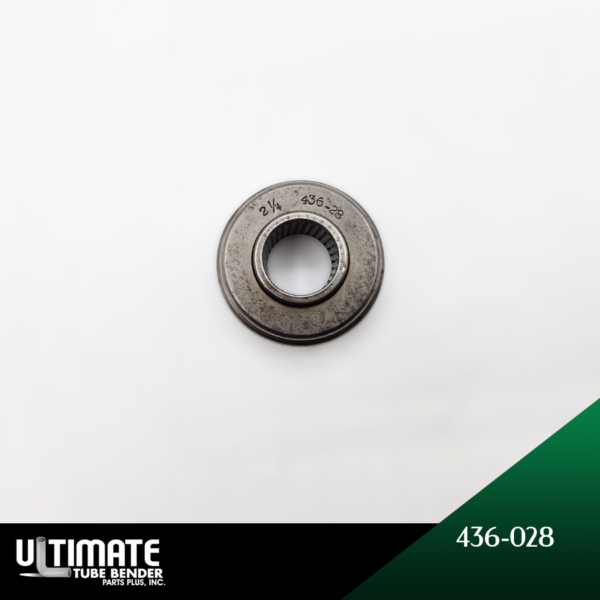

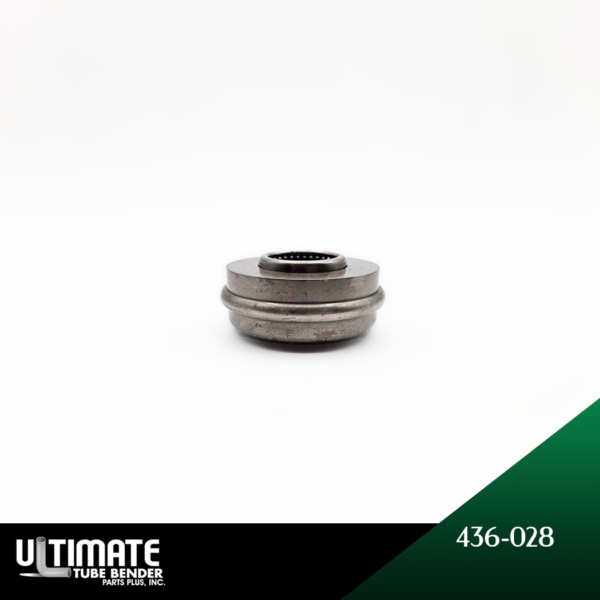

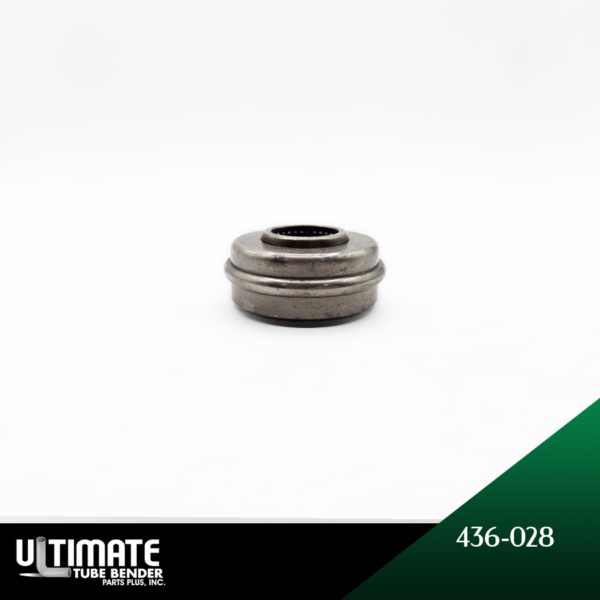

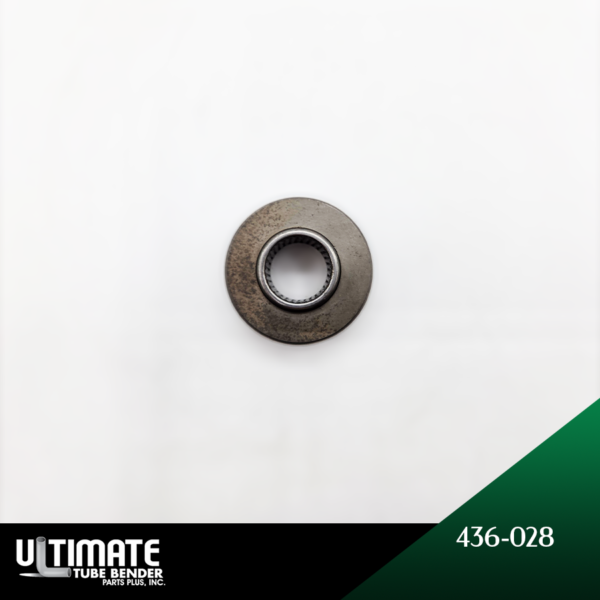

Bead Roller – 400 Series – 436-028 | 2.25 TOD x .028 Wall
Bead Roller that rolls a clean retaining bead into 2-1/4″ (2.250″ decimal) tubing, 028 wall for secure hose connections.
Only 1 left in stock
Brand:
Various
Model:
400 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Roller shapes 2-1/4″ (2.250″ decimal) tube, around 028 wall thickness, into a raised bead that keeps hose from sliding off the tube end during service. It is designed to run alongside its matching arbor or die on the beading head, forming the bead in a single pass. Reliable, repeatable bead geometry makes this tool a staple in end finisher tooling inventories. It is part of the 400 series; compatible with 3CPV tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 400
Tube Outside Diameter (TOD) -Fractional Inches: 2-1/4″
Tube Outside Diameter (TOD) – Decimal Inches: 2.250
Tip No: 436
Wall Thickness: 028
Machine Compatibility: 3CPV
