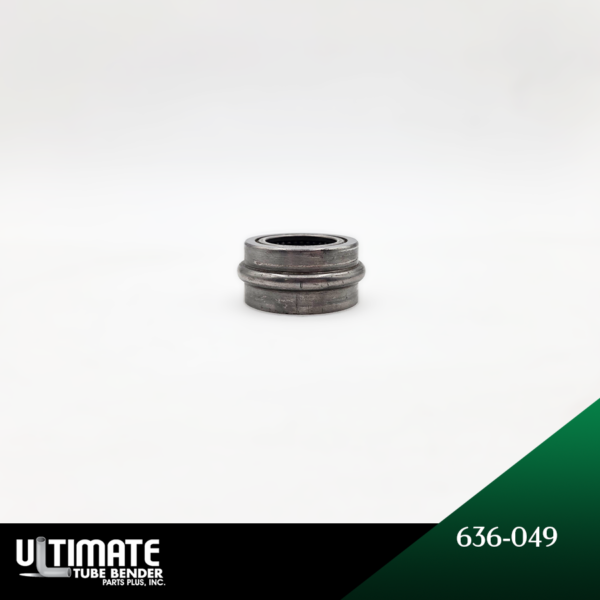

Bead Roller – 600 Series – 636-049 | 2.25 TOD x .049 Wall
Bead Roller that shapes a raised bead on 2-1/4″ (2.250″ decimal) tubing, 049 wall to keep hose from slipping off the end.
Only 1 left in stock
Brand:
Various
Model:
600 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
Sized for 2-1/4″ (2.250″ decimal) tube, around 049 wall thickness, this Bead Roller forms a clean, even bead used to lock hose or coupling connections in place. Because the bead height directly affects hose retention, this tool is machined to hold tight dimensional control from part to part. It is a core component in hydraulic end-forming setups for automotive, HVAC, and industrial hose assemblies. It is part of the 600 series; compatible with 8CP tube end forming machines, and is a good fit for shops standardizing their hydraulic end-forming tooling.
Series: 600
Tube Outside Diameter (TOD) -Fractional Inches: 2-1/4″
Tube Outside Diameter (TOD) – Decimal Inches: 2.250
Tip No: 636
Wall Thickness: 049
Machine Compatibility: 8CP
