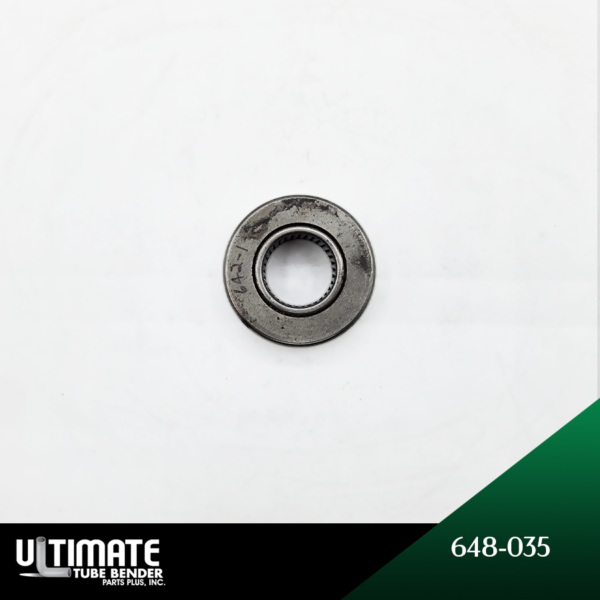

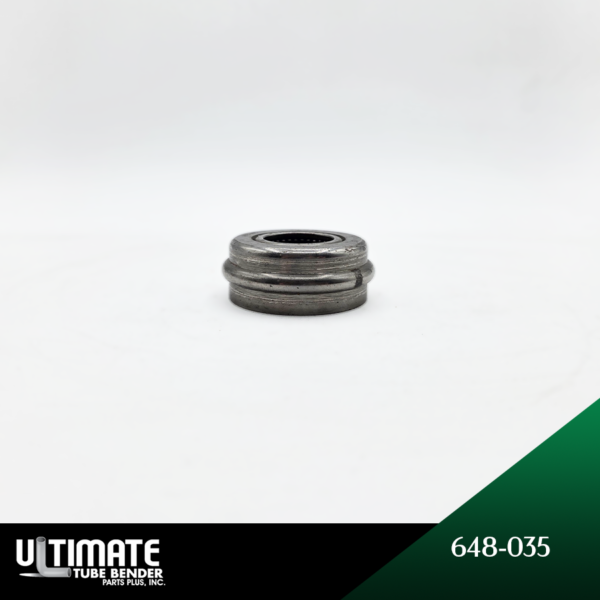

Bead Roller – 600 Series – 648-035 | 3 TOD x .035 Wall
Bead Roller that shapes a raised bead on 3″ (3.000″ decimal) tubing, 035 wall to keep hose from slipping off the end.
Only 1 left in stock
Brand:
Various
Model:
600 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Roller shapes 3″ (3.000″ decimal) tube, around 035 wall thickness, into a raised bead that keeps hose from sliding off the tube end during service. It is designed to run alongside its matching arbor or die on the beading head, forming the bead in a single pass. Reliable, repeatable bead geometry makes this tool a staple in end finisher tooling inventories. It is part of the 600 series; compatible with 8CP tube end forming machines, and is a good fit for shops standardizing their pipe end finishing tooling.
Series: 600
Tube Outside Diameter (TOD) -Fractional Inches: 3″
Tube Outside Diameter (TOD) – Decimal Inches: 3.000
Tip No: 648
Wall Thickness: 035
Machine Compatibility: 8CP
