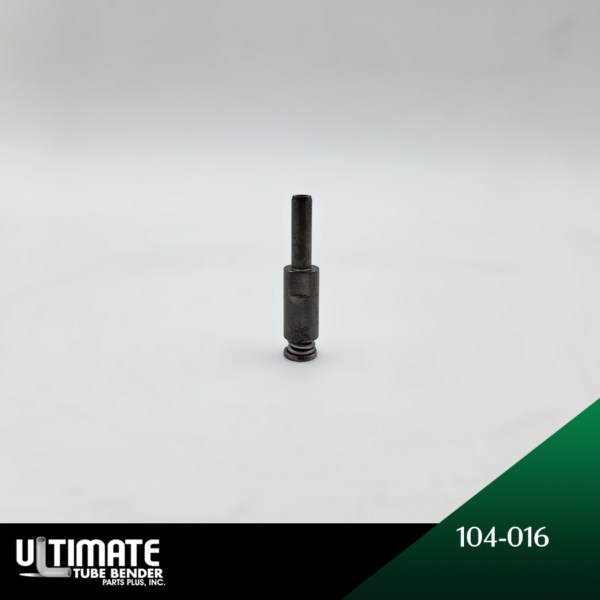

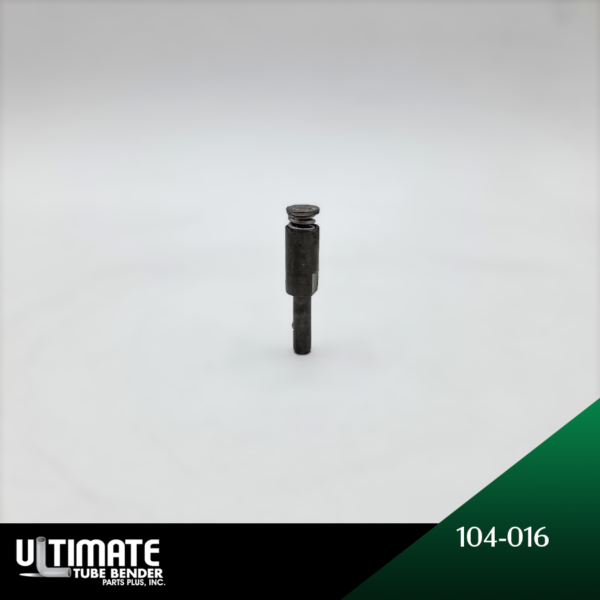

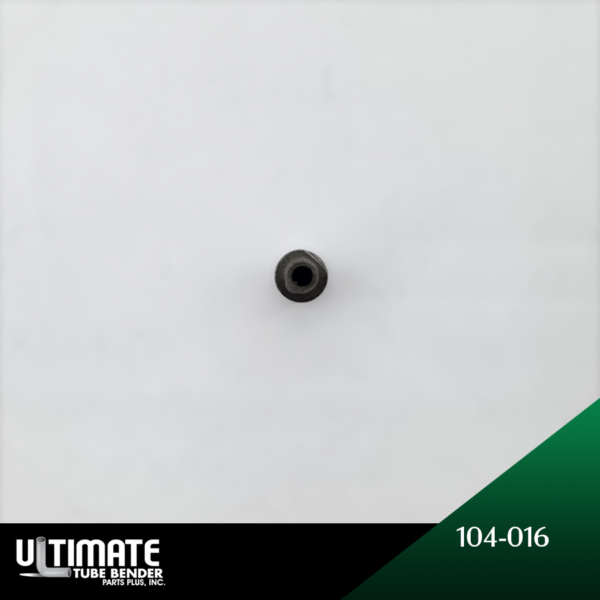

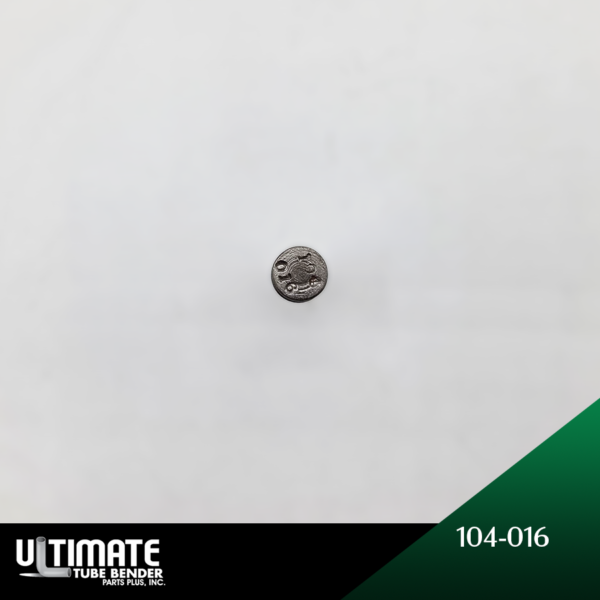

Bead Tip – 100 Series – 104-016 | 0.25 TOD x .016 Wall
Bead Tip that rolls a clean retaining bead into 1/4″ (0.250″ decimal) tubing, 016 wall for secure hose connections.
In stock
Brand:
Various
Model:
100 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Tip shapes 1/4″ (0.250″ decimal) tube, around 016 wall thickness, into a raised bead that keeps hose from sliding off the tube end during service. It is designed to run alongside its matching arbor or die on the beading head, forming the bead in a single pass. Reliable, repeatable bead geometry makes this tool a staple in tube end finishing tooling inventories. It is part of the 100 series; compatible with 2C, 2CP, 2CPV, 3CPV tube end forming machines, and is a good fit for shops standardizing their end finisher tooling.
Series: 100
Tube Outside Diameter (TOD) -Fractional Inches: 1/4″
Tube Outside Diameter (TOD) – Decimal Inches: 0.250
Tip No: 104
Wall Thickness: 016
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV
