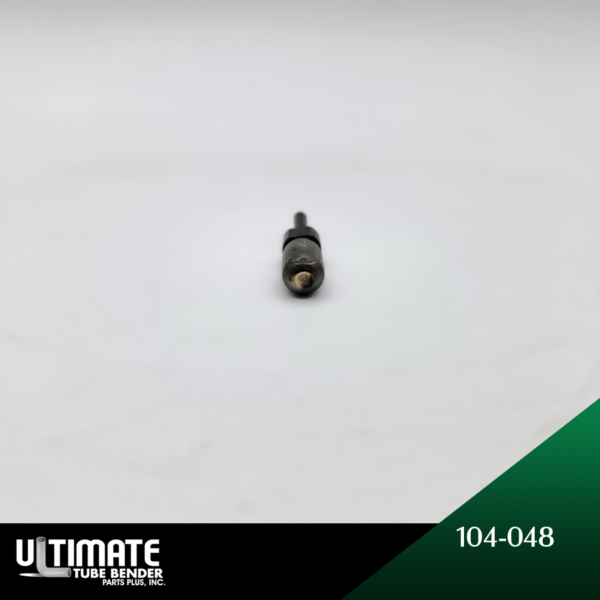

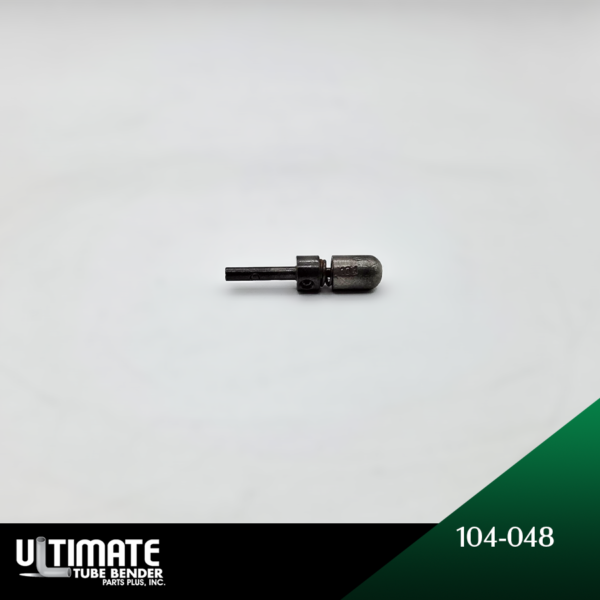

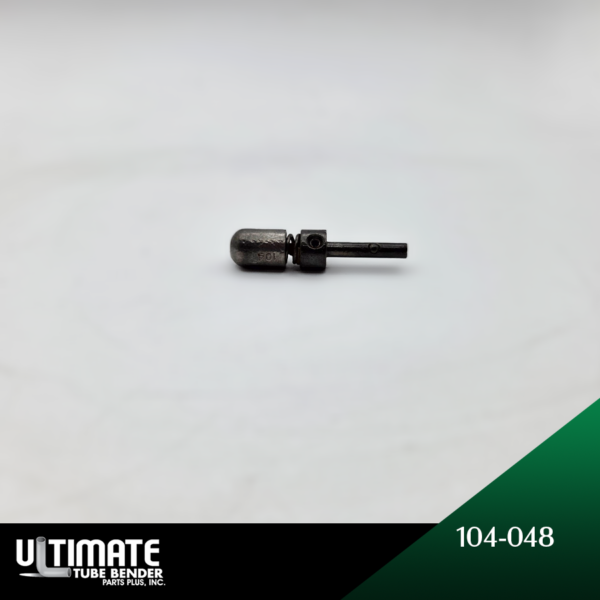

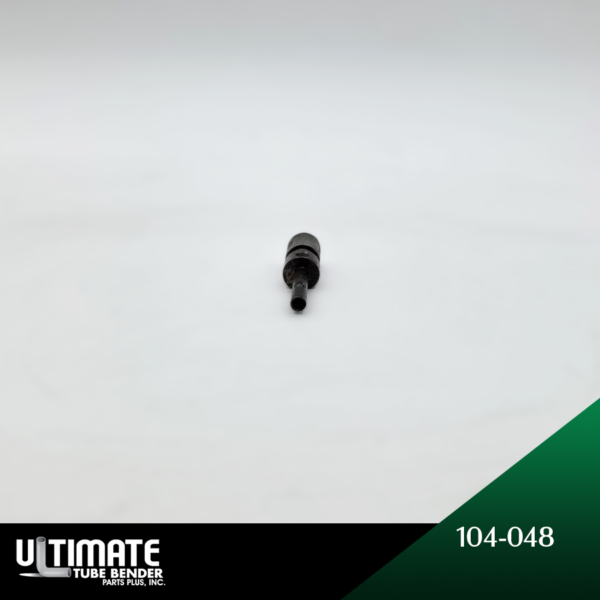

Bead Tip – 100 Series – 104-048 | 0.25 TOD x .048 Wall
Bead Tip sized for 1/4″ (0.250″ decimal) OD tube, 048 wall, forming a uniform bead for hose-clamp retention.
Only 1 left in stock
Brand:
Various
Model:
100 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Tip rolls a uniform retaining bead into 1/4″ (0.250″ decimal) tubing, around 048 wall thickness, giving hose or sleeve connections a positive stop that resists blow-off under pressure. The bead profile is sized to match standard hose-clamp geometry, so parts come off the machine ready for assembly without secondary work. It is built for end finisher production where bead height and location need to stay consistent across large batches. It is part of the 100 series; compatible with 2C, 2CP, 2CPV, 3CPV tube end forming machines, and is a good fit for shops standardizing their end finisher tooling.
Series: 100
Tube Outside Diameter (TOD) -Fractional Inches: 1/4″
Tube Outside Diameter (TOD) – Decimal Inches: 0.250
Tip No: 104
Wall Thickness: 048
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV
