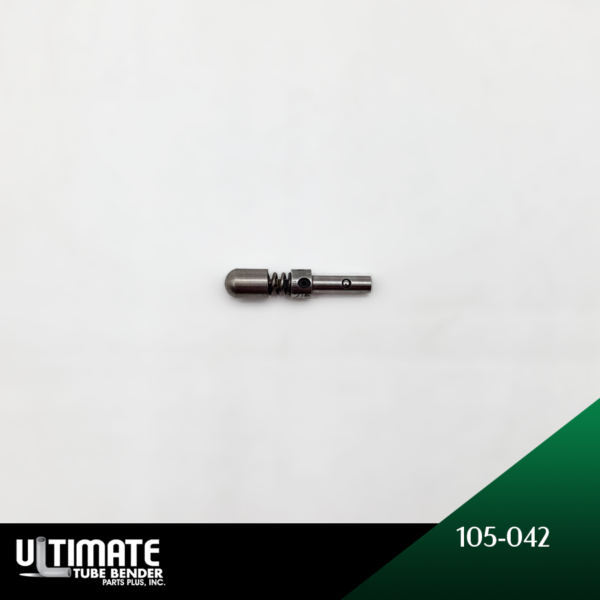

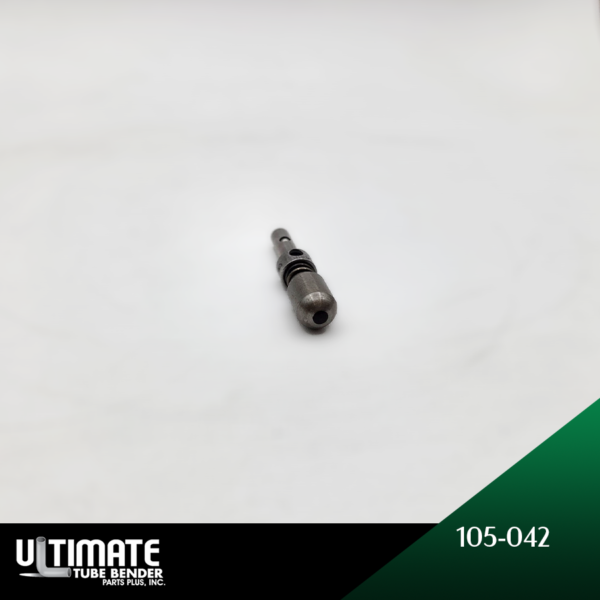

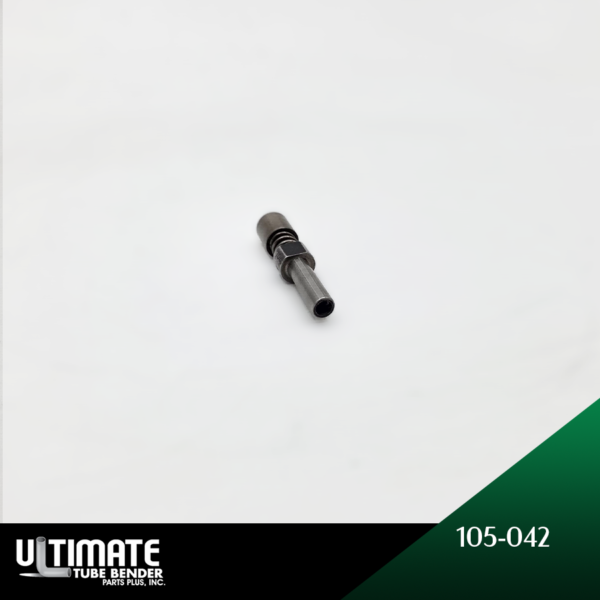

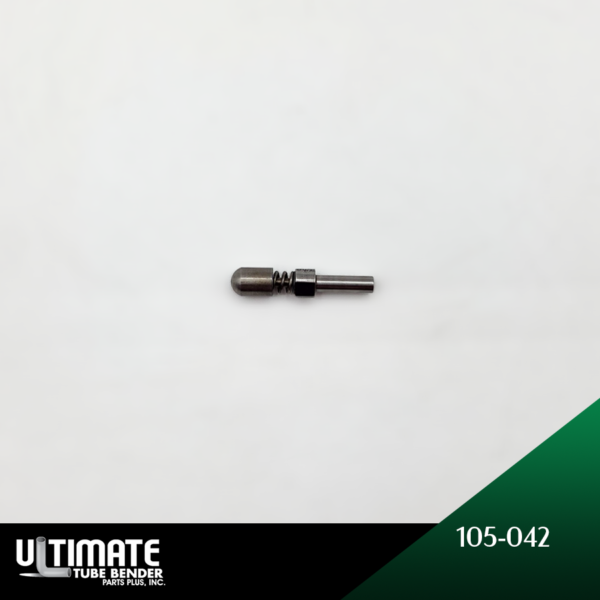

Bead Tip – 100 Series – 105-042 | 0.3125 TOD x .042 Wall
Precision Bead Tip for 5/16″ (0.313″ decimal) tube, 042 wall, built for consistent tube end finishing bead work.
In stock
Brand:
Various
Model:
100 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
Sized for 5/16″ (0.313″ decimal) tube, around 042 wall thickness, this Bead Tip forms a clean, even bead used to lock hose or coupling connections in place. Because the bead height directly affects hose retention, this tool is machined to hold tight dimensional control from part to part. It is a core component in pipe end finishing setups for automotive, HVAC, and industrial hose assemblies. It is part of the 100 series; compatible with 2C, 2CP, 2CPV, 3CPV tube end forming machines, and is a good fit for shops standardizing their pipe end finishing tooling.
Series: 100
Tube Outside Diameter (TOD) -Fractional Inches: 5/16″
Tube Outside Diameter (TOD) – Decimal Inches: 0.313
Tip No: 105
Wall Thickness: 042
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV
