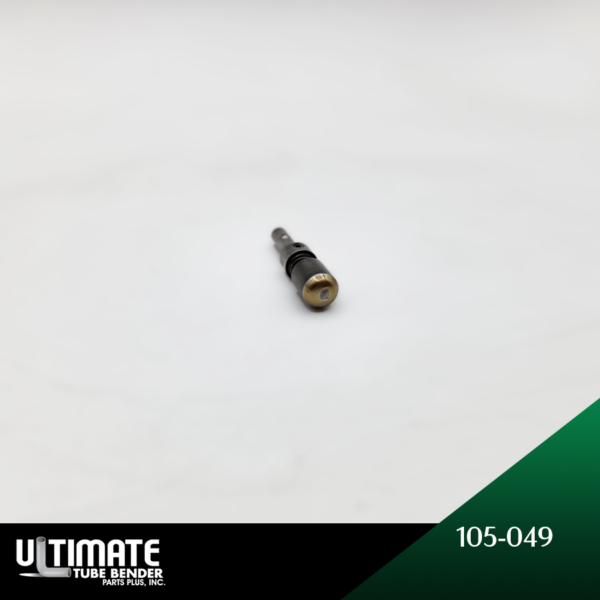

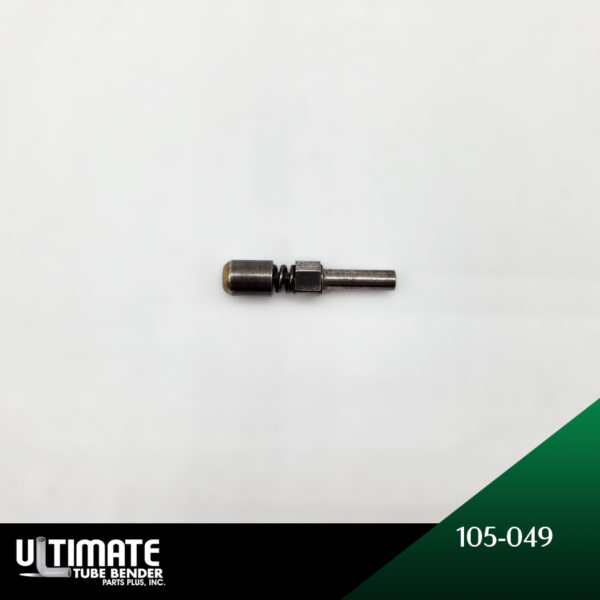

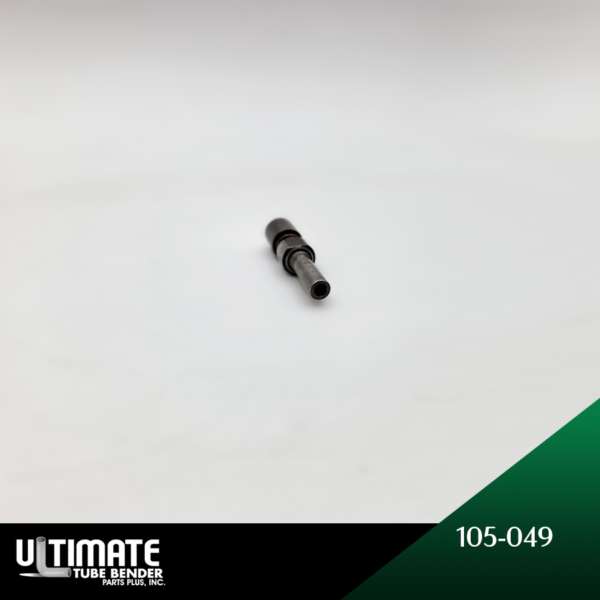

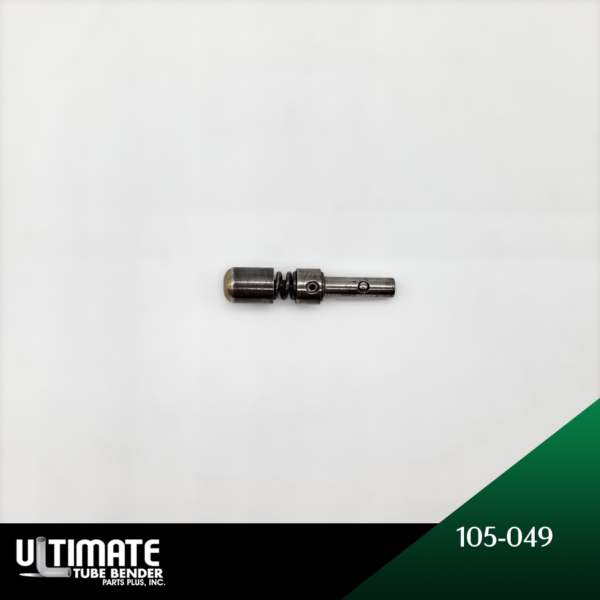

Bead Tip – 100 Series – 105-049 | 0.3125 TOD x .049 Wall
Bead Tip that shapes a raised bead on 5/16″ (0.313″ decimal) tubing, 049 wall to keep hose from slipping off the end.
In stock
Brand:
Various
Model:
100 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Tip rolls a uniform retaining bead into 5/16″ (0.313″ decimal) tubing, around 049 wall thickness, giving hose or sleeve connections a positive stop that resists blow-off under pressure. The bead profile is sized to match standard hose-clamp geometry, so parts come off the machine ready for assembly without secondary work. It is built for tube end forming production where bead height and location need to stay consistent across large batches. It is part of the 100 series; compatible with 2C, 2CP, 2CPV, 3CPV tube end forming machines, and is a good fit for shops standardizing their hydraulic end-forming tooling.
Series: 100
Tube Outside Diameter (TOD) -Fractional Inches: 5/16″
Tube Outside Diameter (TOD) – Decimal Inches: 0.313
Tip No: 105
Wall Thickness: 049
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV
