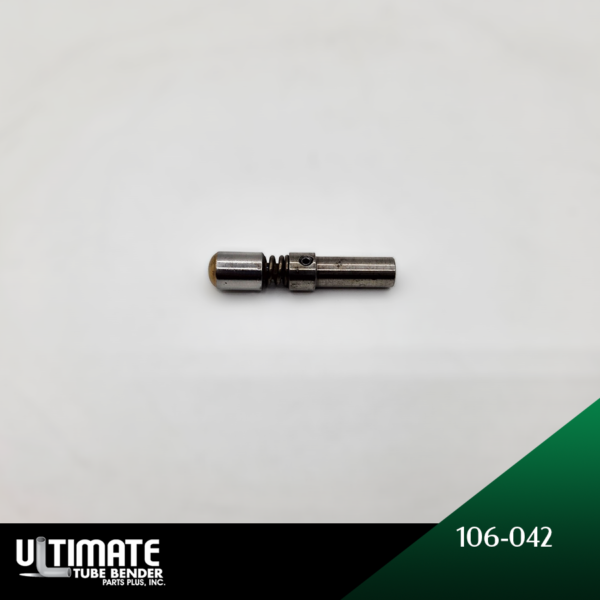

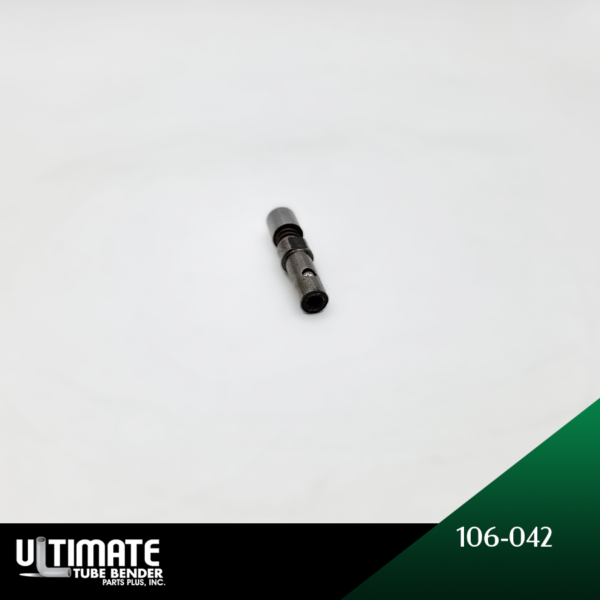

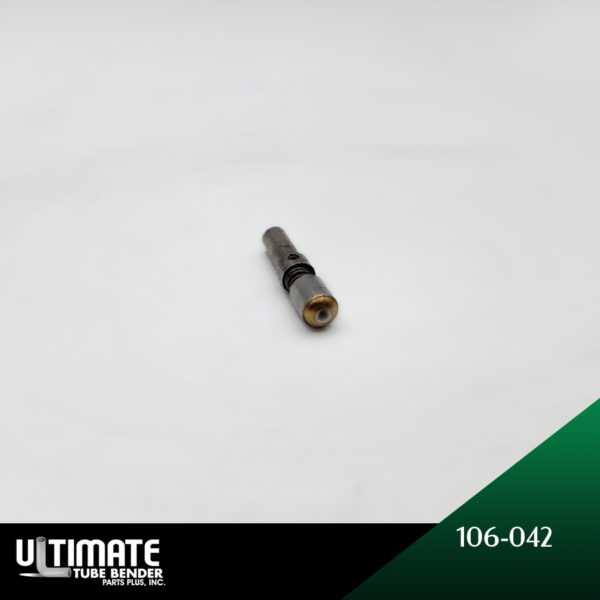

Bead Tip – 100 Series – 106-042 | 0.375 TOD x .042 Wall
Bead Tip sized for 3/8″ (0.375″ decimal) OD tube, 042 wall, forming a uniform bead for hose-clamp retention.
In stock
Brand:
Various
Model:
100 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Bead Tip shapes 3/8″ (0.375″ decimal) tube, around 042 wall thickness, into a raised bead that keeps hose from sliding off the tube end during service. It is designed to run alongside its matching arbor or die on the beading head, forming the bead in a single pass. Reliable, repeatable bead geometry makes this tool a staple in hydraulic end-forming tooling inventories. It is part of the 100 series; compatible with 2C, 2CP, 2CPV, 3CPV tube end forming machines, and is a good fit for shops standardizing their tube end finishing tooling.
Series: 100
Tube Outside Diameter (TOD) -Fractional Inches: 3/8″
Tube Outside Diameter (TOD) – Decimal Inches: 0.375
Tip No: 106
Wall Thickness: 042
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV
