Eaton Leonard VB60C-1-LH Hydraulic Tube Bender
Brand:
Eaton Leoanrd
Model:
VB60C-1-LH
Condition:
Used
Not sure what Machine, Parts, or Tooling you need? We can help!
🔧 Used Eaton Leonard VB60C-1-LH Hydraulic Tube Bender (2012)
Converted CNC to NC – Powerful, Precise, Proven

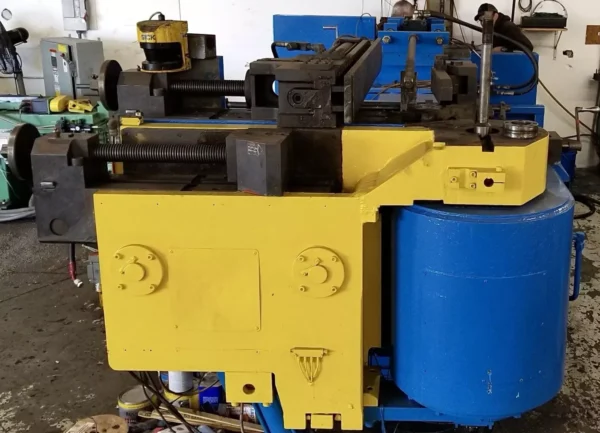

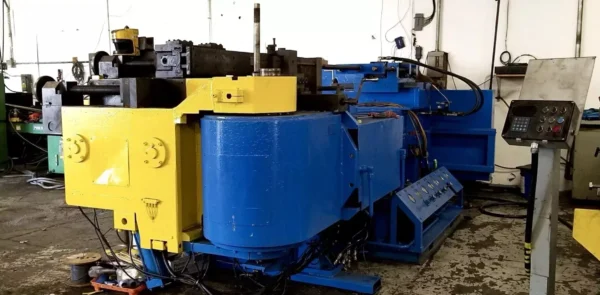

The Eaton Leonard VB60C-1-LH is a high-capacity, heavy-duty hydraulic tube bender designed for precision forming of large-diameter tubes. This 2012 model is configured for left-hand (counterclockwise) bending and features a hydraulic mandrel extractor, pressure die assist, and a Current Tech CAB control system.
The machine has been CNC-converted to NC, delivering streamlined numeric control for high-volume production while reducing complexity. Whether you work in automotive, aerospace, energy, or heavy industrial fabrication, this unit delivers robust performance for challenging tube geometries and materials.
⚙️ Key Specifications
| Feature | Description |
|---|---|
| Model | Eaton Leonard VB60C-1-LH |
| Year Built | 2012 |
| Rotation Direction | LH (Counterclockwise) |
| Controller | Current Tech CAB Controller (CNC converted to NC) |
| Motor | 60 HP / 480V / 3PH / 125 Amps |
| Bend Angle | Up to 190° |
| Bend Speed (C-Axis) | 2 RPM |
| DBB (Y-Axis) Speed | 900 IPM |
| Centerline Radius Range | 2″ to 25″ |
| Mandrel System | Hydraulic Mandrel Extractor |
| Pressure Die | Assist Included |
🔩 Tube Bending Capacity by Material
| Material Type | Max OD Size | Wall Thickness |
|---|---|---|
| Stainless Steel | 6″ | 0.18″ |
| Mild Steel | 6″ | 0.22″ |
| Aluminum | 6″ | 0.50″ |
| Carbon Steel | 6″ | 0.337″ |
✅ Features & Benefits
-
Large Diameter Bending: Handles up to 6″ OD tubing in various materials.
-
Heavy-Duty Drive System: 60 HP motor for high-performance bending with consistent results.
-
Simplified NC Operation: CNC converted to NC for user-friendly operation with numeric controls.
-
Hydraulic Mandrel Extractor: Ensures optimal internal support for tight-radius bends.
-
Pressure Die Assist: Maintains wall integrity and reduces deformation on heavier tubes.
-
Current Tech CAB Controller: Reliable, modern control system with one-year board warranty (if applicable).
-
Proven OEM Platform: Built on Eaton Leonard’s globally recognized hydraulic bending architecture.
🏭 Ideal For Industries Like:
-
Heavy Equipment Manufacturing
-
Energy & Power Systems
-
Aerospace & Defense
-
Shipbuilding & Rail
-
Custom Exhaust & Chassis Bending
-
Oil & Gas Infrastructure
📞 Looking for High-Torque Precision Tube Bending?
The Used Eaton Leonard VB60C-1-LH offers extreme power, refined control, and wide-ranging material compatibility. Ready for production and equipped to handle your toughest large-radius and large-diameter applications.
👉 Contact us now for pricing, tooling options, and shipping quotes.
Used Eaton Leonard VB60C-1-LH Hydraulic Tube Bender 2012
Specifications:
LH (Counterclockwise) Rotation
Pressure Die Assist
Hydraulic Mandrel Extractor
Max Tube OD Stainless Steel 6″ x .18″
Max Tube OD Mild Steel 6″ x .22″
Max Tube OD Aluminum 6″ x .50″
Max Tube OD Carbon 6″ x .337″
Bend Angle 190 Degrees
Centerline Radius 2″ to 25″
Bend Speed 2 RPM (C-Axis)
DBB Speed 900 IPM (Y-Axis)
Motor 480/60/3, 125 Amps, 60 HP
*CNC CONVERTED TO NC* (NC= NUMERICALLY CONTROLLED)
Current Tech CAB Controller
