Flange Die M369 – 510-3810
Flange Die that shapes a true flange on 2.000″ IPS and Schedule 5,10 pipe stock for a bolt-ready fitting face.
Out of stock
Brand:
Various
Model:
M369 Series
Condition:
New
Not sure what Machine, Parts, or Tooling you need? We can help!

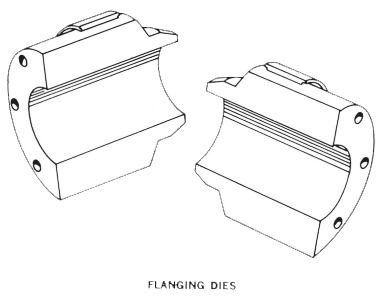

Machined for 2.000″ IPS and Schedule 5,10 pipe, this Flange Die shapes the pipe end into a true, flat flange during the forming stroke. A well-formed flange spreads bolt load evenly around the joint, so dimensional accuracy here carries through to the finished assembly’s reliability. It fits standard flanging machine setups used in tube end finishing fabrication. It is part of the M369 series, and is a good fit for shops standardizing their tube end finishing tooling.
Series: M369
Tube Outside Diameter (TOD) – Decimal Inches: 2.375
IPS: 2.000
Schedule: 5,10
