Double Flare Die 45° 101612 Series – 341 | 0.1875 TOD

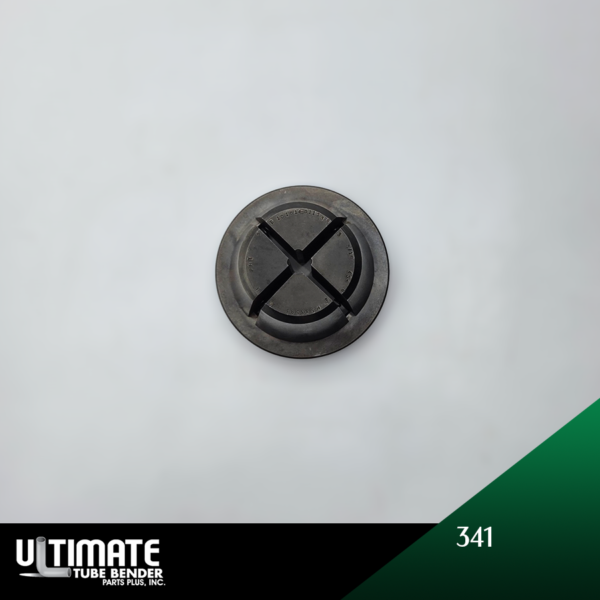

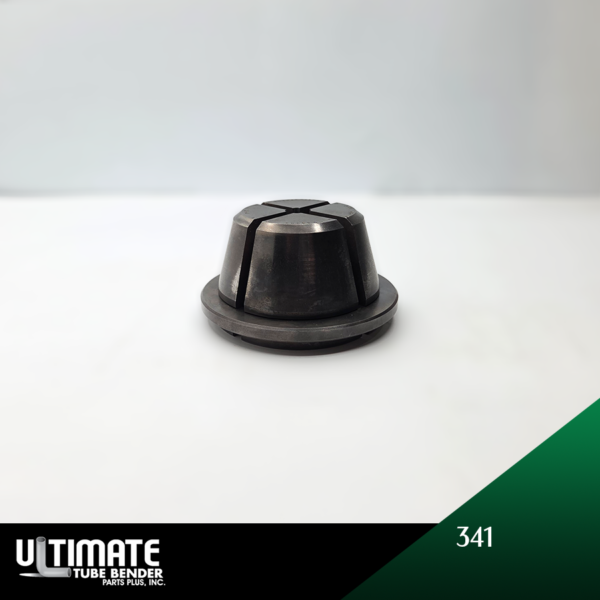

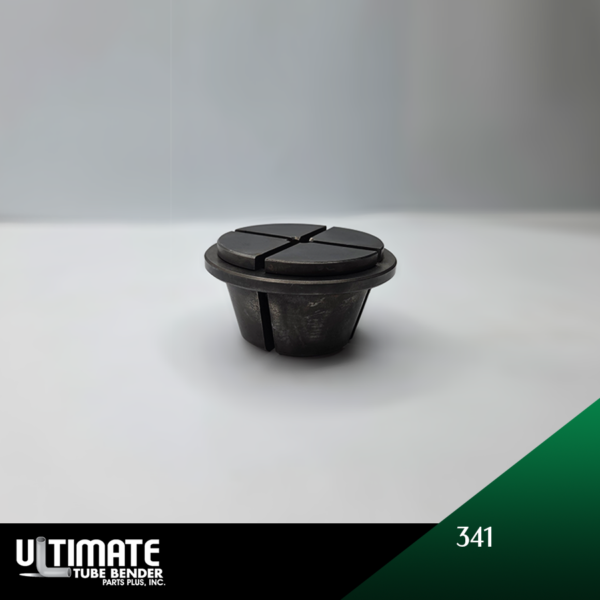

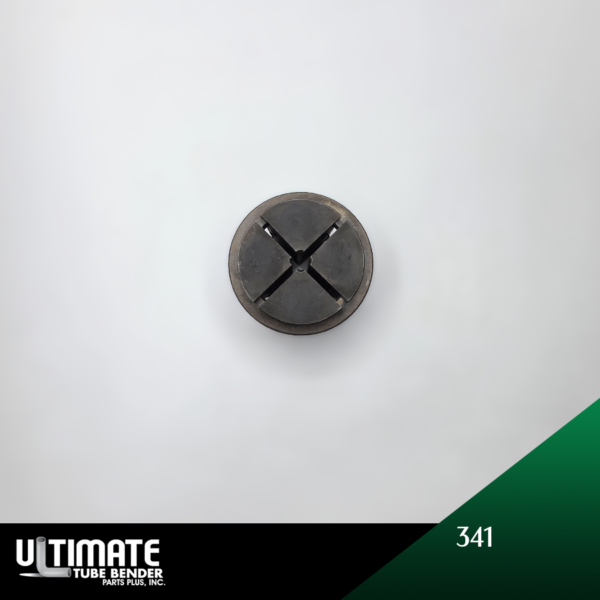

Double Flare Die for forming SAE double flares on 3/16″ (0.188″ decimal) tube, pairing with a matching punch for a two-step tube and pipe end-forming process.
Only 1 left in stock
Brand:
Various
Model:
101612 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Double Flare Die is used to form the second, double-lap stage of a flare on 3/16″ (0.188″ decimal) tube, producing the folded-over flare face used on brake and fuel lines. It works in tandem with a matching upset punch, first upsetting the tube end and then folding it into the finished double flare. The result is a stronger, more leak-resistant seal than a single flare, which is why this style of tooling stays in demand for hydraulic end-forming work on automotive and industrial lines. It is part of the 101612 series; compatible with DF tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 101612
Tool Diameter – H: 3-3/4″
Tube Outside Diameter (TOD) -Fractional Inches: 3/16″
Tube Outside Diameter (TOD) – Decimal Inches: 0.188
Degrees: 45°
Thickness (T): 2″
Grip (G) Decimal Inches: 2.000
Machine Compatibility: DF
| TOD | Leonard Precision Operation | Clarke & Lewis | PHI | Conrac | Dew Machine Tool |
|---|---|---|---|---|---|
| 1/8" | 241 | CL241 | 101612-010 | 241 | NA |
| 3/16" | 341 | CL341 | 101612-011 | 341 | NA |
| 1/4" | 441 | CL441 | 101612-012 | 441 | NA |
| 5/16" | 541 | CL541 | 101612-013 | 541 | NA |
| 3/8" | 641 | CL641 | 101612-014 | 641 | NA |
| 7/16" | 741 | CL741 | 101612-015 | 741 | NA |
| 1/2" | 841 | CL841 | 101612-016 | 841 | NA |
| 5/8" | 1041 | CL1041 | 101612-018 | 1041 | NA |
| 3/4" | 1241 | CL1241 | 101612-019 | 1241 | NA |
