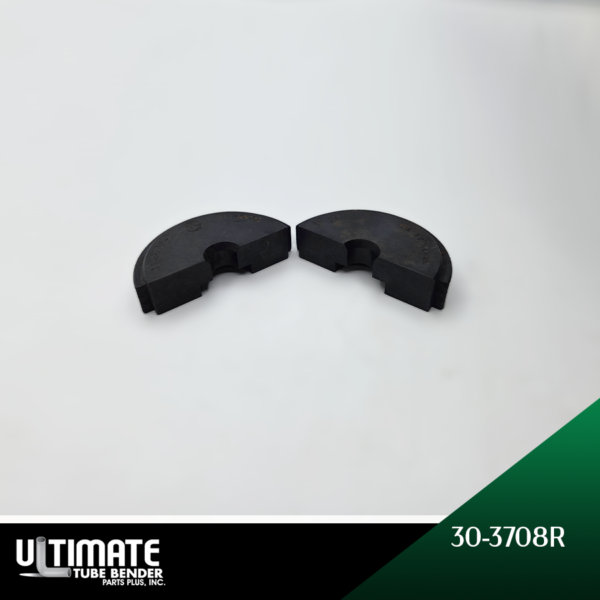

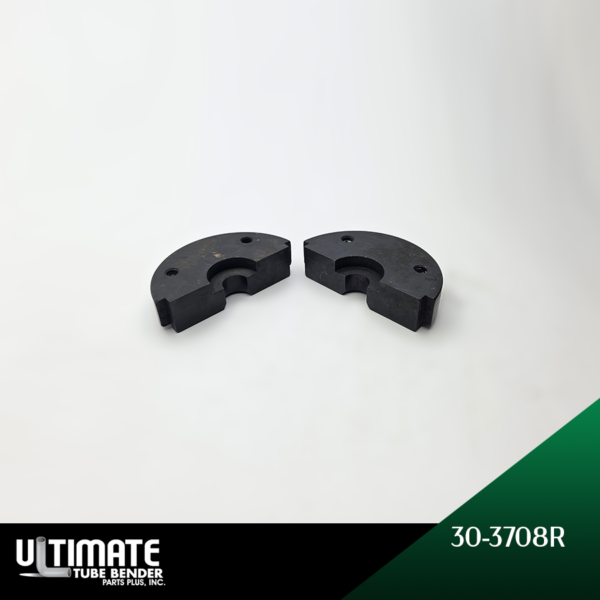

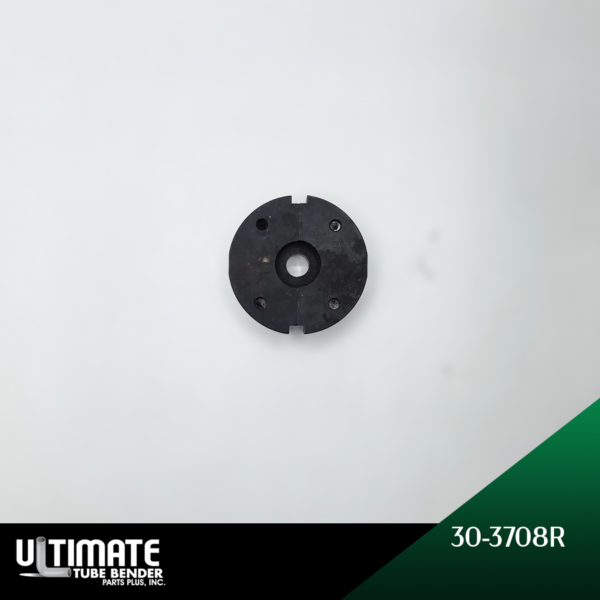

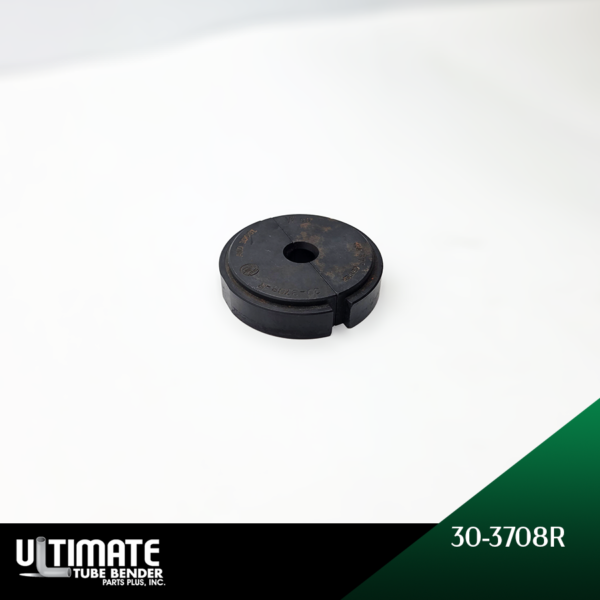

Flare Die – Recessed 37° – 30-3700R Series – 30-3708R | 0.5 TOD
Recessed Flare Die sized for 1/2″ (0.500″ decimal) tubing, shaping a clean 37° flare on every cycle of your tube and pipe end-forming setup.
In stock
Brand:
Various
Model:
30-3700R Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Recessed Flare Die shapes 1/2″ (0.500″ decimal) tubing into a 37° flare suitable for SAE and industrial fitting standards. Its 3/4″ profile supports the tube during forming to help prevent splitting or uneven wall thinning at the flare edge. It is intended for continuous-duty tube end finishing operations where dimensional consistency between parts matters. It is part of the 30-3700R series; compatible with 2C, 2CP, 2CPV, 3CPV w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube end forming tooling.
Series: 30-3700R
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 1/2″
Tube Outside Diameter (TOD) – Decimal Inches: 0.500
Degrees: 37°
Thickness (T): 3/4″
Grip (G) Decimal Inches: 0.475
D: 1.000
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV w/ die adaptor
| Tool OD | Leonard Precision | Clarke & Lewis | PHI | Conrac | Dew Machine Tool |
|---|---|---|---|---|---|
| 1/8" | 30-3702R | CL30-3702R | 109409-001 | 30-3702R | DEW 30-3702R |
| 3/16" | 30-3703R | CL30-3703R | 109409-002 | 30-3703R | DEW 30-3703R |
| 1/4" | 30-3704R | CL30-3704R | 109409-003 | 30-3704R | DEW 30-3704R |
| 5/16" | 30-3705R | CL30-3705R | 109409-004 | 30-3705R | DEW 30-3705R |
| 3/8" | 30-3706R | CL30-3706R | 109409-005 | 30-3706R | DEW 30-3706R |
| 7/16" | 30-3707R | CL30-3707R | 109409-006 | 30-3707R | DEW 30-3707R |
| 1/2" | 30-3708R | CL30-3708R | 109409-007 | 30-3708R | DEW 30-3708R |
| 5/8" | 30-3710R | CL30-3710R | 109409-008 | 30-3710R | DEW 30-3710R |
| 3/4" | 30-3712R | CL30-3712R | 109409-009 | 30-3712R | DEW 30-3712R |
| 7/8" | 30-3714R | CL30-3714R | 109409-110 | 30-3714R | DEW 30-3714R |
| 1" | 30-3716R | CL30-3716R | 109409-011 | 30-3716R | DEW 30-3716R |
| 1 1/8" | 30-3718R | CL30-3718R | 109409-012 | 30-3718R | DEW 30-3718R |
| 1 1/4" | 30-3720R | CL30-3720R | 109409-013 | 30-3720R | DEW 30-3720R |
| 1 3/8" | 30-3722R | CL30-3722R | 109409-014 | 30-3722R | DEW 30-3722R |
| 1 1/2" | 30-3724R | CL30-3724R | 109409-015 | 30-3724R | DEW 30-3724R |
| 1 5/8" | 30-3726R | CL30-3726R | 109409-016 | 30-3726R | DEW 30-3726R |
| 1 3/4" | 30-3728R | CL30-3728R | 109409-017 | 30-3728R | DEW 30-3728R |
| 2" | 30-3732R | CL30-3732R | 109409-019 | 30-3732R | DEW 30-3732R |
