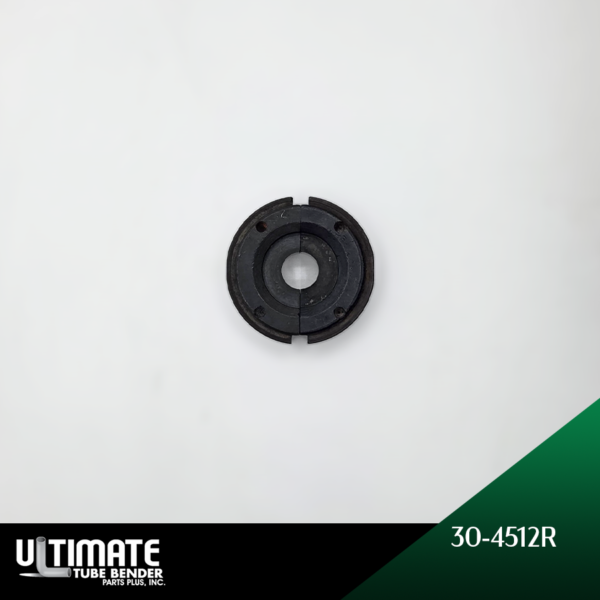

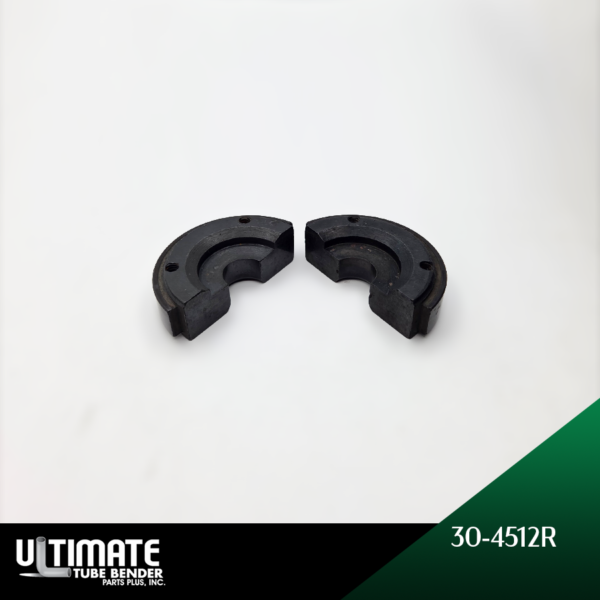

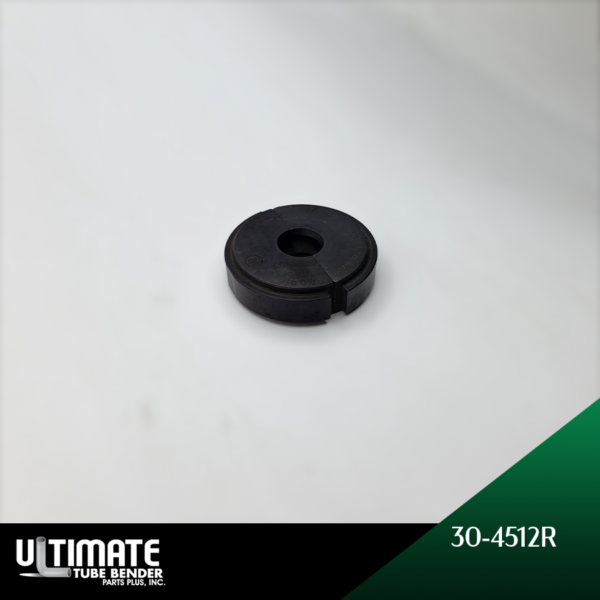

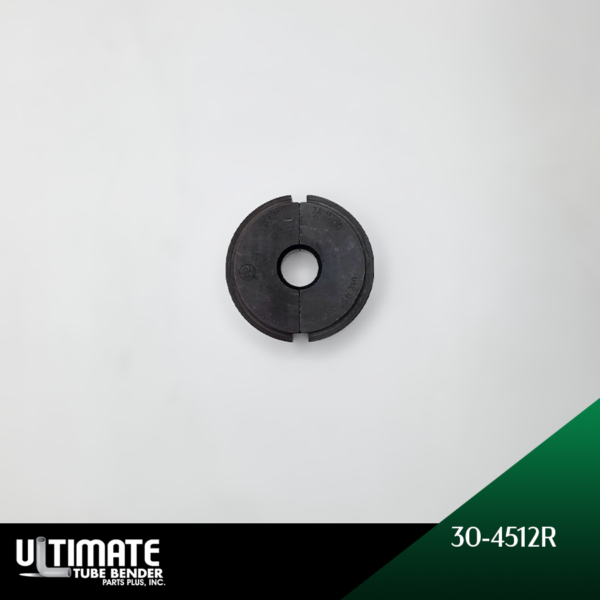

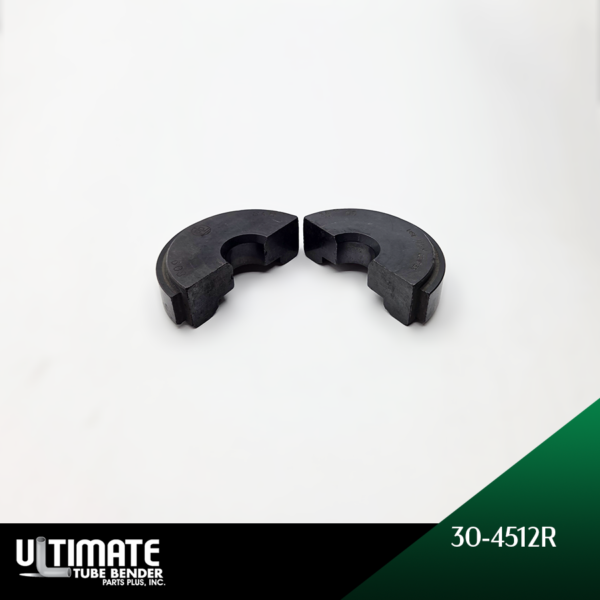

Flare Die – Recessed 30-4500R Series – 30-4512R | 0.75 TOD
Recessed Flare Die sized for 3/4″ (0.750″ decimal) tubing, shaping a clean 45° flare on every cycle of your tube and pipe end-forming setup.
Only 1 left in stock
Brand:
Various
Model:
30-4500R Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Recessed Flare Die shapes 3/4″ (0.750″ decimal) tubing into a 45° flare suitable for SAE and industrial fitting standards. Its 0.75 profile supports the tube during forming to help prevent splitting or uneven wall thinning at the flare edge. It is intended for continuous-duty tube end forming operations where dimensional consistency between parts matters. It is part of the 30-4500R series; compatible with 2C, 2CP, 3CP w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube end finishing tooling.
Series: 30-4500R
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 3/4″
Tube Outside Diameter (TOD) – Decimal Inches: 0.750
Degrees: 45°
Thickness (T): 0.75
Grip (G) Decimal Inches: .525
D: 1.5
Machine Compatibility: 2C, 2CP, 3CP w/ die adaptor
