Flare Die – Standard 37° – 30-3700 Series – 30-3711 | 0.6875 TOD

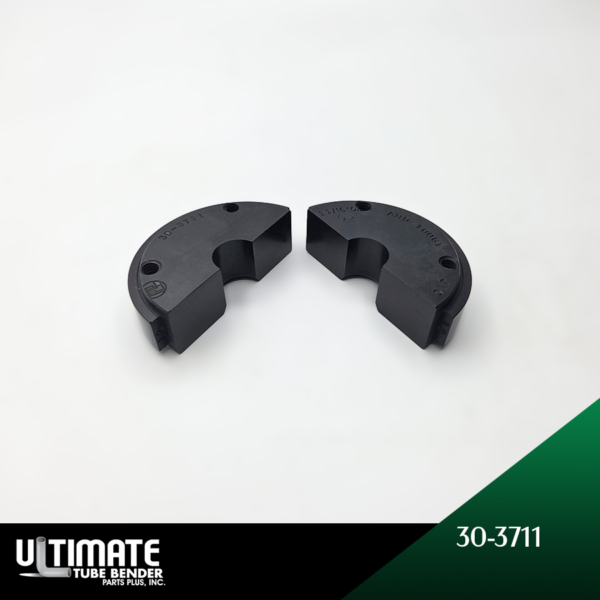

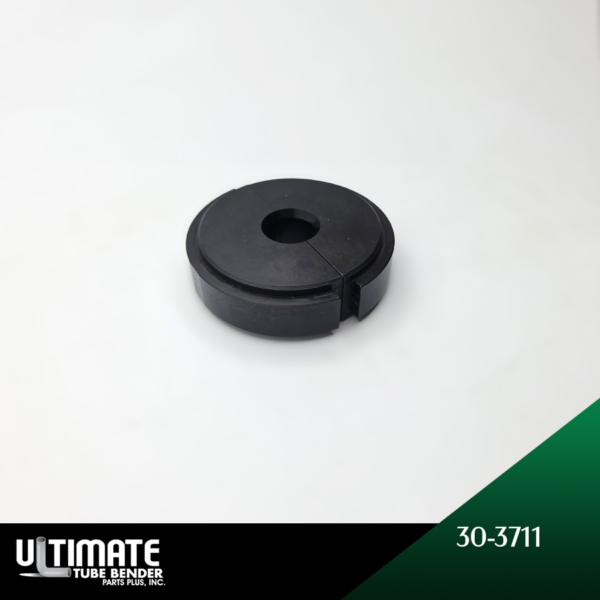

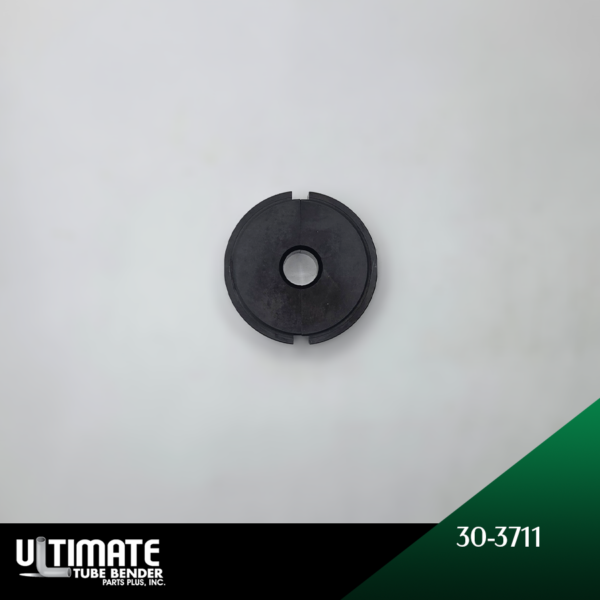

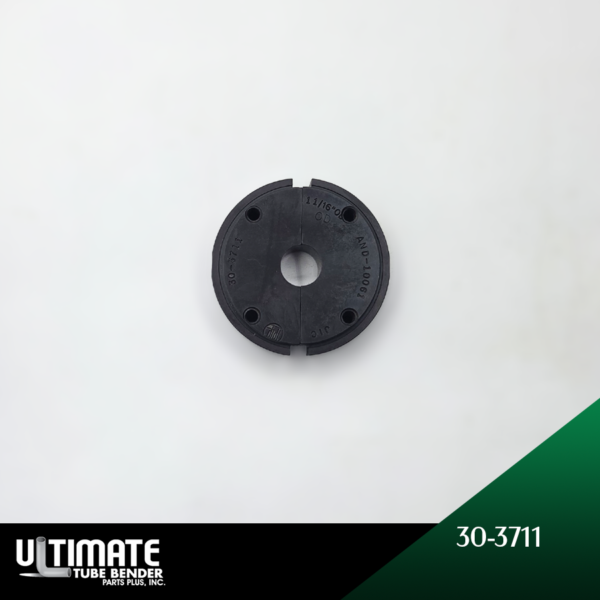

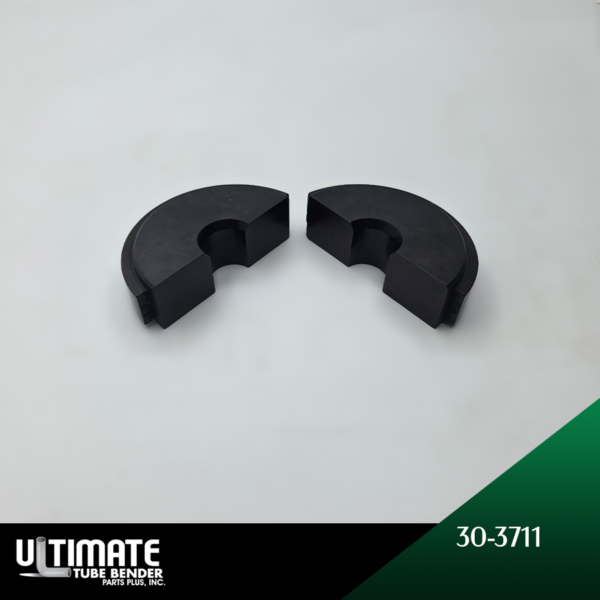

Standard Flare Die engineered to hold tolerance while flaring 11/16″ (0.688″ decimal) tube to a 37° angle.
Only 1 left in stock
Brand:
Various
Model:
30-3700 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This Standard Flare Die shapes 11/16″ (0.688″ decimal) tubing into a 37° flare suitable for SAE and industrial fitting standards. Its 3/4″ profile supports the tube during forming to help prevent splitting or uneven wall thinning at the flare edge. It is intended for continuous-duty hydraulic end-forming operations where dimensional consistency between parts matters. It is part of the 30-3700 series; compatible with 2C, 2CP, 2CPV, 3CPV w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube end finishing tooling.
Series: 30-3700
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 11/16″
Tube Outside Diameter (TOD) – Decimal Inches: 0.688
Degrees: 37°
Thickness (T): 3/4″
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV w/ die adaptor
| TOD | T | Leonard Precision | PHI | Conrac | Dew Machine Tool |
|---|---|---|---|---|---|
