Flare Die – Standard 37° – 30-3700 Series – 30-3714 | 0.875 TOD
Precision Standard Flare Die producing a 37° SAE-style flare on 7/8″ (0.875″ decimal) OD tubing for durable, leak-tight connections.
In stock
Brand:
Various
Model:
30-3700 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!

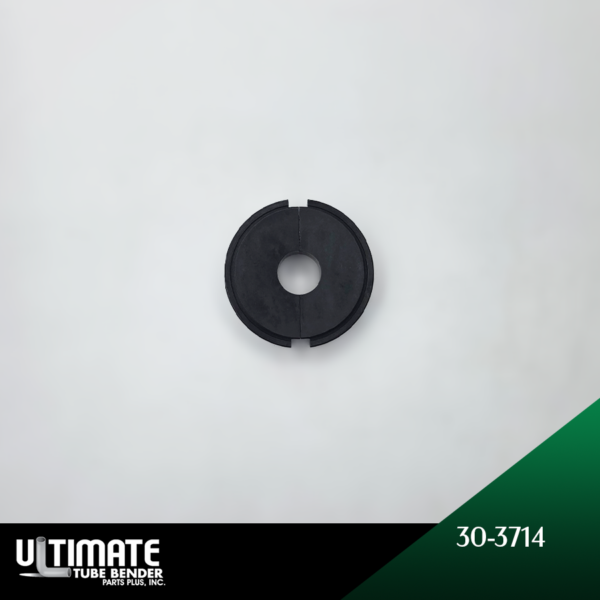

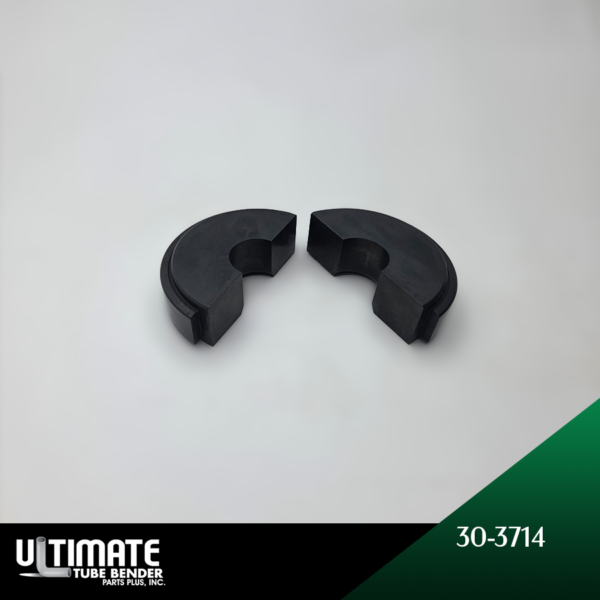

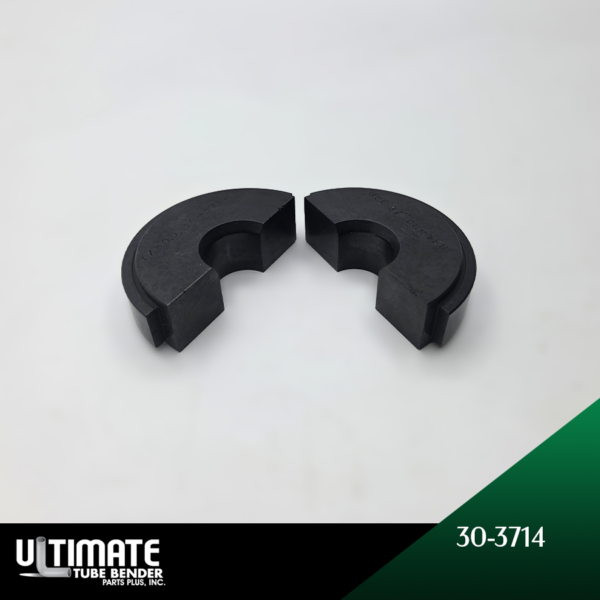

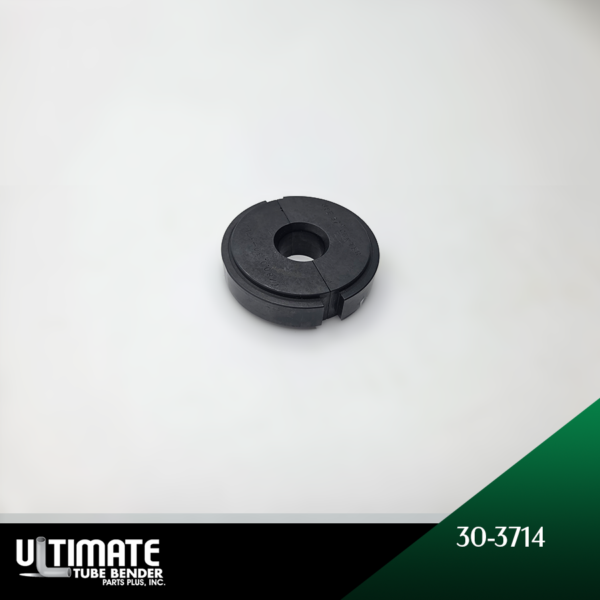

This Standard Flare Die is machined to shape a 37° flare on 7/8″ (0.875″ decimal) tube, giving a smooth, concentric sealing surface for flared fittings. With a die thickness of 3/4″, it holds the tube square through the forming stroke, which keeps flare depth and angle consistent from part to part. It is built for end finisher shops that need repeatable results across long production runs, whether the application is hydraulic line assembly, fuel system fabrication, or general tube end forming. It is part of the 30-3700 series; compatible with 2C, 2CP, 2CPV, 3CPV w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube end forming tooling.
Series: 30-3700
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 7/8″
Tube Outside Diameter (TOD) – Decimal Inches: 0.875
Degrees: 37°
Thickness (T): 3/4″
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV w/ die adaptor
| TOD | T | Leonard Precision | PHI | Conrac | Dew Machine Tool |
|---|---|---|---|---|---|
| 1/8" | 3/4" | 30-3702 | 800000-01 | 30-3702 | DEW 30-3702 |
| 3/16" | 3/4" | 30-3703 | 800000-02 | 30-3703 | DEW 30-3703 |
| 1/4" | 3/4" | 30-3704 | 800000-03 | 30-3704 | DEW 30-3704 |
| 5/16" | 3/4" | 30-3705 | 800000-04 | 30-3705 | DEW 30-3705 |
| 3/8" | 3/4" | 30-3706 | 800000-05 | 30-3706 | DEW 30-3706 |
| 7/16" | 3/4" | 30-3707 | 800000-06 | 30-3707 | DEW 30-3707 |
| 1/2" | 3/4" | 30-3708 | 800000-07 | 30-3708 | DEW 30-3708 |
| 5/8" | 3/4" | 30-3710 | 800000-08 | 30-3710 | DEW 30-3710 |
| 3/4" | 7/8" | 30-3712 | 800000-09 | 30-3712 | DEW 30-3712 |
| 7/8" | 7/8" | 30-3714 | 800000-10 | 30-3714 | DEW 30-3714 |
| 1" | 7/8" | 30-3716 | 800000-11 | 30-3716 | DEW 30-3716 |
| 1 1/8" | 1" | 30-3718 | 800000-12 | 30-3718 | DEW 30-3718 |
| 1 1/4" | 1" | 30-3720 | 800000-13 | 30-3720 | DEW 30-3720 |
| 1 3/8" | 1" | 30-3722 | 800000-14 | 30-3722 | DEW 30-3722 |
| 1 1/2" | 1" | 30-3724 | 800000-15 | 30-3724 | DEW 30-3724 |
| 1 5/8" | 1-1/4" | 30-3726 | 800000-16 | 30-3726 | DEW 30-3726 |
| 1 3/4" | 1-1/4" | 30-3728 | 800000-17 | 30-3728 | DEW 30-3728 |
| 2" | 1-1/4" | 30-3732 | 800000-18 | 30-3732 | DEW 30-3732 |
