Flare Die – Standard 37° – 30-3700 Series – 30-3724 | 1.5 TOD
Precision Standard Flare Die producing a 37° SAE-style flare on 1-1/2″ (1.500″ decimal) OD tubing for durable, leak-tight connections.
In stock
Brand:
Various
Model:
30-3700 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!

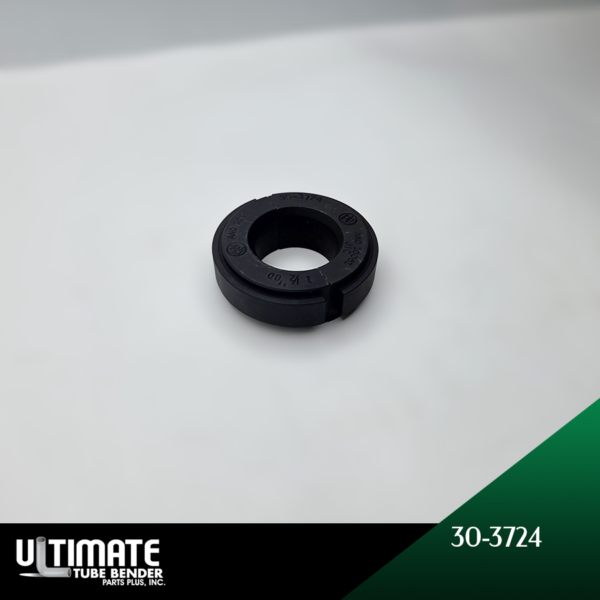

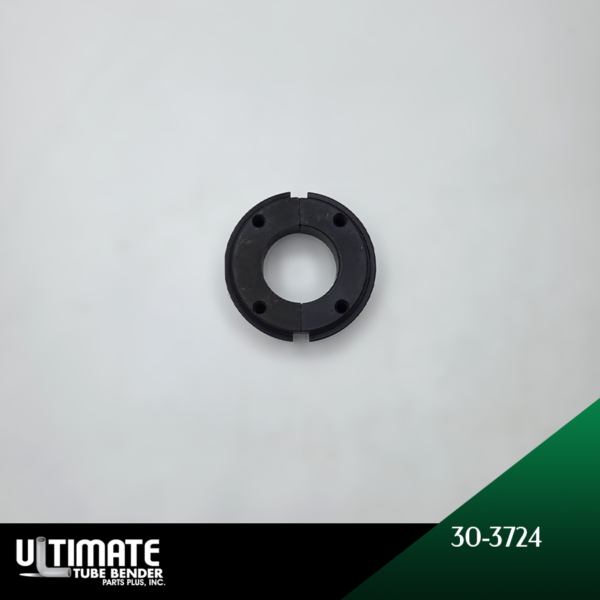

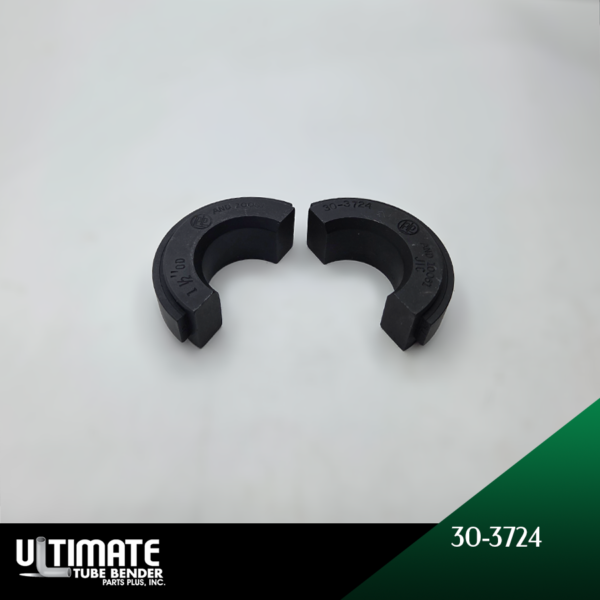

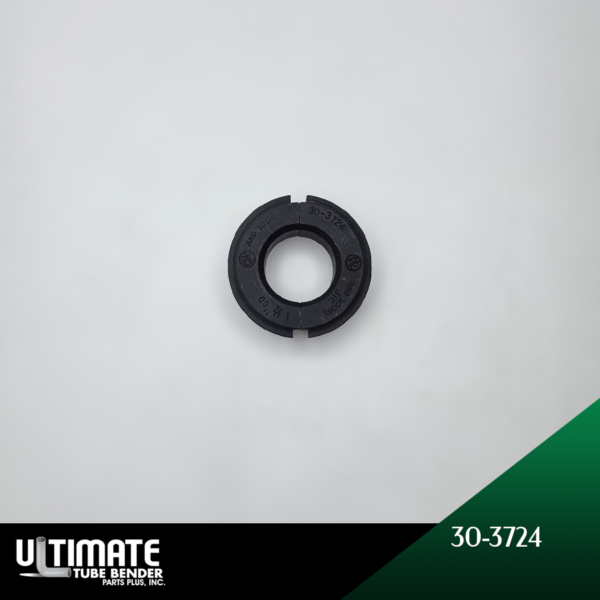

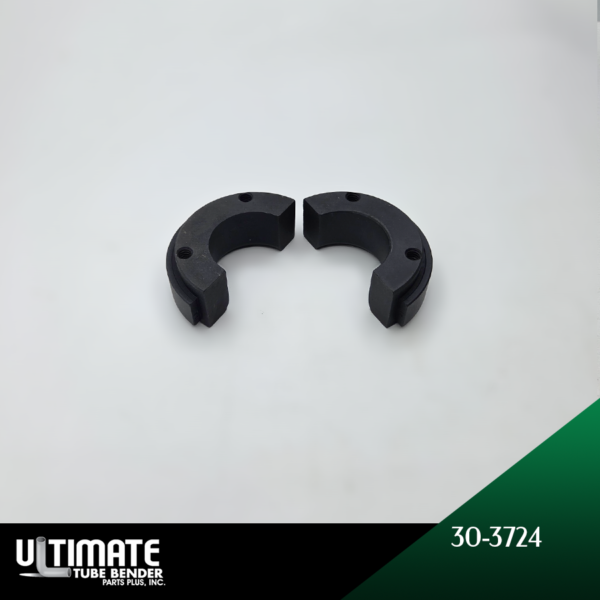

Built for tube end finishing, this Standard Flare Die forms a 37° flare in 1-1/2″ (1.500″ decimal) OD tubing with tight, repeatable geometry. The die profile is sized to grip and support the tube wall through the full forming cycle, reducing the risk of wrinkling or off-angle flares. Because it mounts directly into compatible flaring machine dieheads, it slots into existing pipe end finishing workflows without extra setup. It is part of the 30-3700 series; compatible with 2C, 2CP, 2CPV, 3CPV w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their pipe end finishing tooling.
Series: 30-3700
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 1-1/2″
Tube Outside Diameter (TOD) – Decimal Inches: 1.500
Degrees: 37°
Thickness (T): 1″
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV w/ die adaptor
| TOD | T | Leonard Precision | PHI | Conrac | Dew Machine Tool |
|---|---|---|---|---|---|
| 1/8" | 3/4" | 30-3702 | 800000-01 | 30-3702 | DEW 30-3702 |
| 3/16" | 3/4" | 30-3703 | 800000-02 | 30-3703 | DEW 30-3703 |
| 1/4" | 3/4" | 30-3704 | 800000-03 | 30-3704 | DEW 30-3704 |
| 5/16" | 3/4" | 30-3705 | 800000-04 | 30-3705 | DEW 30-3705 |
| 3/8" | 3/4" | 30-3706 | 800000-05 | 30-3706 | DEW 30-3706 |
| 7/16" | 3/4" | 30-3707 | 800000-06 | 30-3707 | DEW 30-3707 |
| 1/2" | 3/4" | 30-3708 | 800000-07 | 30-3708 | DEW 30-3708 |
| 5/8" | 3/4" | 30-3710 | 800000-08 | 30-3710 | DEW 30-3710 |
| 3/4" | 7/8" | 30-3712 | 800000-09 | 30-3712 | DEW 30-3712 |
| 7/8" | 7/8" | 30-3714 | 800000-10 | 30-3714 | DEW 30-3714 |
| 1" | 7/8" | 30-3716 | 800000-11 | 30-3716 | DEW 30-3716 |
| 1 1/8" | 1" | 30-3718 | 800000-12 | 30-3718 | DEW 30-3718 |
| 1 1/4" | 1" | 30-3720 | 800000-13 | 30-3720 | DEW 30-3720 |
| 1 3/8" | 1" | 30-3722 | 800000-14 | 30-3722 | DEW 30-3722 |
| 1 1/2" | 1" | 30-3724 | 800000-15 | 30-3724 | DEW 30-3724 |
| 1 5/8" | 1-1/4" | 30-3726 | 800000-16 | 30-3726 | DEW 30-3726 |
| 1 3/4" | 1-1/4" | 30-3728 | 800000-17 | 30-3728 | DEW 30-3728 |
| 2" | 1-1/4" | 30-3732 | 800000-18 | 30-3732 | DEW 30-3732 |
