Flare Die – Standard 37° – 45-3700 Series – 45-3748 | 3 TOD

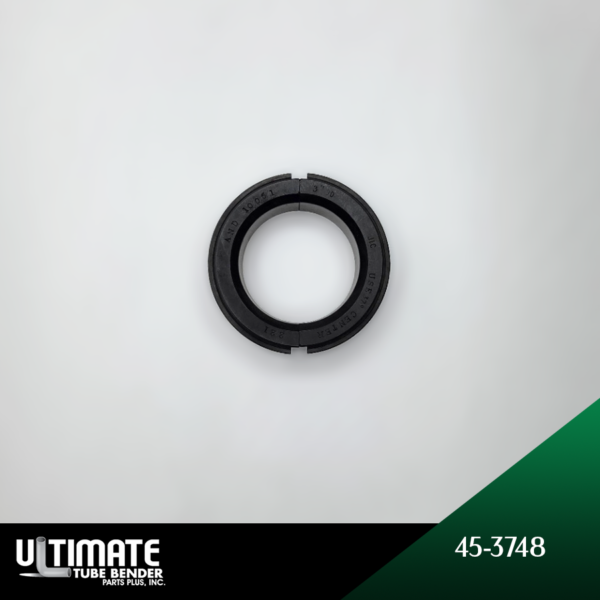

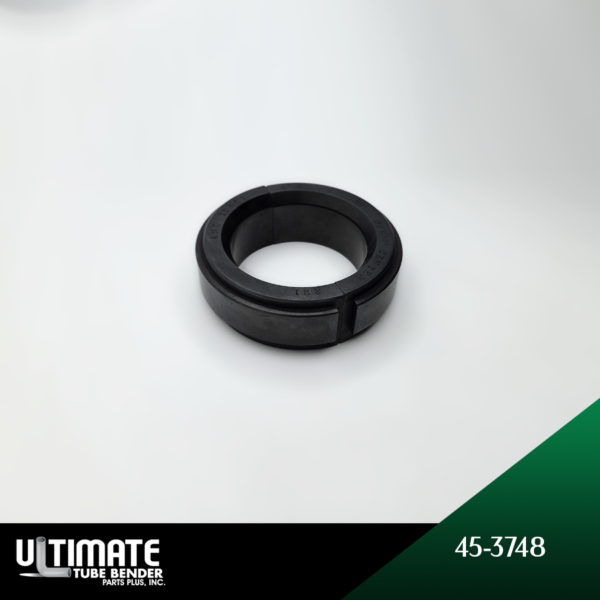

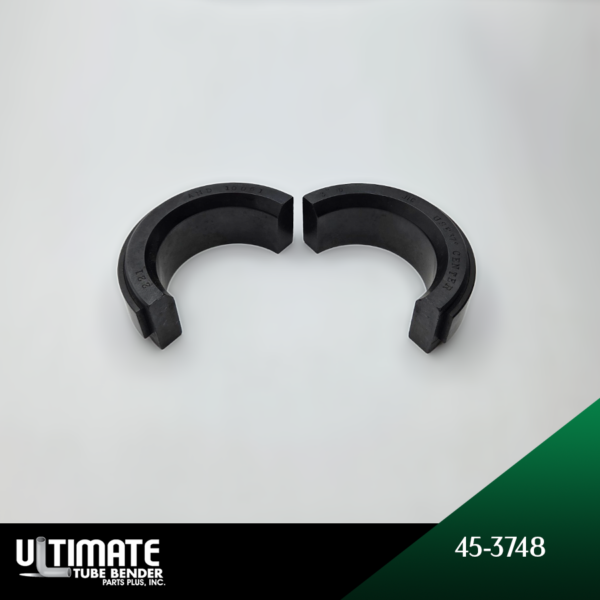

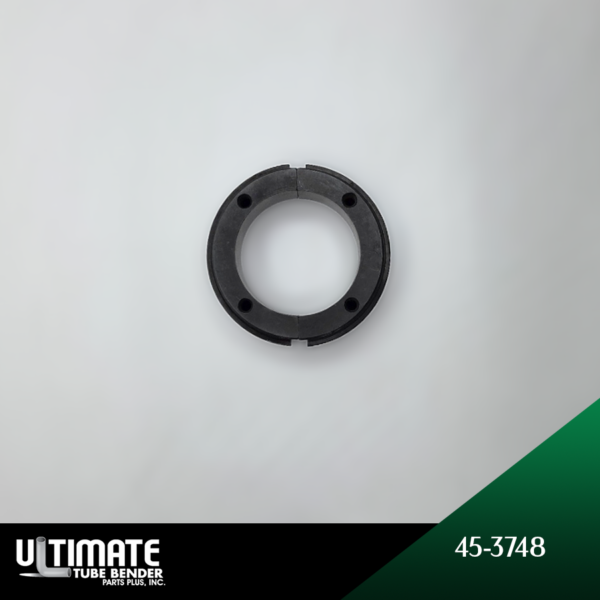

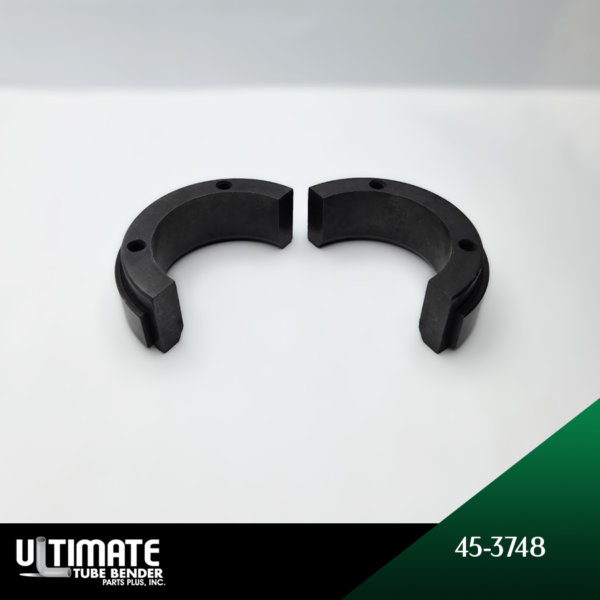

Standard Flare Die engineered to hold tolerance while flaring 3″ (3.000″ decimal) tube to a 37° angle.
In stock
Brand:
Various
Model:
45-3700 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
Built for tube end finishing, this Standard Flare Die forms a 37° flare in 3″ (3.000″ decimal) OD tubing with tight, repeatable geometry. The die profile is sized to grip and support the tube wall through the full forming cycle, reducing the risk of wrinkling or off-angle flares. Because it mounts directly into compatible flaring machine dieheads, it slots into existing tube and pipe end-forming workflows without extra setup. It is part of the 45-3700 series; compatible with 3CPV, 8CP w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 45-3700
Tool Diameter – H: 4.5″
Tube Outside Diameter (TOD) -Fractional Inches: 3″
Tube Outside Diameter (TOD) – Decimal Inches: 3.000
Degrees: 37°
Thickness (T): 1-3/4″
Machine Compatibility: 3CPV, 8CP w/ die adaptor
| Tool OD | Leonard Precision | Clarke & Lewis | PHI | Conrac | Dew Machine Tool |
|---|---|---|---|---|---|
| 1" | 45-3716 | CL45-3716 | 102195-001 | 45-3716 | DEW 45-3716 |
| 1 1/8" | 45-3718 | CL45-3718 | 102195-002 | 45-3718 | DEW 45-3718 |
| 1 1/4" | 45-3720 | CL45-3720 | 102195-003 | 45-3720 | DEW 45-3720 |
| 1 3/8" | 45-3722 | CL45-3722 | 102195-004 | 45-3722 | DEW 45-3722 |
| 1 1/2" | 45-3724 | CL45-3724 | 102195-005 | 45-3724 | DEW 45-3724 |
| 1 5/8" | 45-3726 | CL45-3726 | 102195-006 | 45-3726 | DEW 45-3726 |
| 1 3/4" | 45-3728 | CL45-3728 | 102195-007 | 45-3728 | DEW 45-3728 |
| 2" | 45-3732 | CL45-3732 | 102195-008 | 45-3732 | DEW 45-3732 |
| 2 1/4" | 45-3736 | CL45-3736 | 102195-009 | 45-3736 | DEW 45-3736 |
| 2 1/2" | 45-3740 | CL45-3740 | 102195-010 | 45-3740 | DEW 45-3740 |
| 2 3/4" | 45-3744 | CL45-3744 | 102195-011 | 45-3744 | DEW 45-3744 |
| 3" | 45-3748 | CL45-3748 | 102195-12 | 45-3748 | DEW 45-3748 |
