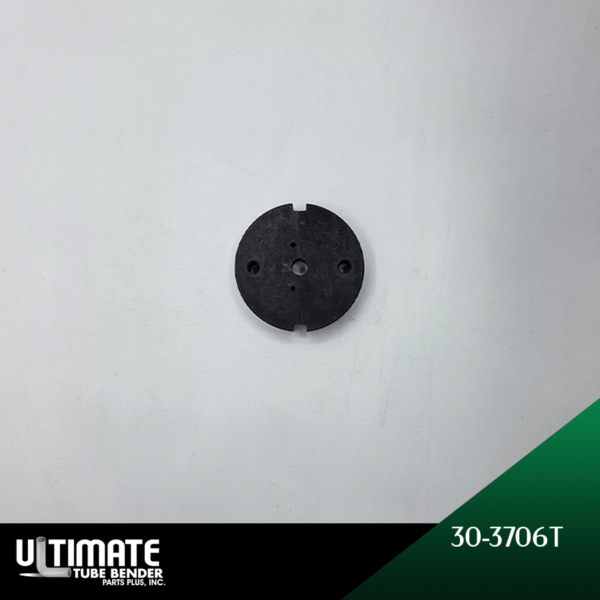

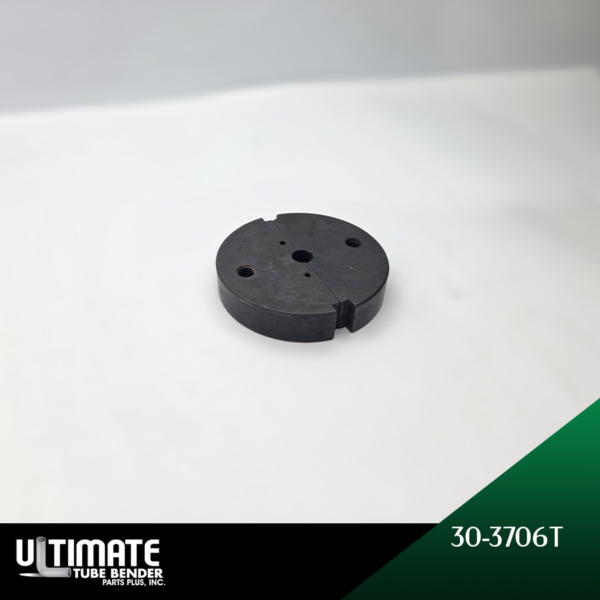

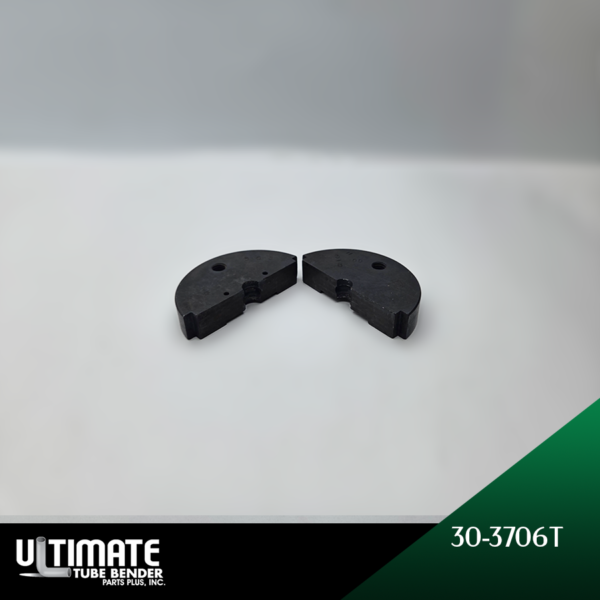

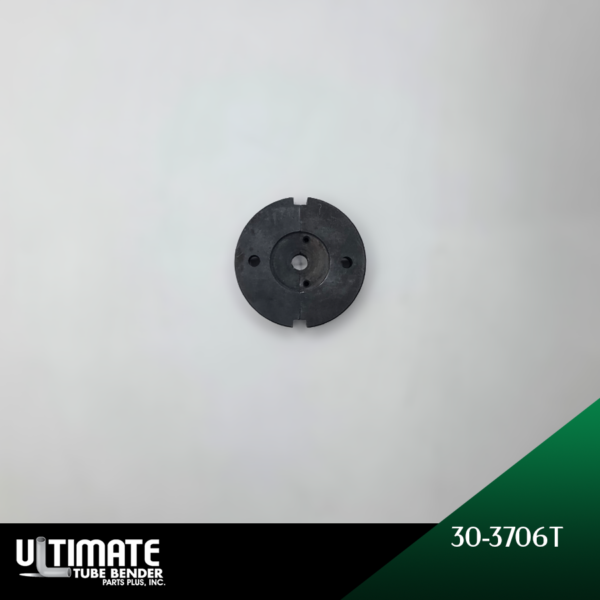

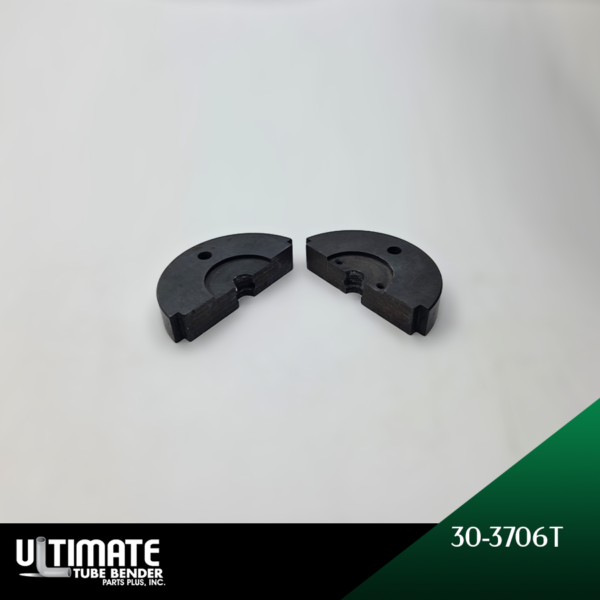

Flare Die – T Sleeve 37° – 30-3700T Series – 30-3706T | 0.375 TOD
Shop-grade T Sleeve Flare Die that shapes a 37° flare in 3/8″ (0.375″ decimal) tube ends, made for high-volume tube and pipe end-forming runs.
Only 1 left in stock
Brand:
Various
Model:
30-3700T Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
This T Sleeve Flare Die shapes 3/8″ (0.375″ decimal) tubing into a 37° flare suitable for SAE and industrial fitting standards. Its 3/4″ profile supports the tube during forming to help prevent splitting or uneven wall thinning at the flare edge. It is intended for continuous-duty tube end finishing operations where dimensional consistency between parts matters. It is part of the 30-3700T series; compatible with 2C, 2CP, 2CPV, 3CPV w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their tube and pipe end-forming tooling.
Series: 30-3700T
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 3/8″
Tube Outside Diameter (TOD) – Decimal Inches: 0.375
Degrees: 37°
Thickness (T): 3/4″
Grip (G) Decimal Inches: .340
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV w/ die adaptor
| Tool OD | Leonard Precision | Clarke & Lewis | PHI | Conrac | Dew Machine Tool |
|---|---|---|---|---|---|
| 1/8" | 30-3702T | CL30-3702T | 800004-001 | 30-3702T | DEW 30-3702T |
| 3/16" | 30-3703T | CL30-3703T | 800004-002 | 30-3703T | DEW 30-3703T |
| 1/4" | 30-3704T | CL30-3704T | 800004-003 | 30-3704T | DEW 30-3704T |
| 5/16" | 30-3705T | CL30-3705T | 800004-004 | 30-3705T | DEW 30-3705T |
| 3/8" | 30-3706T | CL30-3706T | 800004-005 | 30-3706T | DEW 30-3706T |
| 7/16" | 30-3707T | CL30-3707T | 800004-006 | 30-3707T | DEW 30-3707T |
| 1/2" | 30-3708T | CL30-3708T | 800004-008 | 30-3708T | DEW 30-3708T |
| 5/8" | 30-3710T | CL30-3710T | 800004-008 | 30-3710T | DEW 30-3710T |
| 3/4" | 30-3712T | CL30-3712T | 800004-009 | 30-3712T | DEW 30-3712T |
| 7/8" | 30-3714T | CL30-3714T | 800004-110 | 30-3714T | DEW 30-3714T |
| 1" | 30-3716T | CL30-3716T | 800004-011 | 30-3716T | DEW 30-3716T |
| 1 1/8" | 30-3718T | CL30-3718T | 800004-012 | 30-3718T | DEW 30-3718T |
| 1 1/4" | 30-3720T | CL30-3720T | 800004-013 | 30-3720T | DEW 30-3720T |
| 1 3/8" | 30-3722T | CL30-3722T | 800004-014 | 30-3722T | DEW 30-3722T |
| 1 1/2" | 30-3724T | CL30-3724T | 800004-015 | 30-3724T | DEW 30-3724T |
| 1 3/4" | 30-3728T | CL30-3728T | 800004-016 | 30-3728T | DEW 30-3728T |
| 2" | NA | CL30-3732T | NA | NA | NA |
