Flare Die – T Sleeve 37° – 30-3700T Series – 30-3724T | 1.5 TOD
T Sleeve Flare Die that forms a precise 37° flare on 1-1/2″ (1.500″ decimal) tube, built for repeatable tube end finishing work.
Only 1 left in stock
Brand:
Various
Model:
30-3700T Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!

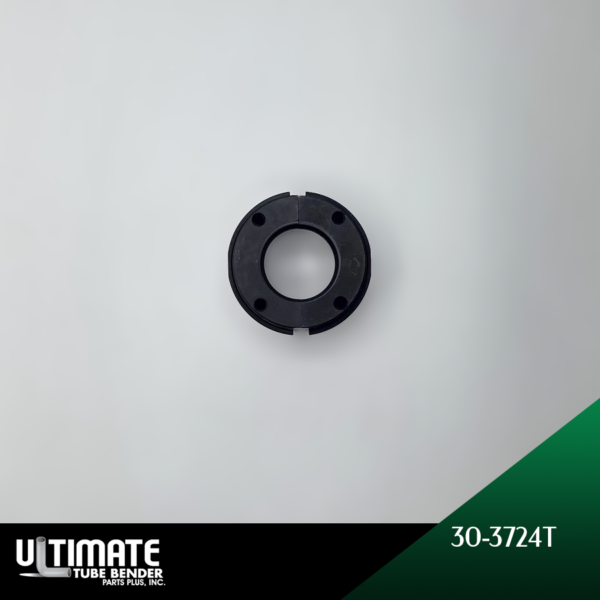

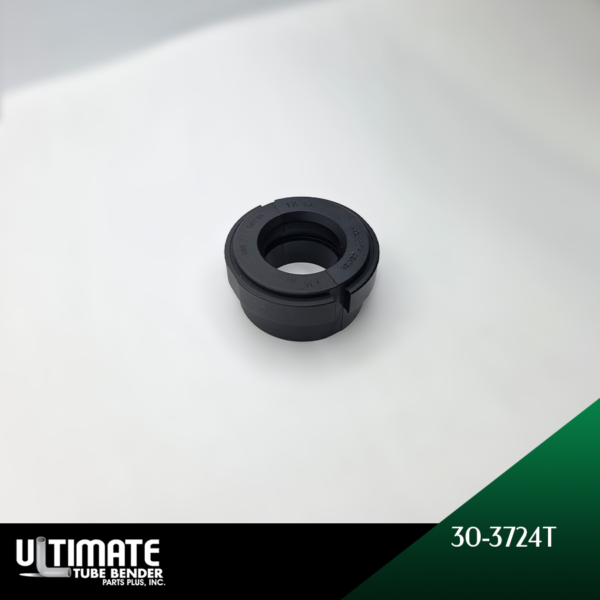

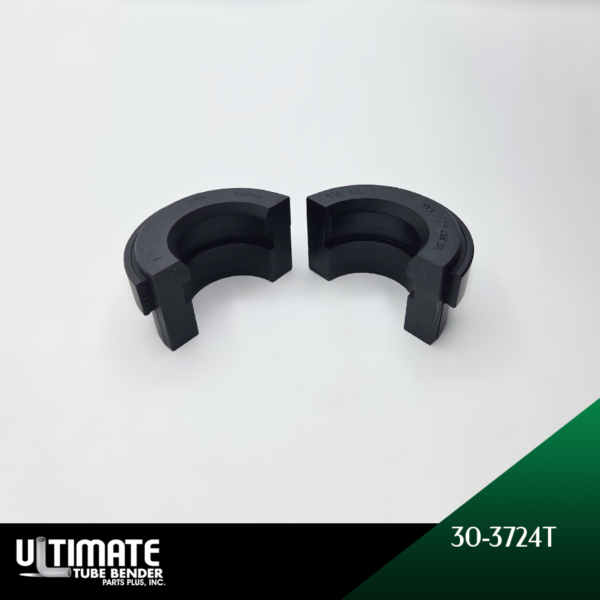

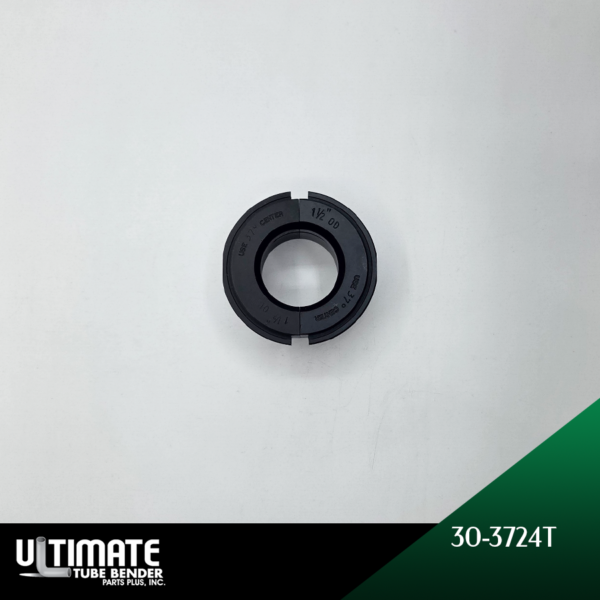

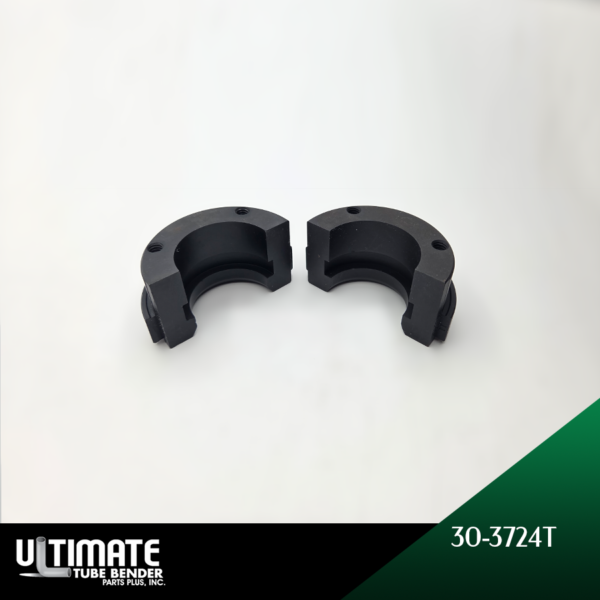

This T Sleeve Flare Die is machined to shape a 37° flare on 1-1/2″ (1.500″ decimal) tube, giving a smooth, concentric sealing surface for flared fittings. With a die thickness of 1-1/2″, it holds the tube square through the forming stroke, which keeps flare depth and angle consistent from part to part. It is built for tube end forming shops that need repeatable results across long production runs, whether the application is hydraulic line assembly, fuel system fabrication, or general pipe end finishing. It is part of the 30-3700T series; compatible with 2C, 2CP, 2CPV, 3CPV w/ die adaptor tube end forming machines, and is a good fit for shops standardizing their pipe end finishing tooling.
Series: 30-3700T
Tool Diameter – H: 3″
Tube Outside Diameter (TOD) -Fractional Inches: 1-1/2″
Tube Outside Diameter (TOD) – Decimal Inches: 1.500
Degrees: 37°
Thickness (T): 1-1/2″
Grip (G) Decimal Inches: .425
Machine Compatibility: 2C, 2CP, 2CPV, 3CPV w/ die adaptor
| Tool OD | Leonard Precision | Clarke & Lewis | PHI | Conrac | Dew Machine Tool |
|---|---|---|---|---|---|
| 1/8" | 30-3702T | CL30-3702T | 800004-001 | 30-3702T | DEW 30-3702T |
| 3/16" | 30-3703T | CL30-3703T | 800004-002 | 30-3703T | DEW 30-3703T |
| 1/4" | 30-3704T | CL30-3704T | 800004-003 | 30-3704T | DEW 30-3704T |
| 5/16" | 30-3705T | CL30-3705T | 800004-004 | 30-3705T | DEW 30-3705T |
| 3/8" | 30-3706T | CL30-3706T | 800004-005 | 30-3706T | DEW 30-3706T |
| 7/16" | 30-3707T | CL30-3707T | 800004-006 | 30-3707T | DEW 30-3707T |
| 1/2" | 30-3708T | CL30-3708T | 800004-008 | 30-3708T | DEW 30-3708T |
| 5/8" | 30-3710T | CL30-3710T | 800004-008 | 30-3710T | DEW 30-3710T |
| 3/4" | 30-3712T | CL30-3712T | 800004-009 | 30-3712T | DEW 30-3712T |
| 7/8" | 30-3714T | CL30-3714T | 800004-110 | 30-3714T | DEW 30-3714T |
| 1" | 30-3716T | CL30-3716T | 800004-011 | 30-3716T | DEW 30-3716T |
| 1 1/8" | 30-3718T | CL30-3718T | 800004-012 | 30-3718T | DEW 30-3718T |
| 1 1/4" | 30-3720T | CL30-3720T | 800004-013 | 30-3720T | DEW 30-3720T |
| 1 3/8" | 30-3722T | CL30-3722T | 800004-014 | 30-3722T | DEW 30-3722T |
| 1 1/2" | 30-3724T | CL30-3724T | 800004-015 | 30-3724T | DEW 30-3724T |
| 1 3/4" | 30-3728T | CL30-3728T | 800004-016 | 30-3728T | DEW 30-3728T |
| 2" | NA | CL30-3732T | NA | NA | NA |
