Flare Punch – 105148 Series – 245-028 | 0.125 TOD
Flare Punch for 1/8″ (0.125″ decimal) tube, 028 wall, driving the forming stroke in double-flare and upset tube and pipe end-forming setups.
Out of stock
Brand:
Various
Model:
105148 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!
Built to mate with its corresponding die, this Flare Punch forms the upset or double-flare shape in 1/8″ (0.125″ decimal) tube, roughly 028 wall thickness,. Getting this step right sets up the tube wall so the finished flare has enough material to seal properly. It is a common wear item in tube end forming tooling kits and is worth replacing at the first sign of galling or rounded edges. It is part of the 105148 series; compatible with DF tube end forming machines, and is a good fit for shops standardizing their tube end forming tooling.
Series: 105148
Tube Outside Diameter (TOD) -Fractional Inches: 1/8″
Tube Outside Diameter (TOD) – Decimal Inches: 0.125

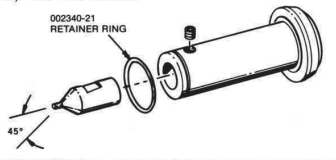

Degrees: 45°
Tip No: 245
Wall Thickness: 028
Machine Compatibility: DF
