Flare Punch 37? 101851 Series – 237-028 | 0.125 TOD
Flare Punch matched to 1/8″ (0.125″ decimal) OD tubing, 028 wall, built for clean upset or double-flare forming.
Out of stock
Brand:
Various
Model:
101851 Series
Condition:
Not sure what Machine, Parts, or Tooling you need? We can help!

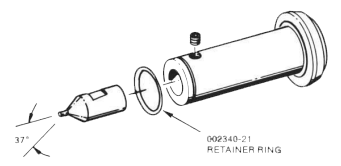

Built to mate with its corresponding die, this Flare Punch forms the upset or double-flare shape in 1/8″ (0.125″ decimal) tube, roughly 028 wall thickness,. Getting this step right sets up the tube wall so the finished flare has enough material to seal properly. It is a common wear item in pipe end finishing tooling kits and is worth replacing at the first sign of galling or rounded edges. It is part of the 101851 series; compatible with DF tube end forming machines, and is a good fit for shops standardizing their pipe end finishing tooling.
Series: 101851
Tube Outside Diameter (TOD) -Fractional Inches: 1/8″
Tube Outside Diameter (TOD) – Decimal Inches: 0.125
Degrees: 37°
Tip No: 237
Wall Thickness: 028
Machine Compatibility: DF
